Space Vector Control of Permanent Magnet Synchronous Motor Based on 60^o Coordinate System

Abstract:

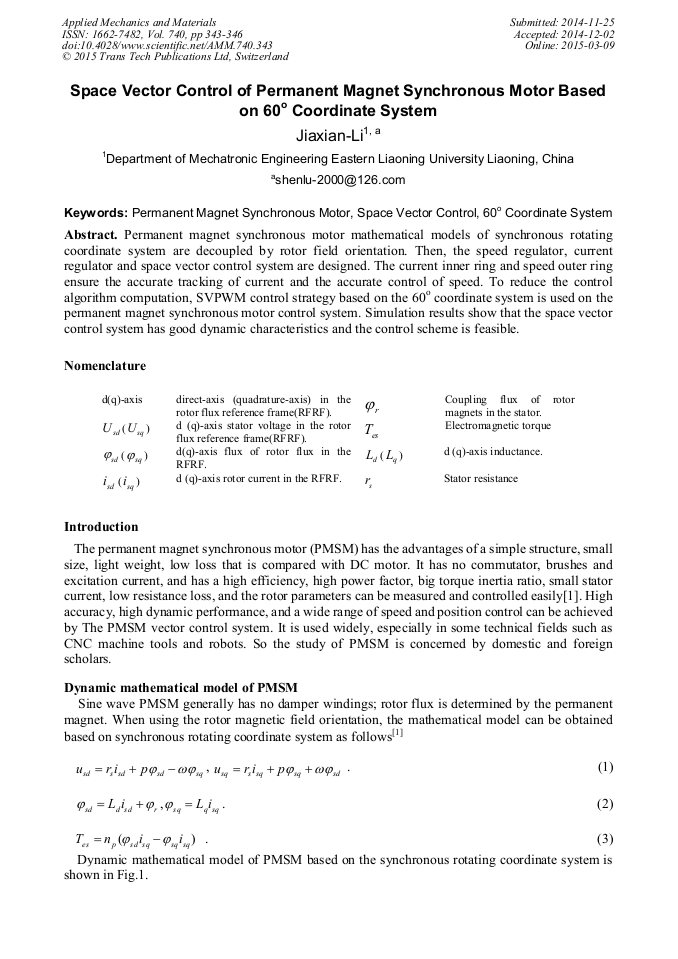

Permanent magnet synchronous motor mathematical models of synchronous rotating coordinate system are decoupled by rotor field orientation. Then, the speed regulator, current regulator and space vector control system are designed. The current inner ring and speed outer ring ensure the accurate tracking of current and the accurate control of speed. To reduce the control algorithm computation, SVPWM control strategy based on the 60^o coordinate system is used on the permanent magnet synchronous motor control system. Simulation results show that the space vector control system has good dynamic characteristics and the control scheme is feasible.
