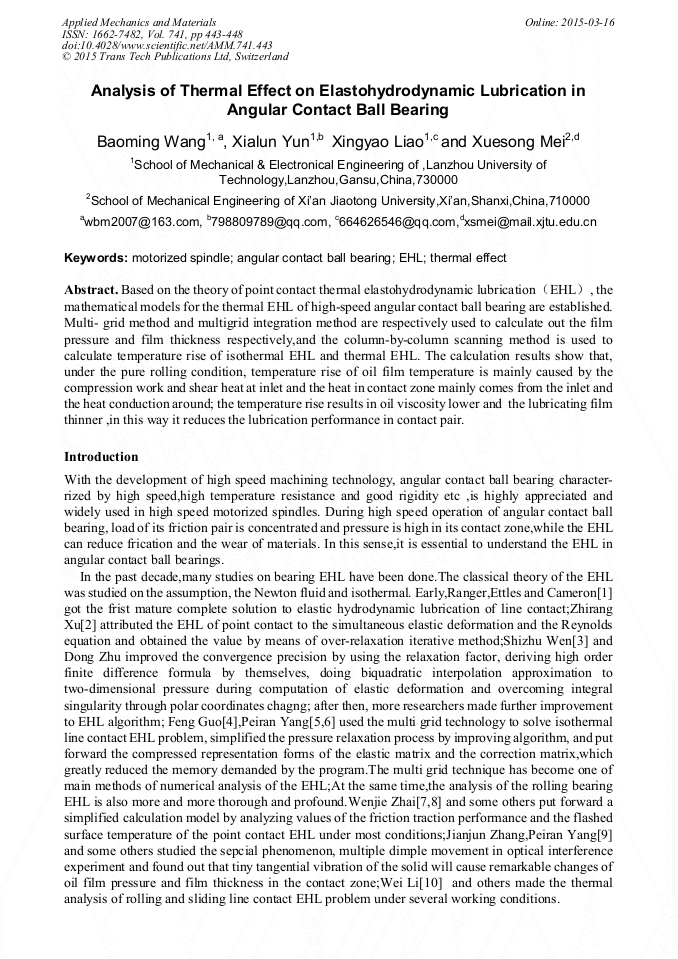

Analysis of Thermal Effect on Elastohydrodynamic Lubrication in Angular Contact Ball Bearing

Abstract:

Based on the theory of point contact thermal elastohydrodynamic lubrication (EHL),the mathematical models for the thermal EHL of high-speed angular contact ball bearing are established. Multi-grid method and multigrid integration method are respectively used to calculate out the film pressure and film thickness respectively,and the column-by-column scanning method is used to calculate temperature rise of isothermal EHL and thermal EHL. The calculation results show that, under the pure rolling condition, temperature rise of oil film temperature is mainly caused by the compression work and shear heat at inlet and the heat in contact zone mainly comes from the inlet and the heat conduction around; the temperature rise results in oil viscosity lower and the lubricating film thinner ,in this way it reduces the lubrication performance in contact pair.

• Periodical: Applied Mechanics and Materials (Volume 741)
• Pages: 443-448
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.741.443
• Online since: March 2015
• Authors: Bao Ming Wang, Xia Lun Yun, Xing Yao Liao, Xue Song Mei
• Keywords: Angular Contact Ball Bearing, EHL, Motorized Spindle, Thermal Effect

References

[1] Ranger A.P. ，Ettles，C，M.M. and Cameron，A. Proc. Roy. Soc. Lon, A346，(1975).

[2] Zhirang Xu: Journal of East China Institute of Metallurgy. 7(1990), p.50 in Chinese.

[3] Shizhu Wen and Dong Zhu: Test and Research. p.9 in Chinese.

[4] Feng Guo and Peiran Yang: Journal of Qingdao Institute of Architecture and Engineerin- g. 19(1988), p.51 in Chinese.

[5] Qingen Meng and Peiran Yang: Lubricating and sealing. 3(2006), p.91 in Chinese.

[6] Yan Xun and Peiran Yang: Tribology. 29(2009), p.612 in Chinese.

[7] Wenjie Zhai and Pengshun Zhang: Journal of Harbin Insititute of Technology. 2001, p.17 in Chinese.

[8] Wenjie Zhai and Dayong Bao: Journal of Harbin Insititute of Technology. 26(1994), p.79 in Chinese.

[9] Jianjun Zhang and Peirang Yang: Progress in natural science. 17(2007), p.930 in Chinese.

[10] Wei Li and Zhiquan Liu: Journal of Heilongjiang Mining College. 5(1995), p.29 in Chinese.

[11] Weiping Wang and Ping Huang: Tribology. 28(2008), p.240 in Chinese.

[12] Jianshe Wang: Optics and Precision Engineering. 7(1997), p.75 in Chinese.

[13] M. Carli and K.J. shrif: Tribology International. 42(2009), p.517.

[14] Junsun and Jianglin Liu: Thechnical Sessions-proceedings of CIST2008 & ITSFTOMM2008 Beijing China.

[15] Jianbin Luo, Shizhu Wen and Ping Huang: Tribology. 26(1994), p.2 in Chinese.
