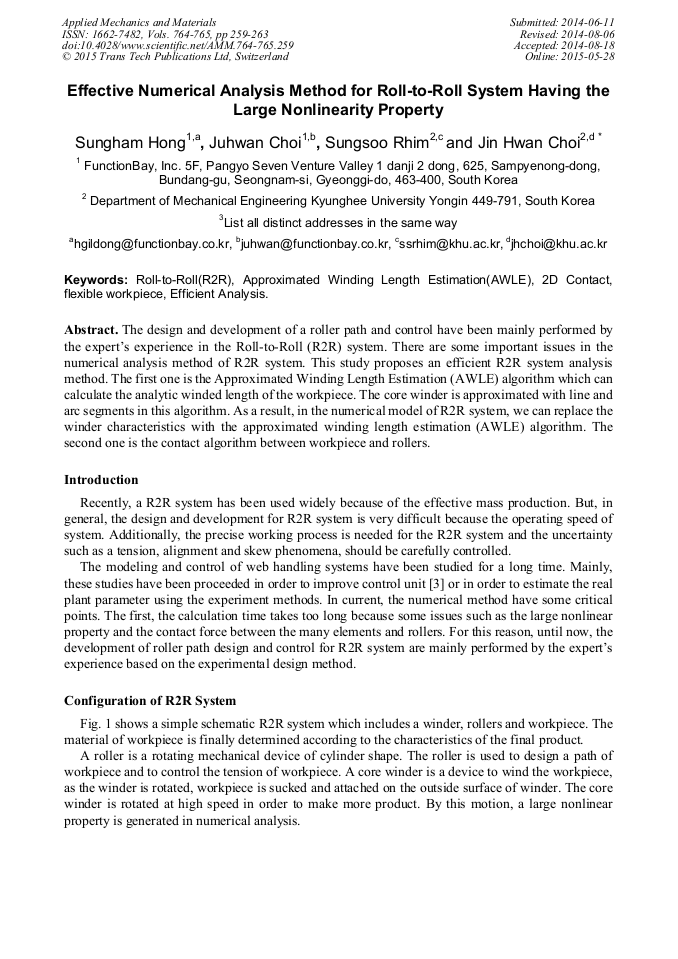

Effective Numerical Analysis Method for Roll-to-Roll System Having the Large Nonlinearity Property

Abstract:

In the Roll-to-Roll (R2R) system, the design and development for a roller path and control system are mainly performed by the expert’s experience. There are some important issues in the numerical analysis method of R2R system. This study proposes an efficient R2R system analysis method. The first one is the Approximated Winding Length Estimation (AWLE) algorithm which can calculate the analytic winded length of the workpiece. The core winder is approximated with line and arc segments in this algorithm. As a result, in the numerical model of R2R system, we can replace the winder characteristics with the approximated winding length estimation (AWLE) algorithm. The second one is the contact algorithm between workpiece and rollers. This contact algorithm must be stable and fast for precise analysis. The third one is the flexible workpiece model. The workpiece can be modeled by the finite elements. By implementing these some important issues, this paper proposes an efficient R2R system analysis method.

You might also be interested in these eBooks

Modern Design Technologies and Experiment for Advanced Manufacture and Industry

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 764-765)

Pages:

259-263

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.764-765.259

Citation:

Cite this paper

Online since:

May 2015

Authors:

Sung Ham Hong, Juh Wan Choi, Sung Soo Rhim, Jin Hwan Choi*

Keywords:

2D Contact, Approximated Winding Length Estimation(AWLE), Efficient Analysis, Flexible Workpiece, Roll-to-Roll(R2R)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] RecurDyn User manual on http: /eng. functionbay. co. kr.

Google Scholar

[2] Choi J, Ryu HS, Kim CW and Choi JH. An efficient and robust contact algorithm for a compliant contact force model between bodies of complex geometry, Multibody System Dynamics, 23 (2010) 99-120.

DOI: 10.1007/s11044-009-9173-3

Google Scholar

[3] Koc- , H., Knittel, D., de Mathelin, M., & Abba, G. (2002). Modelling and robust control of winding systems for elastic webs. IEEE Transactions on Control Systems Technology, 10(2), 197–208.

DOI: 10.1109/87.987065

Google Scholar
