Example of Tool with Two Numerical Controlled Axes

Article Preview

Abstract:

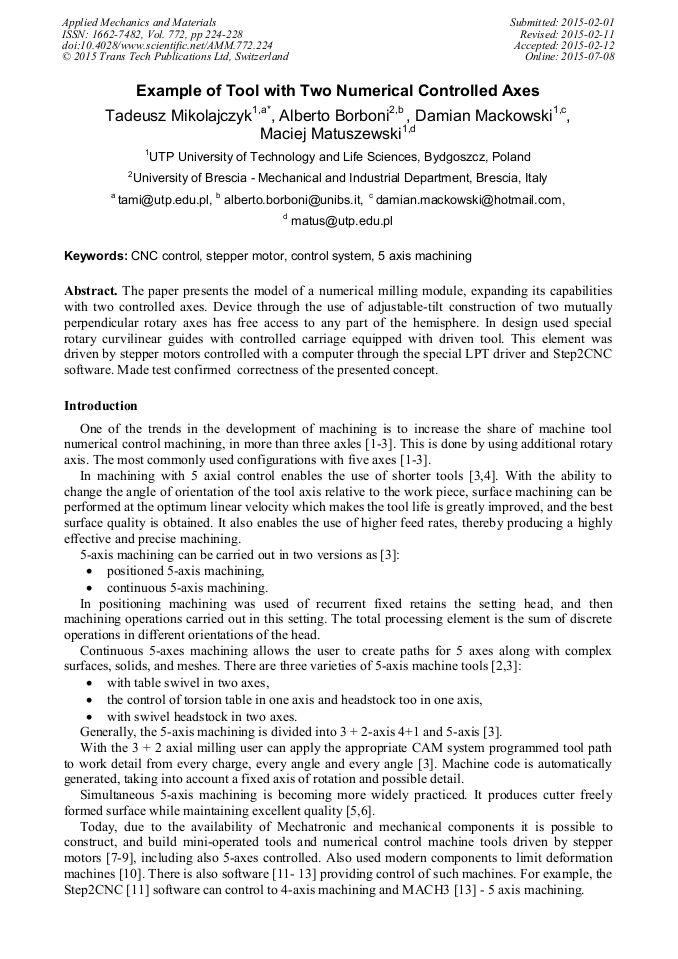

The paper presents the model of a numerical milling module, expanding its capabilities with two controlled axes. Device through the use of adjustable-tilt construction of two mutually perpendicular rotary axes has free access to any part of the hemisphere. It is driven by stepper motors controlled with a computer through the special LPT driver and Step2CNC software.
