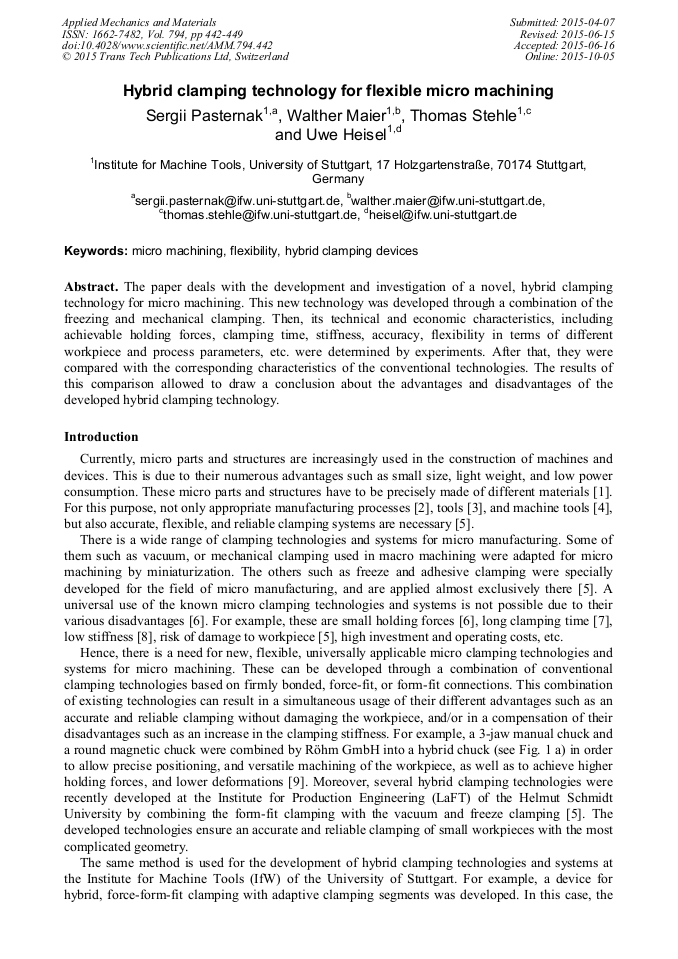

Hybrid Clamping Technology for Flexible Micro Machining

Abstract:

The paper deals with the development and investigation of a novel, hybrid clamping technology for micro machining. This new technology was developed through a combination of the freezing and mechanical clamping. Then, its technical and economic characteristics, including achievable holding forces, clamping time, stiffness, accuracy, flexibility in terms of different workpiece and process parameters, etc. were determined by experiments. After that, they were compared with the corresponding characteristics of the conventional technologies. The results of this comparison allowed to draw a conclusion about the advantages and disadvantages of the developed hybrid clamping technology.
