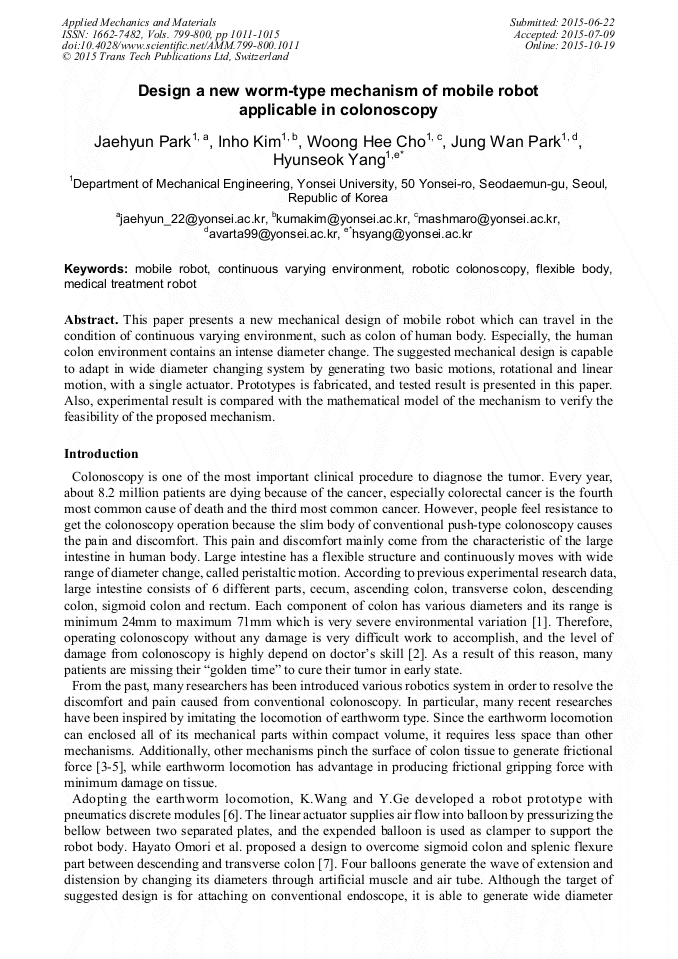

Design a New Worm-Type Mechanism of Mobile Robot Applicable in Colonoscopy

Abstract:

This paper presents a new mechanical design of mobile robot which can travel in the condition of continuous varying environment, such as colon of human body. Especially, the human colon environment contains an intense diameter change. The suggested mechanical design is capable to adapt in wide diameter changing system by generating two basic motions, rotational and linear motion, with a single actuator. Prototypes is fabricated, and tested result is presented in this paper. Also, experimental result is compared with the mathematical model of the mechanism to verify the feasibility of the proposed mechanism.

• Periodical: Applied Mechanics and Materials (Volumes 799-800)
• Pages: 1011-1015
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.799-800.1011
• Online since: October 2015
• Authors: Jae Hyun Park, In Ho Kim, Woong Hee Cho, Jung Wan Park, Hyun Seok Yang*
• Keywords: Continuous Varying Environment, Flexible Body, Medical Treatment Robot, Mobile Robot, Robotic Colonoscopy

References

[1] S. Sadahiro, T. Ohmura, Y. Yamada, T. Saito, Analysis of length and surface area of each segment of the large intestine according to age, sex, and physique, Surg Radiol Anatomy, Journal of Clinical Anatomy, 14(3), pp.251-257, April. (1992).

DOI: 10.1007/bf01794949

[2] Arjo J Loeve, Paul Breedveld, Mechanical analysis of insertion problems and pain during colonoscopy: Why highly skill-dependent colonoscopy routines are necessary in the first place, Can J Gastroenterol Vol 27. No 5, May. (2013).

DOI: 10.1155/2013/353760

[3] Abdolreza Esmaeli, New worm robot structure using the shape-memory alloy, Majlesi Journal of Electrical Engineering, Vol. 8, No. 2, June. (2014).

[4] Laehyun Kim, Prototype Modular Capsule Robots for Capsule Endoscopies, International Conference on Control, Automation and Systems (ICCAS), October. (2013).

DOI: 10.1109/iccas.2013.6703922

[5] Shohei Ueno, Kenjiro Takemurab, Micro inchworm robot using electro-conjugate fluid, Sensors and Actuators A: Physical, April. (2014).

DOI: 10.1016/j.sna.2014.04.032

[6] K. Wang, Y. Ge, A Micro Soft Robot Using Inner Air Transferring for Colonoscopy, International Conference on Robotics and Biomimetics, December. (2013).

DOI: 10.1109/robio.2013.6739688

[7] Hayato Omori, Takeshi Hayakawa, Taro Nakamura, Locomotion and turning patterns of a peristaltic crawling earthworm robot composed of flexible units, IEEE/RSJ International Conference on Intelligent Robots and Systems, September. (2008).

DOI: 10.1109/iros.2008.4650980

[8] Kathryn A Daltorio, AndrewDHorchler, Efficient worm-like locomotion: slip and control of soft-bodied peristaltic robots, Bio-inspiration & Bio-mimetics (IOP), August. (2013).

DOI: 10.1088/1748-3182/8/3/035003
