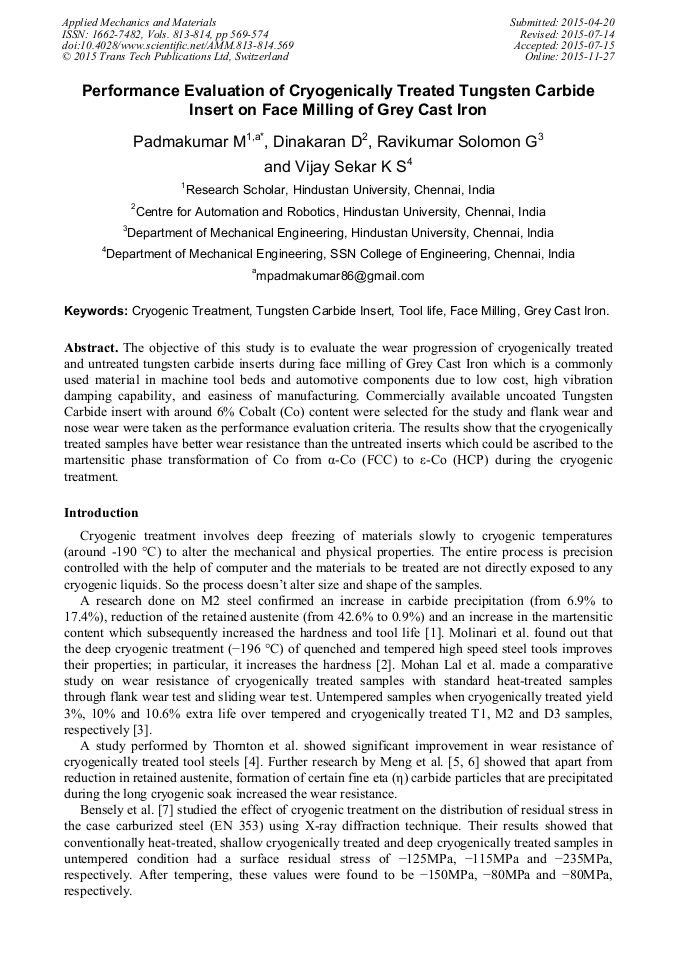

Performance Evaluation of Cryogenically Treated Tungsten Carbide Insert on Face Milling of Grey Cast Iron

Abstract:

The objective of this study is to evaluate the wear progression of cryogenically treated and untreated tungsten carbide inserts during face milling of Grey Cast Iron which is a commonly used material in machine tool beds and automotive components due to low cost, high vibration damping capability, and easiness of manufacturing. Commercially available uncoated Tungsten Carbide insert with around 6% Cobalt (Co) content were selected for the study and flank wear and nose wear were taken as the performance evaluation criteria. The results show that the cryogenically treated samples have better wear resistance than the untreated inserts which could be ascribed to the martensitic phase transformation of Co from α-Co (FCC) to ε-Co (HCP) during the cryogenic treatment.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 813-814)

Pages:

569-574

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.813-814.569

Citation:

Cite this paper

Online since:

November 2015

Authors:

Muthuswamy Padmakumar*, D. Dinakaran, Solomon G. Ravikumar, K.S. Vijay Sekar

Keywords:

Cryogenic Treatment, Face Milling, Grey Cast Iron, Tool Life, Tungsten Carbide Insert

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] R. Mahmudi, H.M. Ghasemi, H.R. Faradji, Effect of cryogenic treatments on the mechanical properties and wear behaviour of high-speed steel M2, Heat Treatment of Metals 27 (2000) 69-72.

DOI: 10.1179/174951508x446394

Google Scholar

[2] A. Molinari, M. Pellizzari, S. Gialanella, G. Straffelini, K.H. Stiasny, Effect of deep cryogenic treatment on the mechanical properties of tool steels, Journal of Materials Processing Technology 118 (2001) 350-355.

DOI: 10.1016/s0924-0136(01)00973-6

Google Scholar

[3] D. Mohan Lal, S. Renganarayanan, A. Kalanidhi, Cryogenic treatment to augment wear resistance of tool and die steels, Cryogenics 41 (2001) 149-155.

DOI: 10.1016/s0011-2275(01)00065-0

Google Scholar

[4] R. Thornton, T. Slatter, H. Ghadbeigi, Effects of deep cryogenic treatment on the dry sliding wear performance of ferrous alloys, Wear 305 (2013) 177-191.

DOI: 10.1016/j.wear.2013.06.005

Google Scholar

[5] F. Meng, K. Tagashira, R. Azuma, H. Sohma, Role of eta-carbide precipitations in the wear resistance improvements of Fe-12Cr-Mo-V-1. 4C tool steel by cryogenic treatment, ISIJ International 34 (1994) 205-210.

DOI: 10.2355/isijinternational.34.205

Google Scholar

[6] F. Meng, K. Tagashira, H. Sohma, Wear resistance and microstructure of cryogenic treated Fe-1. 4Cr-1C bearing steel, Scripta Metallurgica et Materialia 31 (1994) 865-868.

DOI: 10.1016/0956-716x(94)90493-6

Google Scholar

[7] A. Bensely, S. Venkatesh, D. Mohan Lal, G. Nagarajan, A. Rajadurai, K. Junik, Effect of cryogenic treatment on distribution of residual stress in case carburized En 353 steel, Materials Science and Engineering: A 479 (2008) 229-235.

DOI: 10.1016/j.msea.2007.07.035

Google Scholar

[8] S.S. Gill, R. Singh, H. Singh, J. Singh, Wear behaviour of cryogenically treated tungsten carbide inserts under dry and wet turning conditions, International Journal of Machine Tools and Manufacture 49 (2009) 256-260.

DOI: 10.1016/j.ijmachtools.2008.11.001

Google Scholar

[9] R.F. Barron, Cryogenic treatment of metals to improve wear resistance, Cryogenics 22 (1982) 409-414.

DOI: 10.1016/0011-2275(82)90085-6

Google Scholar

[10] H.S. Yang, W. Jun, S. Bao-Luo, L. Hao-Huai, G. Sheng-Ji, H. Si-Jiu, Effect of cryogenic treatment on the matrix structure and abrasion resistance of white cast iron subjected to destabilization treatment, Wear 261 (2006) 1150-1154.

DOI: 10.1016/j.wear.2006.03.021

Google Scholar

[11] S. Zhirafar, A. Rezaeian, M. Pugh, Effect of cryogenic treatment on the mechanical properties of 4340 steel, Journal of Materials Processing Technology 186 (2007) 298-303.

DOI: 10.1016/j.jmatprotec.2006.12.046

Google Scholar

[12] G. Prieto, J.E. Perez Ipiña, W.R. Tuckart, Cryogenic treatments on AISI 420 stainless steel: Microstructure and mechanical properties, Materials Science and Engineering: A 605 (2014) 236-243.

DOI: 10.1016/j.msea.2014.03.059

Google Scholar

[13] Widia, Milling Cutters, Drills & Tooling Systems Catalog, (2008).

Google Scholar

[14] American National Standard, Tool Life Testing With Single-Point Turning Tools, ANSI/ASME B94. 55M-1985, ASME, New York (1985).

Google Scholar
