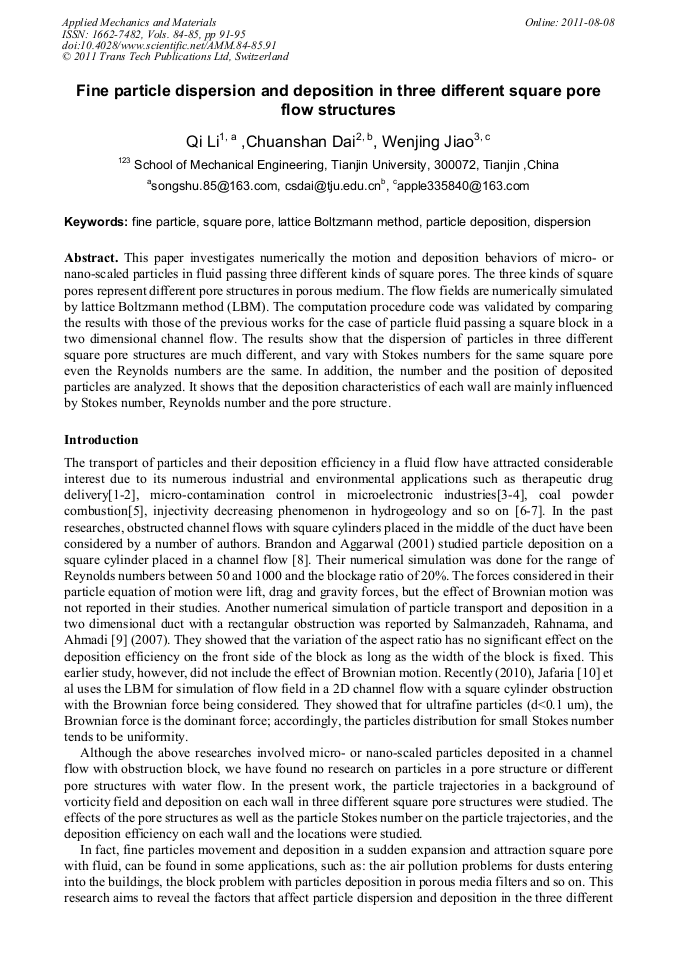

Fine Particle Dispersion and Deposition in Three Different Square Pore Flow Structures

Abstract:

This paper investigates numerically the motion and deposition behaviors of micro- or nano-scaled particles in fluid passing three different kinds of square pores. The three kinds of square pores represent different pore structures in porous medium. The flow fields are numerically simulated by lattice Boltzmann method (LBM). The computation procedure code was validated by comparing the results with those of the previous works for the case of particle fluid passing a square block in a two dimensional channel flow. The results show that the dispersion of particles in three different square pore structures are much different, and vary with Stokes numbers for the same square pore even the Reynolds numbers are the same. In addition, the number and the position of deposited particles are analyzed. It shows that the deposition characteristics of each wall are mainly influenced by Stokes number, Reynolds number and the pore structure.

• Periodical: Applied Mechanics and Materials (Volumes 84-85)
• Pages: 91-95
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.84-85.91
• Online since: August 2011
• Authors: Qi Li, Chuan Shan Dai, Wen Jing Jiao
• Keywords: Dispersion, Fine Particles, Lattice Boltzmann Method, Particle Deposition, Square Pore

References

[1] B. Asghariana, O.T. Pricea and W. Hofmann: Prediction of particle deposition in the human lung using realistic models of lung ventilation. Journal of Aerosol Science Vol. 37 (2006), pp.1209-1221.

DOI: 10.1016/j.jaerosci.2006.01.002

[2] B. Asgharian, W. Hofmann and R. Bergmann: Particle deposition in a multiple-path model of the human lung. Aerosol Science and Technology Vol. 34 (2001), p.332–339.

DOI: 10.1080/02786820119122

[3] D.C. Walsh and J.I.T. Stenhouse: The effect of particle size, charge, and composition on the loading characteristics of an electrically active fibrous filters material. Aerosol Sci. Vol. 28 (1997) p.307–321.

DOI: 10.1016/s0021-8502(96)00434-x

[4] W. Prosta, F.E. Kruisb, F. Ottenb et al: Monodisperse aerosol particle deposition Prospects for nanoelectronics. Microelectronic Engineering Vol. 41-42 (1998), pp.535-538.

DOI: 10.1016/s0167-9317(98)00125-7

[5] Roberta Licheri, Roberto Orrù, Giacomo Cao et al: Self-propagating combustion synthesis and plasma spraying deposition of TiC–Fe powders. Ceramics International Vol. 29(2003), pp.519-526.

DOI: 10.1016/s0272-8842(02)00196-7

[6] Zhou Qiangtai: Two phase flow and heat exchange. Hydraulic Power Press Publishing, Beijing, China (1990).

[7] J.W. Cleaver and B.A. Yates: Sublayer model for the deposition of particles from a turbulent flow Chemical Engineering Science Vol. 30 (1975), p.983–992.

DOI: 10.1016/0009-2509(75)80065-0

[8] Brandon and Aggarwal. A numerical investigation of particle deposition on a square cylinder placed in a channel flow. Aerosol Science and Technology Vol. 34 (2001), p.340–352.

DOI: 10.1080/02786820121279

[9] Salmanzadeh, Rahnama and Ahmadi: Particle transport and deposition in a duct flow with a rectangular obstruction. Particulate Science and Technology Vol. 25 (2007), p.401–412.

DOI: 10.1080/02726350701487181

[10] S. Jafaria, M. Salmanzadeha, M. Rahnama et al: Investigation of particle dispersion and deposition in a channel with a square cylinder obstruction using the Lattice Boltzmann method. Journal of Aerosol Science Vol. 41 (2010), p.198–206.

DOI: 10.1016/j.jaerosci.2009.10.005

[11] Tseng Yu-Heng, H. Joel and Ferziger. A ghost-cell immersed boundary method for flow in complex geometry. Journal of Computational Physics Vol. 192 (2003), p.593–623.

DOI: 10.1016/j.jcp.2003.07.024

[12] Christian Huber, Andrea Parmigiani, Bastien Chopard et al: Lattice Boltzmann model for melting with natural convection. International Journal of Heat and Fluid Flow Vol. 29 (2008), p.1469–1480.

DOI: 10.1016/j.ijheatfluidflow.2008.05.002

[13] A. Li, G. Ahmadi, R.G. Bayer et al: Aerosol particle deposition in an obstructed turbulent duct flow. Journal of Aerosol Science Vol. 25 (1994), p.91–112.

DOI: 10.1016/0021-8502(94)90184-8
