Determination of Material Removal Rate and Radial Overcut in Electro Discharge Machining of AISI 304 Using Dimensional Analysis

Abstract:

Electro discharge machining (EDM) is a most commonly used machining process among all the non-conventional machining process which removes materials via electrical and thermal energy. The primary goal of EDM is to get more material removal rate (MRR) with lower radial overcut (ROC). Normally, the responses are predicted using empirical models which are limited to only machining parameters and they do not consider the effects of work material properties on the process performance. Therefore in this study, a model has been developed including machining parameter as well as thermo-physical property of work material. In this investigation, a semi-empirical model has been established for the material removal rate (MRR) and radial overcut (ROC) by adopting the dimensional analysis technique. Dimensional analysis is a technique of dimensions and a mathematical technique that deals with the physical quantities concerned with the experiments to formulate a model for the response in terms of response control parameters as well as some physical properties of the materials. Buckingham’s л theorem is a main theorem in dimensional analysis and it is a signification of Rayleigh’s method of dimensional analysis. The theory is applied to gather each and every variable presenting the problem in a number of the dimensionless products. For this study, the thermo-physical properties viz. density, thermal conductivity and coefficient of thermal expansion and machining parameters like peak current, pulse on time, gap voltage and duty cycle are considered as input factor. AISI 304 stainless steel used as work material and Tungsten carbide is used as tool material for this investigation.

You might also be interested in these eBooks

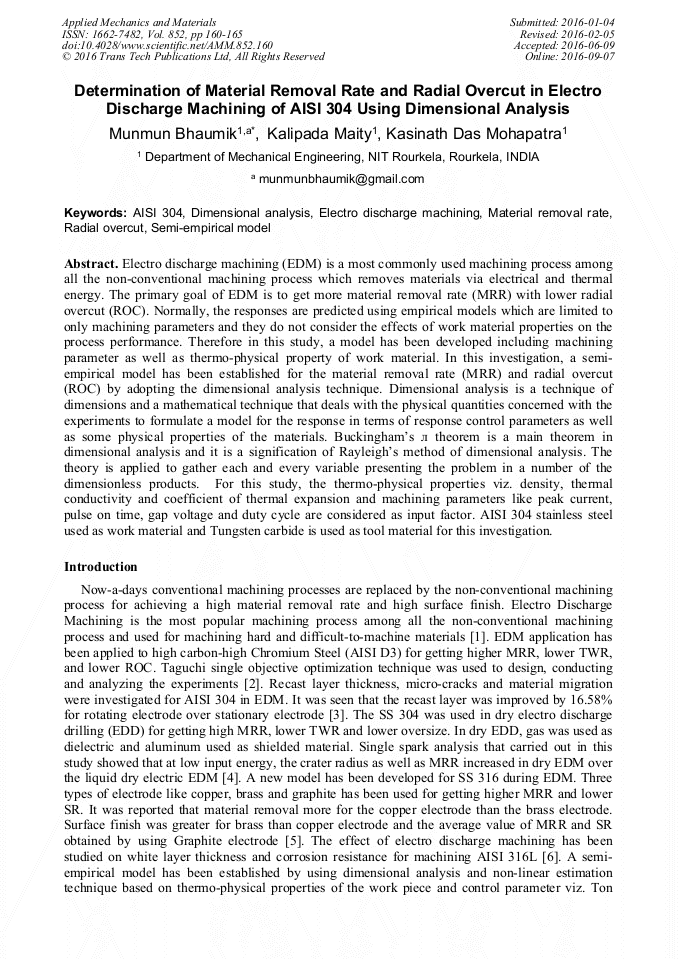

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 852)

Pages:

160-165

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.852.160

Citation:

Cite this paper

Online since:

September 2016

Authors:

Munmun Bhaumik*, Kali Pada Maity, Kasinath Das Mohapatra

Keywords:

AISI 304, Dimensional Analysis, Electro Discharge Machining (EDM), Material Removal Rate, Radial Overcut, Semi Empirical Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] C.J. Luis, I. Puertas, G. Villa, Material removal rate and electrode wear study on the EDM of silicon carbide, J. Mater. Process. Tech. 164(16) (2005) 889- 896.

DOI: 10.1016/j.jmatprotec.2005.02.045

Google Scholar

[2] P. R. Kubade, An Experimental Investigation of Electrode Wear Rate (EWR), Material Removal Rate (MRR) and Radial Overcut (ROC) in EDM of High Carbon-High Chromium Steel (AISI D3), Int. J. Eng. Adv. Tech. (IJEAT). 1(5) (2012) 135-140.

Google Scholar

[3] A. Iqbal, A.K.M., A.A. Khan, Influence of Process Parameters on Electrical Discharge Machined Job Surface Integrity, Am. J. Eng. Appl. Sci. 3(2) (2010) 396-402.

DOI: 10.3844/ajeassp.2010.396.402

Google Scholar

[4] P. Goninan, S.S. Joshi, Experimental characterization of material removal in dry electrical discharge drilling, Int. J. Mach. Tool. Manu. 50 (2010) 431–443.

Google Scholar

[5] S. Choudhary, K. Kant, P. Saini, Analysis of MRR and SR with Different Electrode for SS 316 on Die-Sinking EDM using Taguchi Technique, Global J. Res. Eng. Mech. Mech. Eng, 13(3) (2013) 14-21.

Google Scholar

[6] H. Sidhom, F. Ghanem, T. Amadou, G. Gonzalez, C. Braham, Effect of electro discharge machining (EDM) on the AISI316L SS white layer microstructure and corrosion resistance, Int. J. Adv. Manuf. Tech. 65 (2013) 141–153.

DOI: 10.1007/s00170-012-4156-6

Google Scholar

[7] N. G. Patil, P.K. Brahmankar, Determination of material removal rate in wire, electro-discharge machining of metal matrix composites using dimensional analysis, Int. J. Adv. Manuf. Tech. 51 (2010) 599–610.

DOI: 10.1007/s00170-010-2633-3

Google Scholar

[8] G. Talla, D.K. Sahoo, S. Gangopadhyay, C.K. Biswas, Modeling and multi-objective optimization of powder mixed electrical discharge machining process of aluminum/alumina metal matrix composite, Eng. Sci. Tech. (2015) 1-5.

DOI: 10.1016/j.jestch.2015.01.007

Google Scholar

[9] K.P. Maity, D.K. Bagal, Effect of process parameters on cut quality of stainless steel on plasma arc cutting using hybrid approach, Int. J. Adv. Manuf. Tech. (2014).

DOI: 10.1007/s00170-014-6552-6

Google Scholar
