The Design and FEM Analysis of End-Face Tooth of Coupling Flange

Abstract:

Article Preview

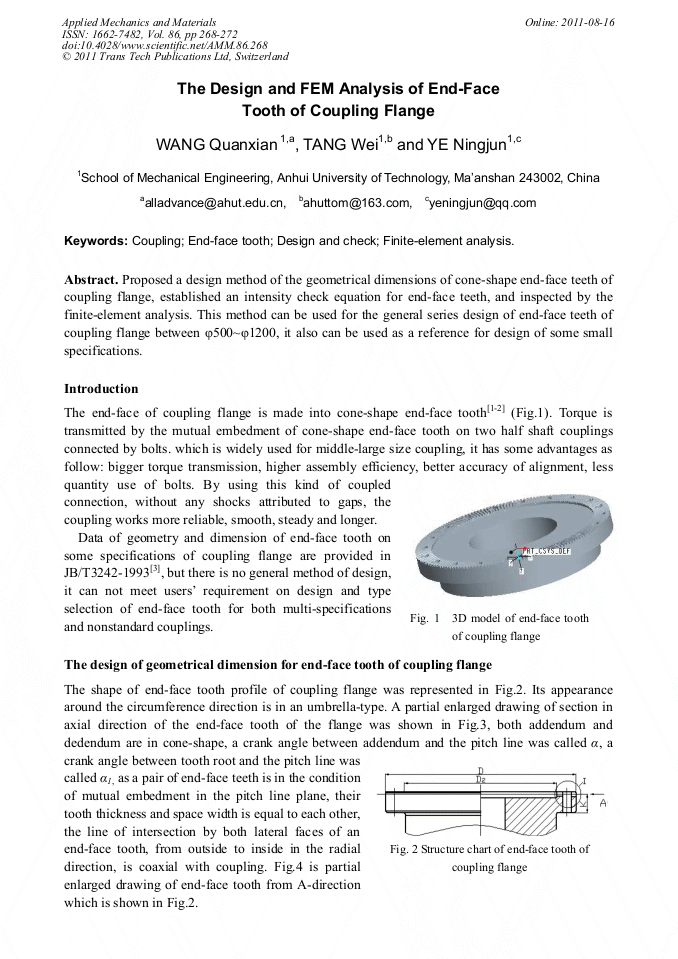

Proposed a design method of the geometrical dimensions of cone-shape end-face teeth of coupling flange, established an intensity check equation for end-face teeth, and inspected by the finite-element analysis. This method can be used for the general series design of end-face teeth of coupling flange between φ500~φ1200, it also can be used as a reference for design of some small specifications.
