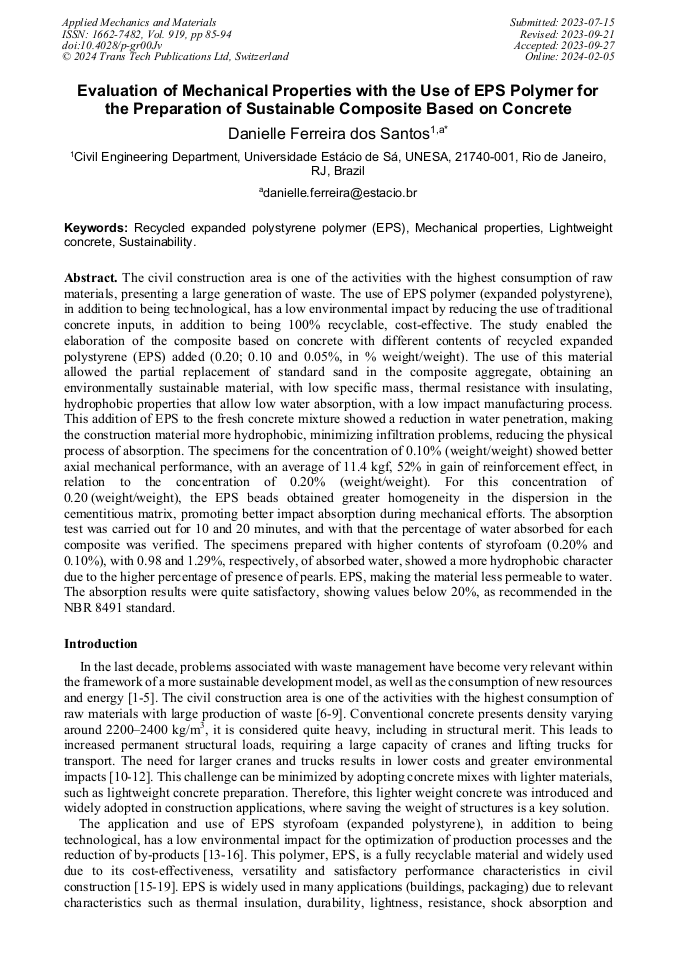

Evaluation of Mechanical Properties with the Use of EPS Polymer for the Preparation of Sustainable Composite Based on Concrete

Abstract:

The civil construction area is one of the activities with the highest consumption of raw materials, presenting a large generation of waste. The use of EPS polymer (expanded polystyrene), in addition to being technological, has a low environmental impact by reducing the use of traditional concrete inputs, in addition to being 100% recyclable, cost-effective. The study enabled the elaboration of the composite based on concrete with different contents of recycled expanded polystyrene (EPS) added (0.20; 0.10 and 0.05%, in % weight/weight). The use of this material allowed the partial replacement of standard sand in the composite aggregate, obtaining an environmentally sustainable material, with low specific mass, thermal resistance with insulating, hydrophobic properties that allow low water absorption, with a low impact manufacturing process. This addition of EPS to the fresh concrete mixture showed a reduction in water penetration, making the construction material more hydrophobic, minimizing infiltration problems, reducing the physical process of absorption. The specimens for the concentration of 0.10% (weight/weight) showed better axial mechanical performance, with an average of 11.4 kgf, 52% in gain of reinforcement effect, in relation to the concentration of 0.20% (weight/weight). For this concentration of 0.20 (weight/weight), the EPS beads obtained greater homogeneity in the dispersion in the cementitious matrix, promoting better impact absorption during mechanical efforts. The absorption test was carried out for 10 and 20 minutes, and with that the percentage of water absorbed for each composite was verified. The specimens prepared with higher contents of styrofoam (0.20% and 0.10%), with 0.98 and 1.29%, respectively, of absorbed water, showed a more hydrophobic character due to the higher percentage of presence of pearls. EPS, making the material less permeable to water. The absorption results were quite satisfactory, showing values ​​below 20%, as recommended in the NBR 8491 standard.

• Periodical: Applied Mechanics and Materials (Volume 919)
• Pages: 85-94
• DOI: https://doi.org/10.4028/p-gr00Jv
• Online since: February 2024
• Authors: Danielle Ferreira dos Santos*
• Keywords: Lightweight Concrete, Mechanical Properties, Recycled Expanded Polystyrene Polymer (EPS), Sustainability

References

[1] S. Nižetić, N. Djilali, A. Papadopoulos, J.J.P.C. Rodrigues, Smart technologies for promotion of energy efficiency, utilization of sustainable resources and waste management, Journal of Cleaner Production. 231 (2019), 565-591.

DOI: 10.1016/j.jclepro.2019.04.397

[2] S. Liuzzi, C. Rubino, P. Stefanizzi, A. Petrella, A. Boghetich, C. Casavola, G. Pappalettera, Hygrothermal properties of clayey plasters with olive fibers, Constr. Build. Mater. 158 (2018), 24-32.

DOI: 10.1016/j.conbuildmat.2017.11.117

[3] L. Coppola, T. Bellezze, A. Belli, M. C. Bignozzi, F. Bolzoni, A. Brenna, M. Cabrini, S. Candamano, M. Cappai, D. Caputo, Binders alternative to Portland cement and waste management for sustainable construction-part 1, J. Appl. Biomater. Funct. Mater. 16 (2018), 186–202.

[4] L. Jing, K. Y. Christopher, Strength improvement of strain-hardening cementitious composites with ultrahigh-volume fly ash, J Mater Civ Eng. 29 (2017), 8.

DOI: 10.1061/(asce)mt.1943-5533.0001987

[5] R. Franz, F. Welle, Recycling of Post-Consumer Packaging Materials into New Food Packaging Applications—Critical Review of the European Approach and Future Perspectives, Sustainability. 14 (2022), 824.

DOI: 10.3390/su14020824

[6] C. Bulei, M. P. Todor, T. Heput, I. Kiss, Directions for material recovery of used tires and their use in the production of new products intended for the industry of civil construction and pavements, IOP Conference Series: Materials Science and Engineering. 294 (2018), 012064.

DOI: 10.1088/1757-899x/294/1/012064

[7] A. Luciano, L. Cutaia, P. Altamura, E. Penalvo, Critical issues hindering a widespread construction and demolition waste (CDW) recycling practice in EU countries and actions to undertake: The stakeholder's perspective, Sustainable Chemistry and Pharmacy, 29 (2022), 100745.

DOI: 10.1016/j.scp.2022.100745

[8] Plastics Europe. Plastics Europe—The Facts 2018; EPRO Report; Plastics Europe: Frankfurt, Germany. (2018).

[9] P. Bakshi, A. Pappu, M. K. Gupta, A review on calcium-rich industrial wastes: a sustainable source of raw materials in India for civil infrastructure—opportunities and challenges to bond circular economy, Journal of Material Cycles and Waste Management. 24 (2022), 49–62.

DOI: 10.1007/s10163-021-01295-4

[10] M. A. Rajaeifar, R. Abdi, M. Tabatabaei, Expanded polystyrene waste application for improving biodiesel environmental performance parameters from life cycle assessment point of view. Renew Sustain, Energy Rev. 74 (2017), 278–298.

DOI: 10.1016/j.rser.2017.02.032

[11] T. Maharana, Y. S. Negi, B. Mohanty, Review article: Recycling of polystyrene, Polym. Plast. Technol. Eng. 46 (2007), 729–736.

DOI: 10.1080/03602550701273963

[12] B. Herki, Combined e_ects of densified polystyrene and unprocessed fly ash on concrete engineering properties, Buildings. 7 (2017), 77.

DOI: 10.3390/buildings7030077

[13] R. M. Andrew, Global CO2 emissions from cement production, 1928–2017, Earth Syst. Sci. Dat. 10 (2018), 2213–2239.

DOI: 10.5194/essd-10-2213-2018

[14] M. A. Mollehuara, A. R. Cuadrado, V. L. Vidal, S. D. Camargo, Systematic review: Analysis of the use of D-limonene to Reduce the Environmental Impact of Discarded Expanded Polystyrene (EPS), OP Conf. Ser.: Earth Environ. Sci.. 1048 (2022), 012003.

DOI: 10.1088/1755-1315/1048/1/012003

[15] T. Ghoshal, P. R. Parmar, T. Bhuyan, D. Bandyopadhyay, Polystyrene Foams: Materials, Technology, and Applications, Polymeric Foams: Fundamentals and Types of Foams, 1 (2023), 121-141.

[16] J. Ankesh, S. Goyal, Properties of expanded polystyrene (EPS) and its environmental effects, Advances and Applications in Mathematical Sciences. 20 (2021), 2151-2162.

[17] L. Haibo, Experimental study on preparation of fly ash polystyrene new insulation building material, Chem. Eng. Trans 59 (2017), 295–300.

[18] R. Patiño-Herrera, R. Catarino-Centeno, G. González-Alatorre, A. G. Goicochea, E. Pérez, Enhancement of the hydrophobicity of recycled polystyrene films using a spin coating unit, J. Appl. Polym. Sci. 134 (2017), 45365.

DOI: 10.1002/app.45365

[19] H. Kim, S. Park, S. Lee, Acoustic performance of resilient materials using acrylic polymer emulsion resin, Materials. 9 (2016), 592.

DOI: 10.3390/ma9070592

[20] D. M. K. W. Dissanayake, C. Jayasinghe, M. T. R. Jayasinghe, A comparative embodied energy analysis of a house with recycled expanded polystyrene (EPS) based foam concrete wall panels, Energy Build. 135 (2017), 85–94.

DOI: 10.1016/j.enbuild.2016.11.044

[21] B. A. Herki, J. M. Khatib, Valorisation of waste expanded polystyrene in concrete using a novel recycling technique, Eur. J. Environ. Civ. Eng. 21 (2017), 1384–1402.

DOI: 10.1080/19648189.2016.1170729

[22] D. S. Babu, K. G. Babu, W. E. Tiong-Huan, Efect of polystyrene aggregate size on strength and moisture migration characteristics of lightweight concrete, Cem. Concr. Compos. 28 (2006), 520–527.

DOI: 10.1016/j.cemconcomp.2006.02.018

[23] P. L. N. Fernando, M. T. R. Jayasinghe, C. Jayasinghe, Structural feasibility of Expanded Polystyrene (EPS) based lightweight concrete sandwich wall panels, Constr. Build. Mater. 139 (2017), 45–51.

DOI: 10.1016/j.conbuildmat.2017.02.027

[24] M. Najjar, K. Figueiredo, A. W.A. Hammad, A. Haddad, Integrated optimization with building information modeling and life cycle assessment for generating energy efficient buildings. Applied Energy. 250 (2019), 1366-1382.

DOI: 10.1016/j.apenergy.2019.05.101

[25] P. Moran, J. O'Connell, J. Goggins, Sustainable energy efficiency retrofits as residenial buildings move towards nearly zero energy building (NZEB) standards, Energy and Buildings, 211 (2020), 109816.

DOI: 10.1016/j.enbuild.2020.109816

[26] W. A. Friess, K. Rakhshan, A review of passive envelope measures for improved building energy efficiency in the UAE, Renewable and Sustainable Energy Reviews. 72 (2017), 485-496.

DOI: 10.1016/j.rser.2017.01.026

[27] M. Qin, B. T. Chew, Y. H. Yau, Z. Yang, X. Han, L. Chang, Y. Liu, S. Pan, Characteristic analysis and improvement methods of the indoor thermal environment in post-disaster temporary residential buildings: A systematic review, Building and Environment. 235 (2023), 110198.

DOI: 10.1016/j.buildenv.2023.110198

[28] R. Ma, Z. Cao, T. Jiang, Y. Wang, S. Shi, W. Li, Y. Zhao, N. Zhong, D. Shi, X. Wu, Study of the Compressive Properties of Heavy Calcium Carbonate-Reinforced Epoxy Composite Spheres (HC-R-EMS) Composite Lightweight Concrete, Polymers. 15 (2023), 1278.

DOI: 10.3390/polym15051278

[29] P. F. B. Becker, C. Effting, A. Schackow, Lightweight thermal insulating coating mortars with aerogel, EPS, and vermiculite for energy conservation in buildings, Cement and Concrete Composites. 125 (2022), 104283.

DOI: 10.1016/j.cemconcomp.2021.104283

[30] T. Jiang, Y. Wang, S. Shi, N. Yuan, R. Ma, X. Wu, D. Shi, K. Sun, Y. Zhao, W. Li, J. Yu, Compressive behavior of lightweight concrete using aerogel-reinforced expanded polystyrene foams, Case Studies in Construction Materials. 17 (2022), e01557.

DOI: 10.1016/j.cscm.2022.e01557

[31] A. Kaya, F. Kar, Properties of concrete containing waste expanded polystyrene and natural resin, Construction and Building Materials. 105 (2016), 572-578.

DOI: 10.1016/j.conbuildmat.2015.12.177

[32] A. Ellouze, D. Jesson, R. B. Cheikh. The effect of thermal treatment on the properties of expanded polystyrene, Polymer, Engineering and Science. 60 (2020), 2710-2723.

DOI: 10.1002/pen.25502

[33] Brazilian Association of Technical Standards. concrete for structural purposes: NBR 8953. Rio de Janeiro. (2015).

[34] D. Barnat-Hunek, J. Góra, M. K. Widomski, Durability of Hydrophobic/Icephobic Coatings in Protection of Lightweight Concrete with Waste Aggregate, Materials. 14 (2021), 101.

DOI: 10.3390/ma14010101

[35] N. H. R. Sulong, S. A. S. Mustapa, M. K. A. Rashid, Application of expanded polystyrene (EPS) in buildings and constructions: A review, Applied Polymer. 20 (2019), 47529.

DOI: 10.1002/app.47529

[36] R. Wang, Z. Hu, Y. Li, K. Wang, H. Zhang, Review on the deterioration and approaches to enhance the durability of concrete in the freeze–thaw environment, Construction and Building Materials. 321 (2022), 126371.

DOI: 10.1016/j.conbuildmat.2022.126371

[37] The International Council for Research and Innovation in Building and Construction CIB, United Nations Environment Programme International Environmental Technology Centre UNEP-IETC, Agenda 21 for Sustainable Construction in Developing countries South Africa. (2002).

[38] Brazilian Association of Technical Standards. Concrete — Molding and curing of specimens. ABNT NBR 5378. Rio de Janeiro. (2020).

[39] Brazilian Association of Technical Standards. Humid Chambers and Tanks for Curing Specimens: NBR 9479. Rio de Janeiro. (2006).

[40] Brazilian Association of Technical Standards. Concrete - Compression Testing of Cylindrical Specimens: Test Method: NBR 5739. Rio de Janeiro. (2018).

[41] Brazilian Association of Technical Standards. Concrete and Mortar: NBR 7222. Rio de Janeiro. (2006).

[42] Brazilian Association of Technical Standards. Soil-cement brick. Soil-cement brick-Requirements: NBR 8491. Rio de Janeiro. (2012).
