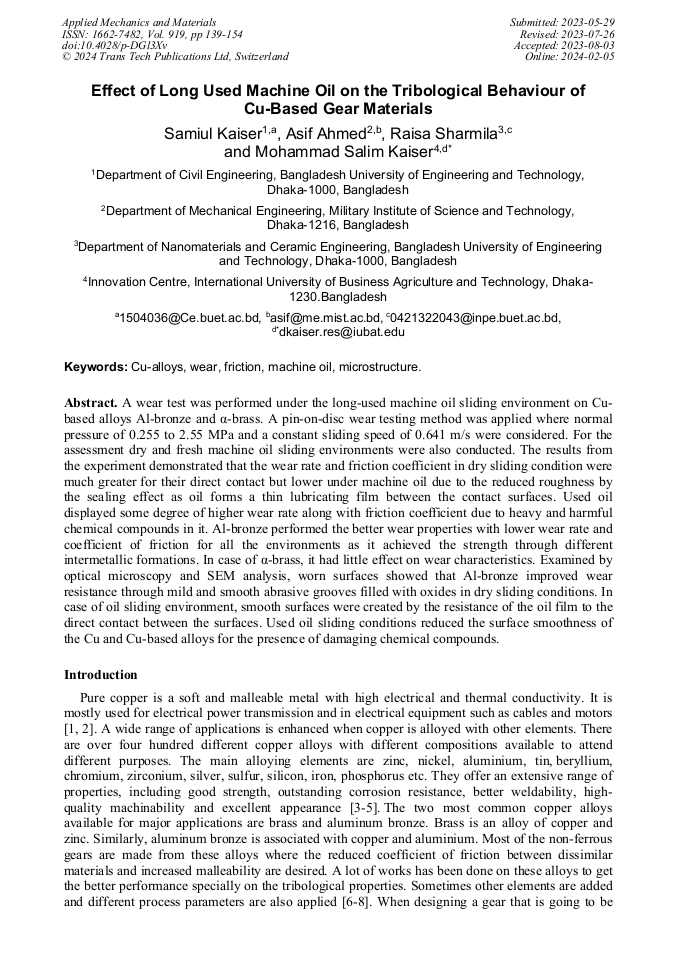

Effect of Long Used Machine Oil on the Tribological Behaviour of Cu-Based Gear Materials

Abstract:

A wear test was performed under the long-used machine oil sliding environment on Cu-based alloys Al-bronze and α-brass. A pin-on-disc wear testing method was applied where normal pressure of 0.255 to 2.55 MPa and a constant sliding speed of 0.641 m/s were considered. For the assessment dry and fresh machine oil sliding environments were also conducted. The results from the experiment demonstrated that the wear rate and friction coefficient in dry sliding condition were much greater for their direct contact but lower under machine oil due to the reduced roughness by the sealing effect as oil forms a thin lubricating film between the contact surfaces. Used oil displayed some degree of higher wear rate along with friction coefficient due to heavy and harmful chemical compounds in it. Al-bronze performed the better wear properties with lower wear rate and coefficient of friction for all the environments as it achieved the strength through different intermetallic formations. In case of α-brass, it had little effect on wear characteristics. Examined by optical microscopy and SEM analysis, worn surfaces showed that Al-bronze improved wear resistance through mild and smooth abrasive grooves filled with oxides in dry sliding conditions. In case of oil sliding environment, smooth surfaces were created by the resistance of the oil film to the direct contact between the surfaces. Used oil sliding conditions reduced the surface smoothness of the Cu and Cu-based alloys for the presence of damaging chemical compounds.

• Periodical: Applied Mechanics and Materials (Volume 919)
• Pages: 139-154
• DOI: https://doi.org/10.4028/p-DGl3Xv
• Online since: February 2024
• Authors: Samiul Kaiser, Asif Ahmed, Raisa Sharmila, Mohammad Salim Kaiser*
• Keywords: Cu-Alloys, Friction, Machine Oil, Microstructure, Wear

References

[1] M. Afifeh, S.J. Hosseinipour, R. Jamaati, Manufacturing of pure copper with extraordinary strength-ductility-conductivity balance by cryorolling and annealing, CIRP Journal of Manufacturing Science and Technology. 37 (2022) 623-632.

DOI: 10.1016/j.cirpj.2022.03.010

[2] S. Kaiser, M.S. Kaiser, Impact of cold plastic deformation and thermal post-treatment on the physical properties of copper based alloys Al-bronze and α-brass", Journal of Acta Metallurgica Slovaca. 12(2) (2021) 103-108.

DOI: 10.36547/ams.27.3.951

[3] K. Ri, V.G. Komkov, E.K. Ri, Effect of alloying elements on the physicomechanical properties of copper and tin bronze", Russian Metallurgy. (9) (2014) 750-755.

DOI: 10.1134/s0036029514090158

[4] J.R. Davis, ASM Specialty Handbook: Copper and Copper Alloys, 1st ed., ASM International, Materials park, Ohio, USA, 2001.

[5] S. Kaiser, MS. Kaiser, Physical behaviour of thermally affected bronze and brass, Journal of Mechanical Engineering Science and Technology. 4(1) (2020) 1-13.

DOI: 10.17977/um016v4i12020p001

[6] M. Okayasu, D. Izuka, Y. Ninomiya, Y. Manabe, T. Shiraishi, Mechanical and wear properties of Cu-Al-Ni-Fe-Sn-based alloy, Advances in Material Research, 2(4) (2013) 221-235.

DOI: 10.12989/amr.2013.2.4.221

[7] N.N. Myuller, A.V. Agafonova, Mechanical properties of Cu-Al-Fe alloys. Met Sci Heat Treat, 21, (1979) 217-220.

DOI: 10.1007/bf00774766

[8] H. Turhan, Adhesive wear resistance of Cu–Sn–Zn–Pb bronze with additions of Fe, Mn and P, Materials Letters, 59(12) (2005)1463-1469.

DOI: 10.1016/j.matlet.2004.11.016

[9] S.F. Dorey, Non-ferrous metals and marine engineering, Journal of the American Society for Naval Engineers. 67(1) (1995) 89-112.

[10] E.A. Emam, A.M. Shoaib, Re-refining of used lube oil, I- by solvent extraction and vacuum distillation followed by hydrotreating, Petroleum and Coal. 55(3) (2013) 179-187.

[11] T.M. Naife, S.A. Rashid, M.F.A. Jabbar, Treatment of Used lubricant Oil by Solvent Extraction", Iraqi Journal of Chemical and Petroleum Engineering. 23(1) (2022) 43-50.

DOI: 10.31699/ijcpe.2022.1.6

[12] J.A.H. Cancino, M. Ramezani, M.E.A. Ramos, Effect of degradation on tribological performance of engine lubricants at elevated temperatures, Tribology International. 124 (2018) 230-237.

DOI: 10.1016/j.triboint.2018.04.015

[13] M. Rahimi, M.R. Pourramezan, A. Rohani, Modeling and classifying the in-operando effects of wear and metal contaminations of lubricating oil on diesel engine: A machine learning approach, Expert Systems with Applications. 203(28) (2022) 1-12.

DOI: 10.1016/j.eswa.2022.117494

[14] M.S. Kaiser, S.H. Sabbirb, M.S. Kabir, M. Rahman, M.A. Nur, Study of mechanical and wear behaviour of hyper-eutectic Al-Si automotive alloy through Fe, Ni and Cr addition, Journal of Materials Research. 21(4) (2018) 1-9.

DOI: 10.1590/1980-5373-mr-2017-1096

[15] S.A.R. Naga, A.I. Selmy, M.A. Hassan, Mechanical wear behaviour of copper-base alloys, Tribology International. 23(1) (1990) 35-40.

DOI: 10.1016/0301-679x(90)90070-6

[16] S. Kaiser, M.S. Kaiser, S.R. Ahmed, Wear behavior of commercial tire rubber against mild steel in dry, wet and 3.5% NaCl corrosive environment, Journal of Energy, Mechanical, Material, and Manufacturing Engineering. 5(1) (2020) 1-10.

DOI: 10.22219/jemmme.v5i1.10428

[17] S. Kaiser, M. S. Kaiser, Wear behavior of commercial pure copper with Al and Zn under dry, wet and corrosive environment, Journal of Materials and Environmental Sciences. 11(4) (2020) 551-563.

[18] N.A. Aljabiri, A comparative study of recycling used lubricating oils using various methods, Journal of Scientific and Engineering Research. 5(9) (2018) 168-177.

[19] M. Lugovy, V. Slyunyayev, M. Brodnikovskyy, Solid solution strengthening in multicomponent fcc and bcc alloys: Analytical approach, Progress in Natural Science: Materials International, 31(1) 2021 95-104

DOI: 10.1016/j.pnsc.2020.11.006

[20] S. Wu, X. Cai, Y. Cheng, L. Zhou, Evolution of Intermetallic Cu9Al4 During the Mechanical Alloying of Cu-Al Mixtures in High-Energy Ball Milling, Journal of Elec Materi, 50, (2021) 4549-4556.

DOI: 10.1007/s11664-021-08992-8

[21] H.L. Hong, Q. Wang, C. Dong, P.K. Liaw, Understanding the Cu-Zn brass alloys using a short-range-order cluster model: significance of specific compositions of industrial alloys, Sci Rep, 4 (2014) 1-4.

DOI: 10.1038/srep07065

[22] S. Kaiser, M.S. Kaiser, Influence of aluminium and zinc additives on the physical and thermal behaviour of cast copper, Journal of Sustainable Structures and Materials. 3(1) (2020) 1-9.

[23] S.K. Jha, D. Balakumar, R. Paluchamy, Experimental analysis of microstructure and mechanical properties of copper and brass based alloys, International Journal of Automotive and Mechanical Engineering. 11(2015) 2317-2331.

DOI: 10.15282/ijame.11.2015.14.0195

[24] M.S. Prabhudev, V. Auradi, K. Venkateswarlu, N.H. Siddalingswamy, S.A. Kori, Influence of Cu addition on dry sliding wear behaviour of A356 alloy, Procedia Engineering. 97 (2014) 1361-1367, 2014.

DOI: 10.1016/j.proeng.2014.12.417

[25] S.M. Hsu, R. Munro, M.C, Shen, Wear in boundary lubrication, Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology. 216(6) (2002) 427-441.

DOI: 10.1243/135065002762355343

[26] S. Kaiser, M.S. Kaiser, A comparative study of chemical and physical properties of copper and copper alloys affected by acidic, alkaline and saline environments, Journal of Electrochemical Science and Engineering. 10(4) (2020) 337-384.

DOI: 10.5599/jese.877

[27] M.A. Chowdhury, M.K. Khalil, D.M. Nuruzzaman, M.L. Rahaman, The effect of sliding speed and normal load on friction and wear property of aluminum, International Journal of Mechanical & Mechatronics Engineering. 11(1) (2011) 45-49.

[28] J. Gegner, Tribology: Fundamentals and Advancements, IntechOpen, London, UK, 2013.

[29] S.A. Kori, Chandrashekharaiah TM. Studies on the dry sliding wear behaviourof hypoeutectic and eutectic Al–Si alloys, Wear. 263(1) (2007) 745-755.

DOI: 10.1016/j.wear.2006.11.026

[30] K.T. Kannan, S.R. Babu, Tribological behavior of modified jojoba oil with graphene nanoparticle as additive in SAE20W40 oil using pin on disc tribometer, Energy Sources, Part A: Recovery, Utilization, and Environmental Effects. 39(7) (2017) 1842-1848.

DOI: 10.1080/15567036.2017.1376006

[31] J.L. Fang, G.M. Donnell, The colour of copper alloys, Historical Metallurgy. 45 (2011) 52-61.

[32] L. Zhao, P. Yao, H. Zhou, T. Gong, M. Deng, Z. Zhang, Y. Xiao, H. Deng, Y. Li, F. Luo, Effect of CNTs in copper matrix on mechanical characteristics and tribological behavior under dry sliding and boundary lubrication conditions, Materials. 12(3) (2019) 1-13.

DOI: 10.3390/ma12132203

[33] P. Wexler, Encyclopedia of Toxicology, 3rd ed., Elsevier Inc. Academic Press, USA, 2014.

[34] K. Rajkumar, S. Aravindan, Tribological studies on microwave sintered copper–carbon nanotube composites, Wear. 270(9/10) (2011) 613-621.

DOI: 10.1016/j.wear.2011.01.017

[35] J.P. Tu, Y.Z. Yang, L.Y. Wang, X.C Ma, X.B. Zhang, Tribological properties of carbon-nanotube-reinforced copper composites, Tribology Letters. 10(4) (2001) 225-228.
