Experimental and Numerical Study of Flexural Strength of Kenaf Fibre-Reinforced Concrete Beams

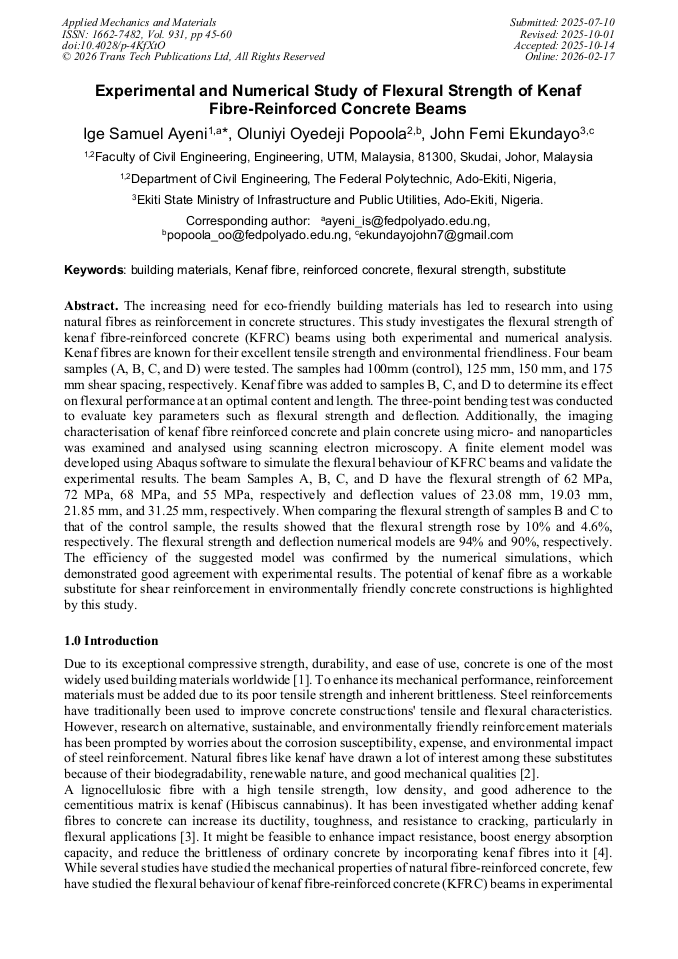

Article Preview

Abstract:

The increasing need for eco-friendly building materials has led to research into using natural fibres as reinforcement in concrete structures. This study investigates the flexural strength of kenaf fibre-reinforced concrete (KFRC) beams using both experimental and numerical analysis. Kenaf fibres are known for their excellent tensile strength and environmental friendliness. Four beam samples (A, B, C, and D) were tested. The samples had 100mm (control), 125 mm, 150 mm, and 175 mm shear spacing, respectively. Kenaf fibre was added to samples B, C, and D to determine its effect on flexural performance at an optimal content and length. The three-point bending test was conducted to evaluate key parameters such as flexural strength and deflection. Additionally, the imaging characterisation of kenaf fibre reinforced concrete and plain concrete using micro-and nanoparticles was examined and analysed using scanning electron microscopy. A finite element model was developed using Abaqus software to simulate the flexural behaviour of KFRC beams and validate the experimental results. The beam Samples A, B, C, and D have the flexural strength of 62 MPa, 72 MPa, 68 MPa, and 55 MPa, respectively and deflection values of 23.08 mm, 19.03 mm, 21.85 mm, and 31.25 mm, respectively. When comparing the flexural strength of samples B and C to that of the control sample, the results showed that the flexural strength rose by 10% and 4.6%, respectively. The flexural strength and deflection numerical models are 94% and 90%, respectively. The efficiency of the suggested model was confirmed by the numerical simulations, which demonstrated good agreement with experimental results. The potential of kenaf fibre as a workable substitute for shear reinforcement in environmentally friendly concrete constructions is highlighted by this study.

You might also be interested in these eBooks
Structural Materials, Energy Storage, Aerodynamic Design View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 931)

Pages:

45-60

DOI:

https://doi.org/10.4028/p-4KfXtO

Citation:

Cite this paper

Online since:

February 2026

Authors:

Ige Samuel Ayeni*, Oluniyi Oyedeji Popoola, John Femi Ekundayo

Keywords:

Building Materials, Flexural Strength, Kenaf Fibre, Reinforced Concrete, Substitute

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] I.S. Ayeni, Y. Mohamad, N. Hasanah, and S. Abdul, "Modelling and Integrating of Experimental Analysis for Predicting the Parameters of kenaf Fibre- Reinforced Concrete Beam-Column," Jurnal Teknologi., vol. 2, p.77–87, 2024.

DOI: 10.11113/jurnalteknologi.v86.20912

Google Scholar

[2] M. Rauf, W. Khaliq, R. A. Khushnood, and I. Ahmed, "Comparative Performance of Different Bacteria Immobilized in Natural Fibers for Self-healing in Concrete," Construction and Building Materials, vol. 258, p.119578, 2020.

DOI: 10.1016/j.conbuildmat.2020.119578

Google Scholar

[3] I.S. Ayeni, Y. Mohamad, N. Hasanah, and S. Abdul, Deflection And Strains Performance Of Kenaf Fibre-Reinforced Concrete Beams, ASEAN Engineering Journal, vol. 1, p.31–44, 2024.

DOI: 10.11113/aej.v14.19814

Google Scholar

[4] S.M. Syed Mohsin, A.O. Baarimah, and G.A. Jokhio, "Effect of Kenaf Fiber in Reinforced Concrete Slab," IOP Conference. Series Material Science Engineering, vol. 342, no. 1, 2018.

DOI: 10.1088/1757-899X/342/1/012104

Google Scholar

[5] C. Zhou, L. Cai, Z. Chen, and J. Li, "Effect of Kenaf Fiber on Mechanical Properties of High-Strength Cement Composites," Construction and Building. Materials, vol. 263, p.121007, 2020.

DOI: 10.1016/j.conbuildmat.2020.121007

Google Scholar

[6] J. Chen and N. Chouw, "Effect of The Interface Condition on The Bond Between Flax FRP Tube and Coconut Fibre Reinforced Concrete Composites," Construction and Building. Materials, vol. 167, p.597–604, 2018.

DOI: 10.1016/j.conbuildmat.2018.01.152

Google Scholar

[7] R. de S. Castoldi, L. M. S. de Souza, and F. de Andrade Silva, "Comparative Study on the Mechanical Behavior and Durability of Polypropylene and Sisal Fiber Reinforced Concretes," Construction and Building Materials, vol. 211, p.617–628, 2019.

DOI: 10.1016/j.conbuildmat.2019.03.282

Google Scholar

[8] T. Hussain and M. Ali, "Improving the impact resistance and dynamic properties of jute fibre reinforced concrete for rebars design by considering tension zone of FRC," Construction and Building Materials, vol. 213, p.592–607, 2019.

DOI: 10.1016/j.conbuildmat.2019.04.036

Google Scholar

[9] J. Zhang, C. Ding, X. Rong, H. Yang, and Y. Li, "Development and experimental investigation of hybrid precast concrete beam–column joints," Engineering Structures, vol. 219, no. May, p.110922, 2020.

DOI: 10.1016/j.engstruct.2020.110922

Google Scholar

[10] R. Ahmad, R. Hamid, and S. A. Osman, "Effect of Fibre Treatment on the Physical and Mechanical Properties of Kenaf Fibre Reinforced Blended Cementitious Composites," KSCE Journal of Civil Engineering, vol. 23, no. 9, p.4022–4035,2019.

DOI: 10.1007/s12205-019-1535-7

Google Scholar

[11] I. S. Ayeni, Jamaludin Mohamad Yatim, Nor Hasanah Abdul Shukor Lim, and O. G. Aluko, "A Review of Hybridised Use of Fibres in Shear Behaviour of Fibre-Reinforced Concrete Beams," ASEAN Engineering Journal, vol. 1, p.145–156, 2024.

DOI: 10.11113/aej.v14.20314

Google Scholar

[12] A. Guo, Z. Sun, and J. Satyavolu, "Experimental and Finite Element Analysis on Flexural Behavior of Mortar Beams with Chemically Modified Kenaf Fibers," Construction and Building Materials, vol. 292, p.123449, 2021.

DOI: 10.1016/j.conbuildmat.2021.123449

Google Scholar

[13] T. Jirawattanasomkul, S. Likitlersuang, N. Wuttiwannasak, T. Ueda, D. Zhang, and M. Shono, "Structural Behaviour of Pre-Damaged Reinforced Concrete Beams Strengthened with Natural Fibre Reinforced Polymer Composites," Composite Structures, vol. 244, no. January, p.112309, 2020.

DOI: 10.1016/j.compstruct.2020.112309

Google Scholar

[14] V. Cugat, S. H. P. Cavalaro, J. M. Bairán, and A. de la Fuente, "Safety Format for The Flexural Design of Tunnel Fibre Reinforced Concrete Precast Segmental Linings," Tunn. Undergr. Sp. Technol., vol. 103, no. June, p.103500, 2020.

DOI: 10.1016/j.tust.2020.103500

Google Scholar

[15] A. S. Vijay Vikram and S. Arivalagan, "Engineering Properties on The Sugar Cane Bagasse with Sisal Fibre Reinforced Concrete," International Journal of Applied Engineering Resources, vol. 12, no. 24, p.15142–15146, 2017.

Google Scholar

[16] H. Zhang, Y. jie Huang, M. Lin, and Z. jun Yang, "Effects of fibre orientation on tensile properties of ultra high performance fibre reinforced concrete based on meso-scale Monte Carlo simulations," Composite Structures, vol. 287, no. December 2021, p.115331, 2022.

DOI: 10.1016/j.compstruct.2022.115331

Google Scholar

[17] N. Ganesan, P. V. Indira, and M. V. Sabeena, "Behaviour of Hybrid Fibre Reinforced Concrete Beam-Column Joints Under Reverse Cyclic Loads," Mater. Des., vol. 54, p.686–693, 2014.

DOI: 10.1016/j.matdes.2013.08.076

Google Scholar

[18] G. Mortar. "Effect of Short Fibres in the Mechanical Properties of," no. September, 2021.

DOI: 10.3390/polym13173008

Google Scholar

[19] L. T. Fook and J. M. Yatim, "Mechanical Properties of Kenaf Fiber Reinforced Concrete with Different Fiber Content and Fiber Length," Journal of Asian Concrete Federation. doi.org/10.18702/acf.2015.09.1.11, no. September, p.10–21, 2015, doi: 10.18702/acf. 2015.09.1.11.

DOI: 10.18702/acf.2015.09.1.11

Google Scholar

[20] C. Sudha and G. S. Mohan, "Behaviour of Fibre Reinforced Concrete Using Basalt Fibre in Beam Column Joint under Cyclic Loading," ARPN Journal of Engineering and Applied Science, vol. 14, no. 8, p.1463–1470, 2019.

Google Scholar

[21] J. H. Haido, "Flexural Behavior of Basalt Fiber Reinforced Concrete Beams: Finite Element Simulation with New Constitutive Relationships," Structures, vol. 27, no. April, p.1876–1889, 2020.

DOI: 10.1016/j.istruc.2020.08.005

Google Scholar

[22] A. Dehghani, A. R. Mozafari, and F. Aslani, "Evaluation of the Efficacy of Using Engineered Cementitious Composites in RC Beam-Column Joints," Structures, vol. 27, no. May, p.151–162, 2020.

DOI: 10.1016/j.istruc.2020.05.045

Google Scholar

[23] A. Elbehiry, O. Elnawawy, M. Kassem, A. Zaher, and M. Mostafa, "FEM Evaluation of Reinforced Concrete Beams by Hybrid and Banana Fiber Bars (BFB)," Case Studies Construction Materials, vol. 14, 2021.

DOI: 10.1016/j.cscm.2020.e00479

Google Scholar

[24] N. Parthasarathi, K. S. Satyanarayanan, and V. Thamilarasu, "Performance of Reinforced Concrete Beam Column Joint under High Temperature," Materials Today Proceeding, vol. 40, pp. S52–S55, 2020.

DOI: 10.1016/j.matpr.2020.03.497

Google Scholar

[25] British Standards Institution, "BS 8110:1997 Structural Use of Concrete, Part 1: Code of Practice for Design and Construction," British Standards Institution, London, 1997.

Google Scholar

[26] American Society for Testing Materials (ASTM C293-02), "Standard Test Method for Flexural Strength of Concrete (Using Simple Beam with Centre-Point Loading)," ASTM International, April 15, 2002.

Google Scholar

[27] M. Ghahremannejad and A. Abolmaali, "Prediction of Shear Strength of Reinforced Concrete Beams Using Displacement Control Finite Element Analysis," Engineering. Structures, vol. 169, no. January, p.226–237, 2018.

DOI: 10.1016/j.engstruct.2018.05.048

Google Scholar

[28] N. C. Keong, M. A. A. Kadir, N. Zuhan, M. N. M. A. Mastor, and M. N. A. Alel, "Fire resistance of FRP strengthening concrete beams at elevated temperature using ABAQUS," Arch. Civ. Eng., vol. 68, no. 2, p.105–123, 2022.

Google Scholar

[29] M. Ravizi, "Performance of Kenaf Fibre Reinforced Concrete Under," A thesis Submitt. fulfilment Requir. Award degree Dr. Philos. (Civil Eng. Fac. Civ. Eng. Univ. Teknol. Malaysia, 2017.

Google Scholar

[30] O. G. Aluko, J. M. Yatim, M. A. A. Kadir, and K. Yahya, "Residual Cube Strength and Microstructural Properties of Fire-Damaged Biofibrous Concrete with GEP-Based Prediction Model," Arabian Journal Science Engineering, 2023.

DOI: 10.1007/s13369-023-08018-x

Google Scholar

[31] M. Usman Rashid, "Experimental Investigation on Durability Characteristics of Steel and Polypropylene Fiber Reinforced Concrete Exposed to Natural Weathering Action," Construction and Building Materials, vol. 250, p.118910, 2020.

DOI: 10.1016/j.conbuildmat.2020.118910

Google Scholar

[32] B. Seng, C. Magniont, and S. Lorente, "Characterization of a Precast Hemp Concrete. Part I: Physical and Thermal Properties," Journal of Building Engineering, vol. 24, no. April 2018, p.100540, 2019.

DOI: 10.1016/j.jobe.2018.07.016

Google Scholar

[33] M. Asim et al., "Comparative Experimental Investigation of Natural Fibers Reinforced Light Weight Concrete as Thermally Efficient Building Materials," Journal of Building Engineering, vol. 31, no. March, p.101411, 2020.

DOI: 10.1016/j.jobe.2020.101411

Google Scholar
