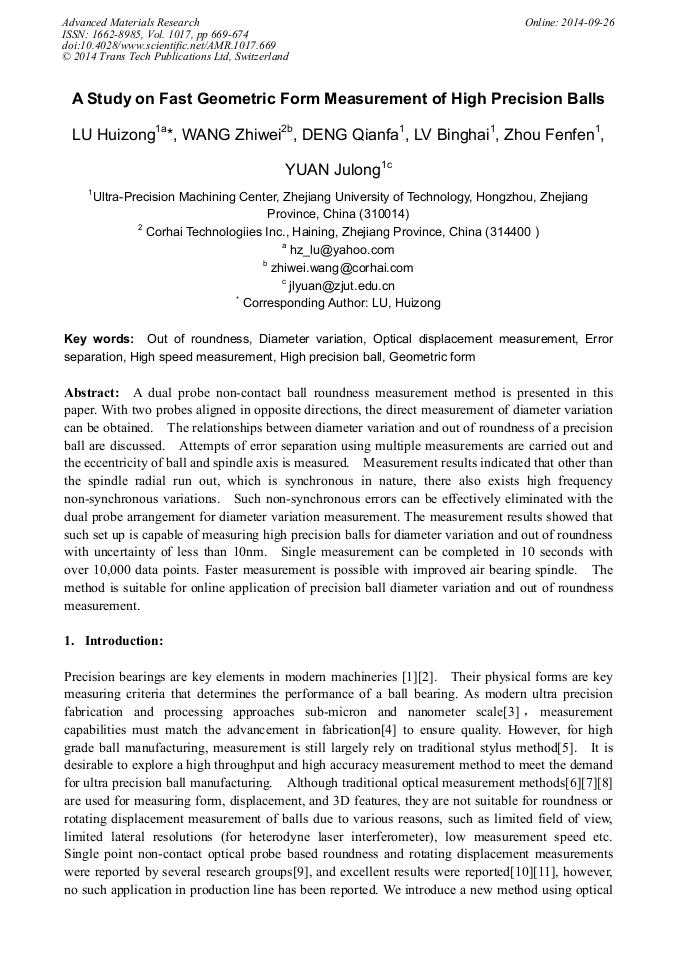

A Study on Fast Geometric Form Measurement of High Precision Balls

Abstract:

A dual probe non-contact ball roundness measurement method is presented in this paper. With two probes aligned in opposite directions, the direct measurement of diameter variation can be obtained. The relationships between diameter variation and out of roundness of a precision ball are discussed. Attempts of error separation using multiple measurements are carried out and the eccentricity of ball and spindle axis is measured. Measurement results indicated that other than the spindle radial run out, which is synchronous in nature, there also exists high frequency non-synchronous variations. Such non-synchronous errors can be effectively eliminated with the dual probe arrangement for diameter variation measurement. The measurement results showed that such set up is capable of measuring high precision balls for diameter variation and out of roundness with uncertainty of less than 10nm. Single measurement can be completed in 10 seconds with over 10,000 data points. Faster measurement is possible with improved air bearing spindle. The method is suitable for online application of precision ball diameter variation and out of roundness measurement.

• Periodical: Advanced Materials Research (Volume 1017)
• Pages: 669-674
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1017.669
• Online since: September 2014
• Authors: Hui Zong Lu*, Zhi Wei Wang, Qian Fa Deng, Bing Hai Lv, Fen Fen Zhou, Ju Long Yuan
• Keywords: Diameter Variation, Error Separation, Geometric Form, High Precision Ball, High Speed Measurement, Optical Displacement Measurement, Out of Roundness

References

[1] YUAN, J.L., CHEN, L.N., ZHAO, P., CHANG, M., XING, Y., LV, B.H., Study on Sphere Shaping Mechanism of Ceramic Ball for Lapping Process, Key Engineering Materials, Vol. 259-260 (2004), pp.195-200.

DOI: 10.4028/www.scientific.net/kem.259-260.195

[2] ZHAO, Ping., YU, Wei., TANG, K. efeng, LV, Binghai., YUAN, Julong, The Quantitative Evaluation on the Lapping Uniformity of Rotated Dual-Plates Lapping Mode, Applied Mechanics and Materials, Vol. 37-38 (2010), pp.1534-1539.

DOI: 10.4028/www.scientific.net/amm.37-38.1534

[3] KIMURA, Takashi, MATSUYAMA, Satoshi, YAMAUCHI, Kazuto, et. al., Coherent X-ray zoom condenser lens for diffractive and scanning microscopy[J], Optics Express, 2013, 21(8): 9267~9276.

DOI: 10.1364/oe.21.009267

[4] YAMAUCHI, Kazuto, MIMURA, Hidekazu, KIMURA Takashi, et. al, Single-nanometer focusing of hard x-rays by Kirkpatrick-Baez mirrors[J], Journal of Physics: Condensed Matter 23 (2011) 394206(9pp).

DOI: 10.1088/0953-8984/23/39/394206

[5] THALMANN, Ruedi, SPILLER, Jurg, A primary roundness measuring machine[J], Proceedings of SPIE, Vol. 5879 (2005), 1-10.

[6] Paul F. Forman, The Zygo Interferometer System, Proc. of SPIE, 1979, 0192 (Interferometry, Edited by George W. Hopkins): 41~48.

[7] BADAMI, Vivek G. and De GROOT, Peter J., Handbook of Optical Dimensional Metrology, Chapter 4, Displacement Measuring Interferometry[M], 2008, Editor Kevin Harding, Published by Taylor and Francis Group LLC, 2008, page 157.

[8] WYANT, James C., White Light Interferometer[J], Proceedings of SPIE Vol. 4737 (2002).

[9] GAO, Wei, KIYONO, Satoshi, and SUGAWARA, Takamitu, High-accuracy roundness measurement by a new error separation method[J], Precision Engineering 21: 123-133, (1997).

DOI: 10.1016/s0141-6359(97)00081-0

[10] ZHANG, G.X., ZHANG, Y.H., YANG, S.M., et. al, A Multipoing Method for Spindle Error Motion Measurement[J], Annals of the CIRP Vol. 46, 1/1997, pp.441-445.

DOI: 10.1016/s0007-8506(07)60861-0

[11] MARSH, Eric R., ARNESON, David A., MARTIN, Donald L., A comparison of reversal and multiprobe error separation[J], Precision Engineering 34(2010)85-91.

DOI: 10.1016/j.precisioneng.2009.03.001
