Effect of Surface Profile on the Material Removal Rate Distribution in CMP Process

Abstract:

Material removal rate (MRR) distribution is a major concern in CMP process. In the published literatures, both experimental and theoretical research, MRR distribution is given without considering the surface profile of wafer. In this paper, the effect of surface profile on the MRR is analyzed based on the Preston equation and the contact pressure distribution calculated by the mixed lubrication model. It is found that the MRR distribution is dramatically affected by the profile of wafer surface, and whatever the polishing pad is conditioned in situ, the MRR distribution will be uniform at last. In addition, the wear of the pad surface induces a decrease of MRR.

You might also be interested in these eBooks

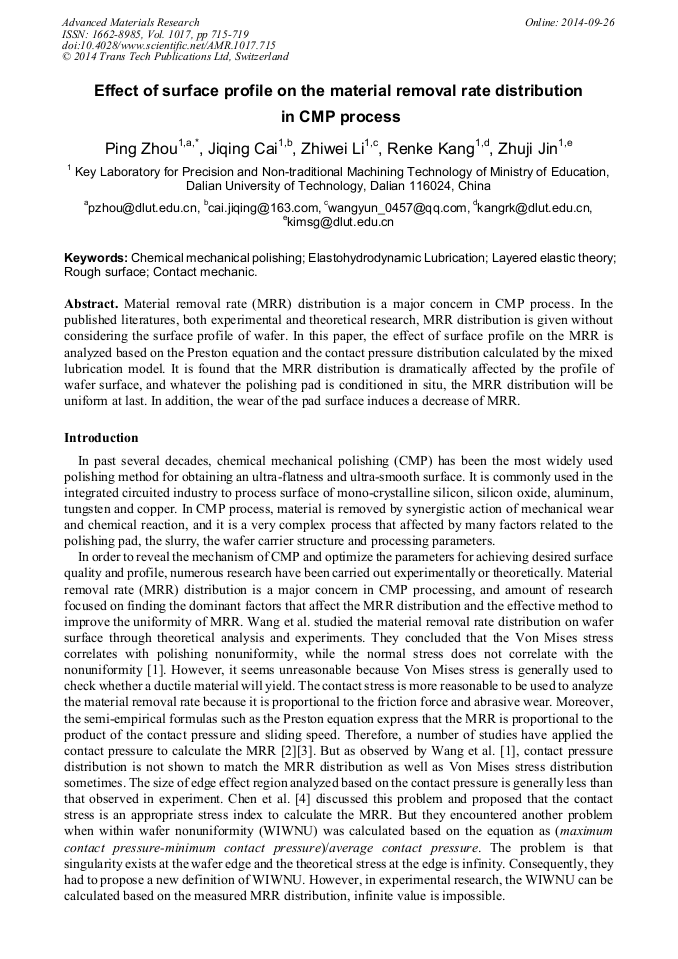

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1017)

Pages:

715-719

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1017.715

Citation:

Cite this paper

Online since:

September 2014

Authors:

Ping Zhou*, Ji Qing Cai, Zhi Wei Li, Ren Ke Kang, Zhu Ji Jin

Keywords:

Chemical Mechanical Polishing, Contact Mechanic, Elastohydrodynamic Lubrication, Layered Elastic Theory, Rough Surface

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Wang D, Lee J, Holland K, et al. Von Mises stress in chemical-mechanical polishing processes, J Electrochem. Soc., 1997, 144(3): 1121-1127.

DOI: 10.1149/1.1837542

Google Scholar

[2] Fu G, Chandra A. The relationship between wafer surface pressure and wafer backside loading in chemical mechanical polishing. Thin Solid Films, 2005, 474: 217–221.

DOI: 10.1016/j.tsf.2004.09.010

Google Scholar

[3] Tseng WT, Wang YH, Chin JH. Effects of film stress on the chemical mechanical polishing process. J Electrochem. Soc., 1999, 146: 4273–4280.

DOI: 10.1149/1.1392627

Google Scholar

[4] Chen K S, Yeh H M, Yan J L, et al. Finite-element analysis on wafer-level CMP contact tress: reinvestigated issues and the effects of selected process parameters. Int. J. Adv. Manuf. Technol., 2009, 42: 1118-1130.

DOI: 10.1007/s00170-008-1672-5

Google Scholar

[5] Zhou P, Guo D M, Kang R K, et al. A mixed elastohydrodynamic lubrication model with layered elastic theory for simulation of chemical mechanical polishing. Int. J. Adv. Manuf. Technol., 2013, 69: 1009-1016.

DOI: 10.1007/s00170-013-5108-5

Google Scholar

[6] Park Y, Jeong H, Choi S, et al. Planarization of wafer profile in chemical mechanical polishing, Int. J. Precision Engineering and Manufacturing, 2013, 14(1): 11-15.

DOI: 10.1007/s12541-013-0002-5

Google Scholar
