Chemical Mechanical Polishing of Soft-Brittle Cadmium Zinc Telluride Wafers Using a Developed Environment-Friendly Solution

Abstract:

A novel chemical mechanical polishing (CMP) solution was developed. The CMP solution developed consisted of mainly silica, hydrogen peroxide, and malic acid. CMP solution is environment-friendly, which is different from those used in conventional CMP, consisting of acids or organic solvents. Fixed abrasive waterproof paper of alumina with mesh size of 3000 was used as lapping tool, to avoid embedding of free abrasives on soft cadmium zinc telluride (CdZnTe or CZT) surfaces employed in traditional lapping processes. The diameter of silica was varied from several tens of nanometers to 100 nanometers. Surface roughness Ra, and PV achieved using fixed abrasive lapping and developed CMP solution are 0.6 nm and 6.3 nm, respectively. The polished CZT surface was cleaned by deionized water and dried using compressed air, to avoid damages induced by conventional physical wiping and ultrasonic cleaning on soft-brittle CZT wafers.

You might also be interested in these eBooks

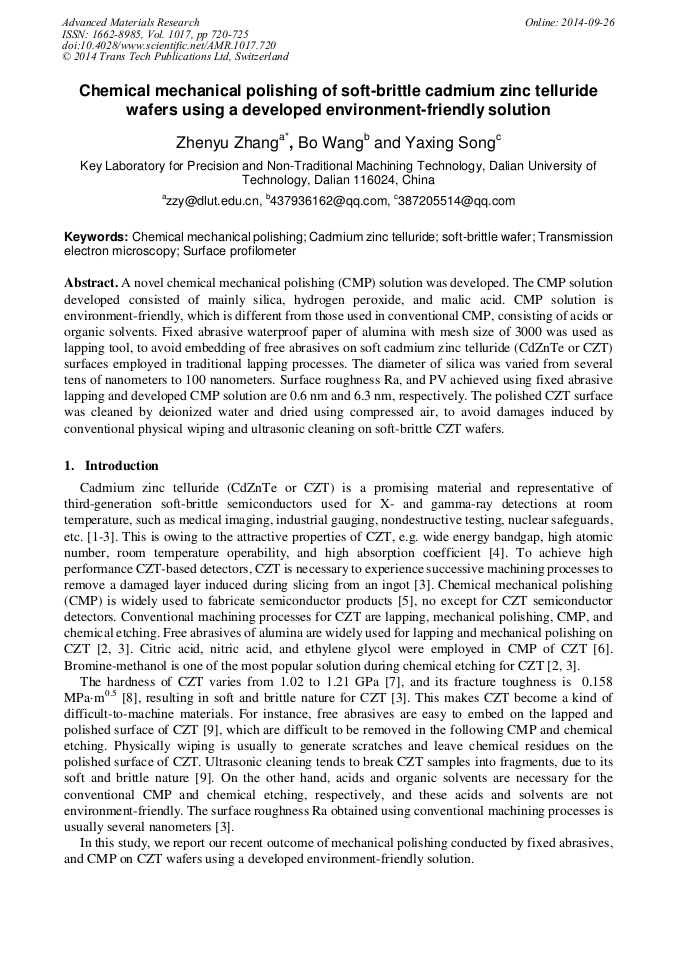

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1017)

Pages:

720-725

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1017.720

Citation:

Cite this paper

Online since:

September 2014

Authors:

Zhen Yu Zhang*, Bo Wang, Ya Xing Song

Keywords:

Cadmium Zinc Telluride, Chemical Mechanical Polishing, Soft-Brittle Wafer, Surface Profilometer, Transmission Electron Microscopy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T.E. Schlesinger, J.E. Toney, H. Yoon, E.Y. Lee, B.A. Brunett, L. Franks, R.B. James, Cadmium zinc telluride and its use as a nuclear radiation detector material, Mater. Sci. Eng. R Rep. 32 (2001) 103-189.

DOI: 10.1016/s0927-796x(01)00027-4

Google Scholar

[2] Q. Zheng, F. Dierre, J. Crocco, V. Carcelen,H. Bensalah, J.L. Plaza, E. Dieguez, Influence of surface preparation on CdZnTe nuclear radiation detectors, Appl. Surf. Sci. 257 (2011) 8742-8746.

DOI: 10.1016/j.apsusc.2011.05.098

Google Scholar

[3] A. Bensouici, V. Carcelen, J.L. Plaza, S. De Dios, N. Vijayan, J. Crocco, H. Bensalah, E. Dieguez, M. Elaatmani, Study of effects of polishing and etching processes on Cd1-xZnxTe surface quality,J. Cryst. Growth 312 (2010) 2098-2102.

DOI: 10.1016/j.jcrysgro.2010.03.045

Google Scholar

[4] H. Bensalah, V. Hortelano, J.L. Plaza, O. Martinez, J. Crocco, Q. Zheng, V. Carcelen, E. Dieguez, Characterization of CdZnTe after argon ion beam bombardment, J. Alloys Compd. 543 (2012) 233-238.

DOI: 10.1016/j.jallcom.2012.07.109

Google Scholar

[5] M.Y. Tsai, W.Z. Yang, Combined ultrasonic vibration and chemical mechanical polishing of copper substrates, Int. J. Mach. Tools Manuf. 53 (2012) 69-76.

DOI: 10.1016/j.ijmachtools.2011.09.009

Google Scholar

[6] Z.Y. Zhang, Y.W. Meng, D.M. Guo, R.K. Kang, H. Gao, Nanoscale machinability and subsurface damage machined by CMP of soft-brittle CdZnTe crystals, Int. J. Adv. Manuf. Technol. 47 (2010) 1105-1112.

DOI: 10.1007/s00170-009-2225-2

Google Scholar

[7] Z.Y. Zhang, H. Gao, W.Q. Jie, D.M. Guo, R.K. Kang, Y. Li, Chemical mechanical polishing and nanomechanics of semiconductor CdZnTe single crystals, Semicond. Sci. Technol. 23 (2008) 105023.

DOI: 10.1088/0268-1242/23/10/105023

Google Scholar

[8] Z.Y. Zhang, X.Z. Zhang, C.G. Xu, D.M. Guo, Characterization of nanoscale chips and a novel model for face nanogrinding on soft-brittle HgCdTe films, Tribol. Lett. 49 (2013) 203-215.

DOI: 10.1007/s11249-012-0058-x

Google Scholar

[9] J. Crocco, Q. Zheng, H. Bensalah, E. Dieguez, Detector surface preparation of Cd0. 9Zn0. 1Te for electrode patterning, Appl. Surf. Sci. 258 (2012) 2948-2952.

DOI: 10.1016/j.apsusc.2011.11.014

Google Scholar

[10] N. Auricchio, L. Marchini, E. Caroli, A. Zappettini, L. Abbene, V. Honkimaki, Charge transport properties in CdZnTe detectors grown by the vertical Bridgman technique,J. Appl. Phys. 110 (2011) 124502.

DOI: 10.1063/1.3667201

Google Scholar

[11] J.G. Speight, Lange's Handbook of Chemistry, McGraw-Hill Companies, New York, NY, (2005).

Google Scholar
