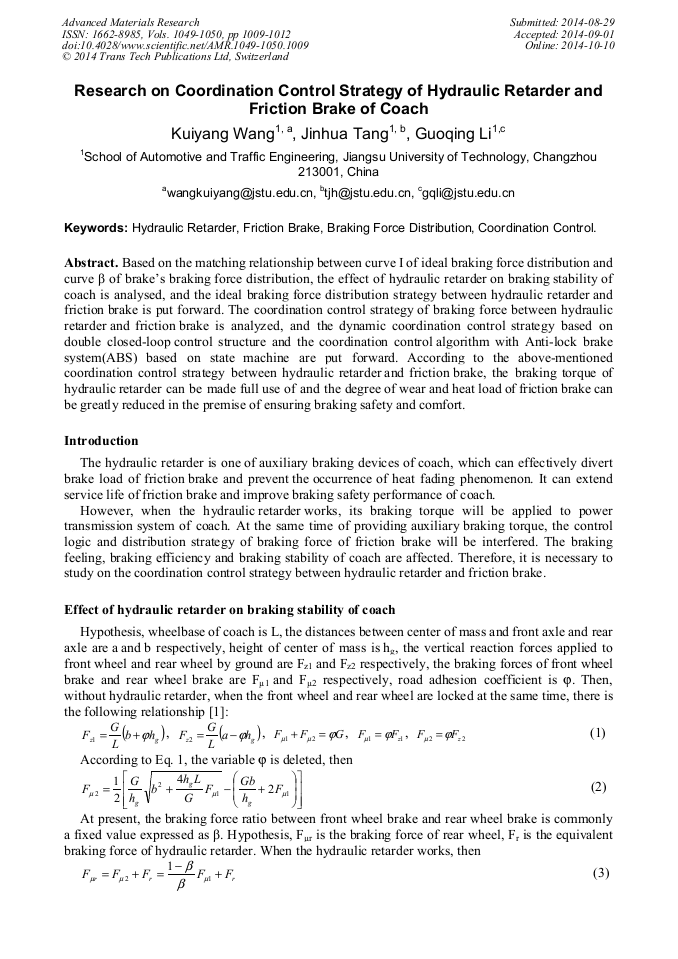

Research on Coordination Control Strategy of Hydraulic Retarder and Friction Brake of Coach

Abstract:

Based on the matching relationship between curve I of ideal braking force distribution and curve β of brake’s braking force distribution, the effect of hydraulic retarder on braking stability of coach is analysed, and the ideal braking force distribution strategy between hydraulic retarder and friction brake is put forward. The coordination control strategy of braking force between hydraulic retarder and friction brake is analyzed, and the dynamic coordination control strategy based on double closed-loop control structure and the coordination control algorithm with Anti-lock brake system (ABS) based on state machine are put forward. According to the above-mentioned coordination control strategy between hydraulic retarder and friction brake, the braking torque of hydraulic retarder can be made full use of and the degree of wear and heat load of friction brake can be greatly reduced in the premise of ensuring braking safety and comfort.

• Periodical: Advanced Materials Research (Volumes 1049-1050)
• Pages: 1009-1012
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1049-1050.1009
• Online since: October 2014
• Authors: Kui Yang Wang, Jin Hua Tang, Guo Qing Li
• Keywords: Braking Force Distribution, Coordination Control, Friction Brake, Hydraulic Retarder

References

[1] Yu Zhisheng. Theory of Automobile[M]. Beijing: Mechanical Industry Press, (2008).

[2] HE Ren. Auxiliary Braking Device of Vehicle[M]. Beijing: Chemical Industry Press, (2005).

[3] Yimin Gao, Liping Chen, Mehrdad Ehsani. Investigation of the Effectiveness of Regenerative Braking for EV and HEV[R]. SAE Paper, 1999-01-2910.

DOI: 10.4271/1999-01-2910

[4] TAIZO SAKAMOTO. Cooperative Control of Full Electric Braking System with Independently Driven Four Wheels[C]. 9th IEEE International Workshop on Advanced Motion Control, (2008).

DOI: 10.1109/amc.2006.1631728

[5] ZHANG Jianlong, YIN Chengliang, ZHANG Jiangwu, et al. Research on Braking Control System for Hybrid Electric Vehicle with Electro-mechanical Hybrid Brake[J]. Journal of System Simulation, 2009, 21(16): 5169-5178.

DOI: 10.1049/cp:20061078
