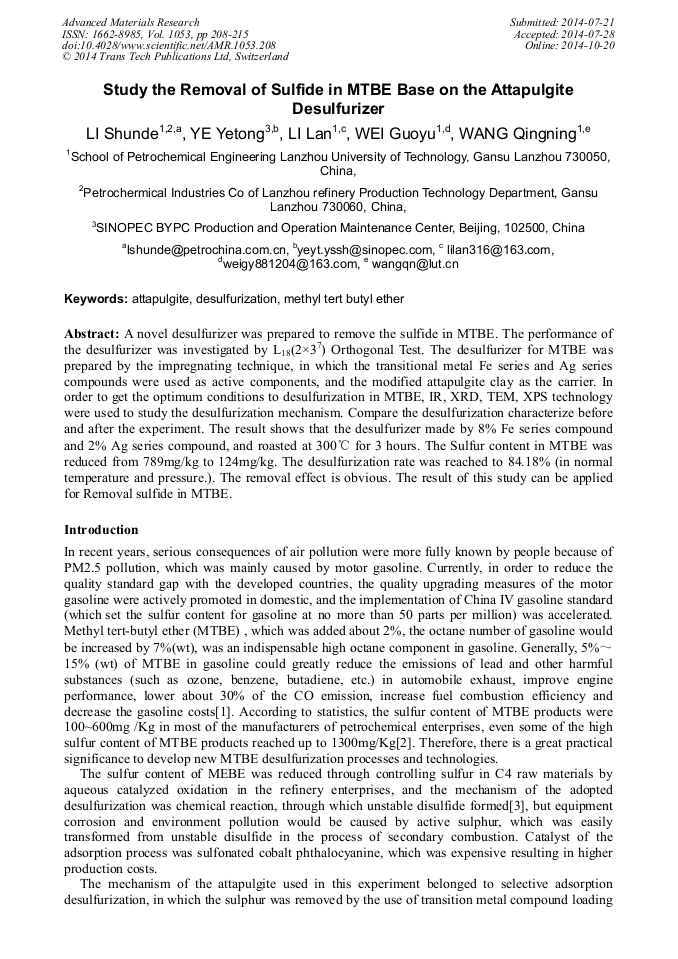

Study the Removal of Sulfide in MTBE Base on the Attapulgite Desulfurizer

Abstract:

A novel desulfurizer was prepared to remove the sulfide in MTBE. The performance of the desulfurizer was investigated by L₁₈(2×3⁷) Orthogonal Test. The desulfurizer for MTBE was prepared by the impregnating technique, in which the transitional metal Fe series and Ag series compounds were used as active components, and the modified attapulgite clay as the carrier. In order to get the optimum conditions to desulfurization in MTBE, IR, XRD, TEM, XPS technology were used to study the desulfurization mechanism. Compare the desulfurization characterize before and after the experiment. The result shows that the desulfurizer made by 8% Fe series compound and 2% Ag series compound, and roasted at 300°C for 3 hours. The Sulfur content in MTBE was reduced from 789mg/kg to 124mg/kg. The desulfurization rate was reached to 84.18% (in normal temperature and pressure.). The removal effect is obvious. The result of this study can be applied for Removal sulfide in MTBE.

• Periodical: Advanced Materials Research (Volume 1053)
• Pages: 208-215
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1053.208
• Online since: October 2014
• Authors: Shun De Li*, Ye Tong Ye, Lan Li, Guo Yu Wei, Qing Ning Wang
• Keywords: Attapulgite, Desulfurization, Methyl Tert Butyl Ether

References

[1] M.X. Dong, Z. Ma and K. Chang, MTBE production technology and market prospect analyse (In Chinese), Petrochemical Inoustry Application, vol. 26 (2007) No. 7, pp.6-9.

[2] F.W. Guan and J. Luo, Study on reducing sulfur in MTBE product(In Chinese), China Chemical Trade, vol. (2012) No. 7, p.125.

[3] S.X. Lin, Petroleum Refinery and Engineering(In Chinese), third ed., Chemical Industry Press (CIP), Bei Jing, 2000, pp.598-599.

[4] T.H. Chen, Nanometre Mineralogy and Geochemistry of Attapulgite Clay in Jiangsu and Anhui provinces, China, Ph.D., HeFei University of Technology, (2003).

[5] Q.N. Wang, L.H. Jiao, J. Chen, L. Li, W.L. Han and C.C. Huang, Influence of purified attapugite on desulfurization performance for thiophene(In Chinese), J Mineral Petrol, vol. 2 (2012) pp.1-6.

[6] M.S. Zheng, A.Q. Wang and G.S. Zhan, Research of Attapulgite Application (In Chinese), Chemical Industry Press (CIP), Bei Jing, 2007, p.60.

[7] W.Z. Li, Reduction of sulfur in MTBE and production of GuoⅤ gasoline (In Chinese), Petroleum Refinery Engineering, vol. 43 (2013) No. 2 p.19.

[8] Q.N. Wang, Z.C. Zhang, Y.L. Wang, L. Li and X.W. Zong, Sulfide removal from RFCC gasoline by attapulgite desulfurizer(In Chinese), Acta Petrolei Sinica(Petroleum Processing Section), vol. 27 (2011) No. 6 p.918.

[9] H. Chen, Removal of Cu(II) from aqueous solution by adsorption ontoacid-activated palygorskite, Journal of Hazardous Materials, 2007, 149 (2): 346-354.

DOI: 10.1016/j.jhazmat.2007.03.085

[10] T.J.Y. Jin, C.D.X. Shi and B.Y.F. An，Adsorption Science (In Chinese), Sec ed., G. X. Li (Trans. ), Chemical Industry Press (CIP), Bei Jing, 2005, pp.34-70.

[11] M.S. Zheng, A.Q. Wang and G.S. Zhan, Research of Attapulgite Application (In Chinese), Chemical Industry Press (CIP), Bei Jing, 2007, pp.68-69.
