The Effect of Forming Speed on the Formability of a Zr-Based Bulk Metallic Glass

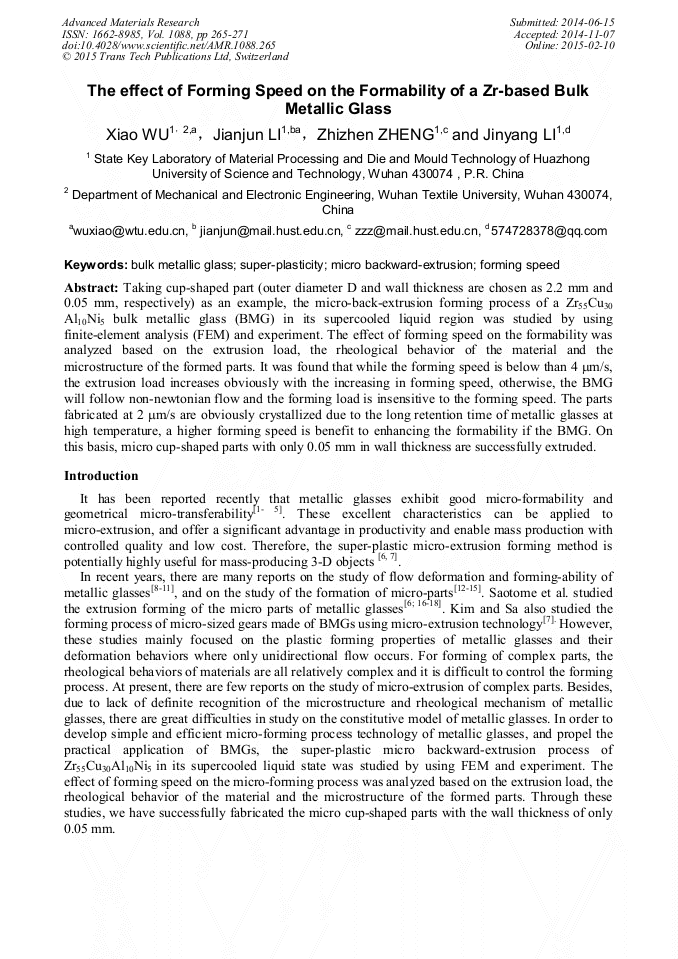

Article Preview

Abstract:

Taking cup-shaped part (outer diameter D and wall thickness are chosen as 2.2 mm and 0.05 mm, respectively) as an example, the micro-back-extrusion forming process of a Zr₅₅Cu₃₀ Al₁₀Ni₅ bulk metallic glass (BMG) in its supercooled liquid region was studied by using finite-element analysis (FEM) and experiment. The effect of forming speed on the formability was analyzed based on the extrusion load, the rheological behavior of the material and the microstructure of the formed parts. It was found that while the forming speed is below than 4 μm/s, the extrusion load increases obviously with the increasing in forming speed, otherwise, the BMG will follow non-newtonian flow and the forming load is insensitive to the forming speed. The parts fabricated at 2 μm/s are obviously crystallized due to the long retention time of metallic glasses at high temperature, a higher forming speed is benefit to enhancing the formability if the BMG. On this basis, micro cup-shaped parts with only 0.05 mm in wall thickness are successfully extruded.

You might also be interested in these eBooks

Advances in Materials Science

Info:

Periodical:

Advanced Materials Research (Volume 1088)

Pages:

265-271

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1088.265

Citation:

Cite this paper

Online since:

February 2015

Authors:

Wu Xiao, Jian Jun Li*, Zhi Zhen Zheng, Jin Yang Li

Keywords:

Bulk Metallic Glass, Forming Speed, Micro Backward-Extrusion, Super-Plasticity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Y. Saotome, T. Hatori, et al., Superplastic micro/nano-formability of La60Al20Ni10Co5Cu5 amorphous alloy in supercooled liquid state. Mater. Sci. Eng. A (2001) 716-720.

DOI: 10.1016/s0921-5093(00)01593-8

[2] Y. Saotome, K. Itoh, T. Zhang, A. Inoue, Superplastic nanoforming of Pd-based amorphous alloy. Scripta Mater. 44 (2001) 1541-1545.

DOI: 10.1016/s1359-6462(01)00837-5

[3] Y.Q. Zeng, A. Inoue, et al., Remarkable effect of minor boron doping on the formation of the largest size Ni-rich bulk metallic glasses. Scripta Mater. 60 (2009) 925-928.

DOI: 10.1016/j.scriptamat.2008.12.044

[4] Q.S. Zhang, W. Zhang, et al., Ni-free Zr-Fe-Al-Cu bulk metallic glasses with high glass-forming ability. Scripta Mater. 61 (2009) 241-244.

DOI: 10.1016/j.scriptamat.2009.03.056

[5] Z. -h. Zhang, X. -h. Liu, et al., Superplastic forming properties of Zr-based bulk amorphous alloys. Chinese Journal of Nonferrous Metals|Chinese Journal of Nonferrous Metals 14 (2004) 1073-1077.

[6] J. Cao, N. Krishnan, et al., Microforming: Experimental investigation of the extrusion process for micropins and its numerical simulation using RKEM. J. Manu. Sci. Eng. -Transactions of the Asme 126 (2004) 642-652.

DOI: 10.1115/1.1813468

[7] W.J. Kim, Y.K. Sa, Micro-extrusion of ECAP processed magnesium alloy for production of high strength magnesium micro-gears. Scripta Mater. 54 (2006) 1391-1395.

DOI: 10.1016/j.scriptamat.2005.11.066

[8] M. Heilmaier, J. Eckert, Elevated temperature deformation behavior of Zr-based bulk metallic glasses. Adv. Eng. Mater. 7 (2005) 833-841.

DOI: 10.1002/adem.200500080

[9] G. Kumar, J. Schroers, Write and erase mechanisms for bulk metallic glass. Appl. Phys. Lett. 92 (2008).

DOI: 10.1063/1.2834712

[10] G. Kumar, H.X. Tang, et al., Nanomoulding with amorphous metals. Nature 457 (2009) 868-U128.

[11] G. Wang, J. Shen, et al., Superplasticity and superplastic forming ability of a Zr-Ti-Ni-Cu-Be bulk metallic glass in the supercooled liquid recgion. J. Non-Cryst. Solids 351 (2005) 209-217.

DOI: 10.1016/j.jnoncrysol.2004.11.006

[12] H.M. Chiu, G. Kumar, et al., Thermoplastic extrusion of bulk metallic glass. Scripta Mater. 61 (2009) 28-31.

DOI: 10.1016/j.scriptamat.2009.02.052

[13] W.J. Kim, J.B. Lee, et al., Superplastic gas pressure forming of Zr65Al10Ni10Cu15 metallic glass sheets fabricated by squeeze mold casting. Mater. Sci. Eng. A 428 (2006) 205-210.

DOI: 10.1016/j.msea.2006.05.002

[14] W.J. Kim, S.J. Yoo, et al., Superplastic microforming of Mg-9Al-1Zn alloy with ultrafine-grained microstructure. Scripta Mater. 59 (2008) 599-602.

DOI: 10.1016/j.scriptamat.2008.05.014

[15] X. Wu, J.J. Li, et al., Micro-back-extrusion of a bulk metallic glass. Scripta Mater. 63 (2010) 469-472.

DOI: 10.1016/j.scriptamat.2010.05.004

[16] Y. Saotome, H. Iwazaki, Superplastic extrusion of microgear shaft of 10 mu m in module. Microsyst. Technol. 6 (2000) 126-129.

DOI: 10.1007/s005420050180

[17] Y. Saotome, H. Iwazaki, Superplastic extrusion of microgear shaft with photochemically machinable glass dies. Micro Mater., Proceedings (2000) 982-982.

[18] Y. Saotome, H. Iwazaki, Superplastic backward microextrusion of microparts for micro-electro-mechanical systems. J. Mater. Process. Tech. 119 (2001) 307-311.

DOI: 10.1016/s0924-0136(01)00957-8

[19] K.C. Chan, Q. Chen, et al., Deformation behavior of Zr55. 9Cu18. 6Ta8Al7. 5Ni10 bulk metallic glass matrix composite in the supercooled liquid region. Intermetallics 15 (2007) 500-505.

DOI: 10.1016/j.intermet.2006.09.002

[20] M.D. Demetriou, W.L. Johnson, Shear flow characteristics and crystallization kinetics during steady non-isothermal flow of Vitreloy-1. Acta Mater. 52 (2004) 3403-3412.

DOI: 10.1016/j.actamat.2004.03.034

[21] H. Kato, Y. Kawamura, et al., Newtonian to non-Newtonian master flow curves of a bulk glass alloy Pd40Ni10Cu30P20. Appl. Phys. Lett. 73 (1998) 3665-3667.

DOI: 10.1063/1.122856

[22] Z.Z. Zheng, J. Cheng, et al., Study on the Friction Behavior and Mechanism of Zr-based Bulk Metallic Glass Superplastic Forming in the Supercooled Liquid Region, China Mech. Eng., 2009, 20(20): 2510-2513.

[23] X.Y. Wang, N. Tang, et al., A Maxwell-pulse constitutive model of Zr55Cu30Al10Ni5 bulk metallic glasses in supercooled liquid region. J. Alloy. Compd. 509 (2011) 2518-2522.

DOI: 10.1016/j.jallcom.2010.11.070

[24] K.C. Chan, L. Liu, et al., Superplastic deformation of Zr55Cu30Al10Ni5 bulk metallic glass in the supercooled liquid region, 12th International Conference on Liquid and Amorphous Metals (LAM12), Metz, FRANCE, 2004, pp.3758-3763.

DOI: 10.1016/j.jnoncrysol.2007.05.143

[25] J. Schroers, On the formability of bulk metallic glass in its supercooled liquid state. Acta Mater. 56 (2008) 471-478.

DOI: 10.1016/j.actamat.2007.10.008

[26] Wu Xiao, Li Jianjun, et al., Experimental Study on Micro- backward Extrusion of a Zr- based Metall ic Glass in Its Super-cooled Liquid Region[J], China Mech. Eng., 2010, 21(15): 1864-1868.

[27] L. Liu, Z.F. Wu, et al., Crystallization kinetics of Zr55Cu30Al10Ni5 bulk amorphous alloy. J. Alloy. Compd. 339 (2002) 90-95.

DOI: 10.1016/s0925-8388(01)01977-6

[28] M. Heggen, F. Spaepen, et al., Creation and annihilation of free volume during homogeneous flow of a metallic glass. J. Appl. Phys. 97 (2005).

DOI: 10.1063/1.1827344

[29] P.N. Zhang, J.F. Li, et al., Structure evolution of bulk Zr60Cu20Pd10Al10 amorphous alloy during rolling deformation. J. Mate. Sci. 43 (2008) 7179-7183.

DOI: 10.1007/s10853-008-3019-x
