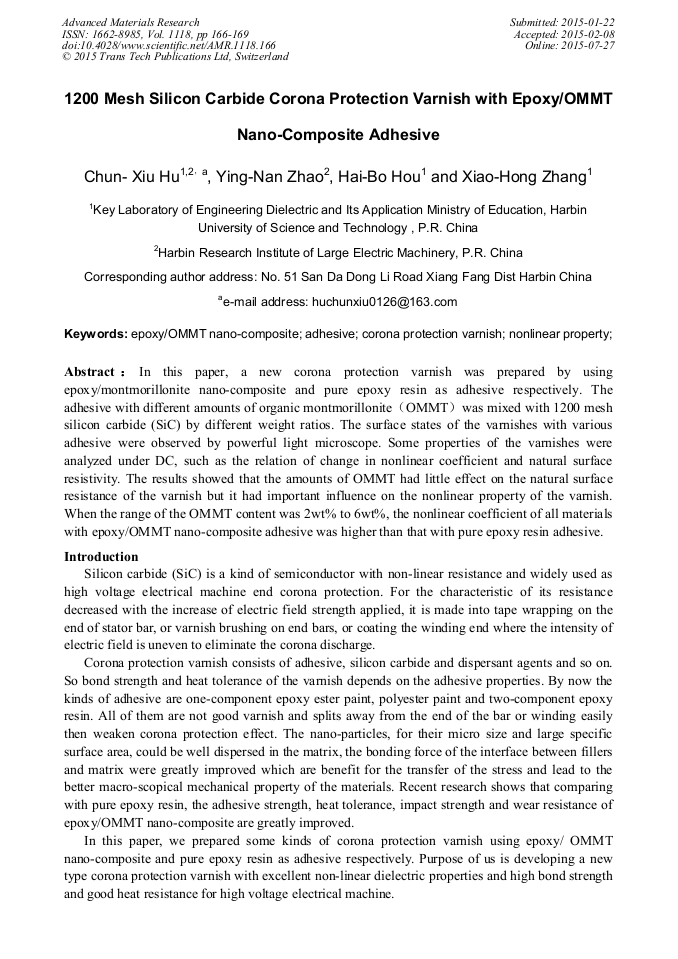

1200 Mesh Silicon Carbide Corona Protection Varnish with Epoxy/OMMT Nano-Composite Adhesive

Abstract:

In this paper, a new corona protection varnish was prepared by using epoxy/montmorillonite nanocomposite and pure epoxy resin as adhesive respectively. The adhesive with different amounts of organic montmorillonite (OMMT) was mixed with 1200 mesh silicon carbide (SiC) by different weight ratios. The surface states of the varnishes with various adhesive were observed by powerful light microscope. Some properties of the varnishes were analyzed under DC, such as the relation of change in nonlinear coefficient and natural surface resistivity. The results showed that the amounts of OMMT had little effect on the natural surface resistance of the varnish but it had important influence on the nonlinear property of the varnish. When the range of the OMMT content was 2wt% to 6wt%, the nonlinear coefficient of all materials with epoxy/OMMT nanocomposite adhesive was higher than that with pure epoxy resin adhesive.

You might also be interested in these eBooks

Current Micro-Nano Science and Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1118)

Pages:

166-169

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1118.166

Citation:

Cite this paper

Online since:

July 2015

Authors:

Chun Xiu Hu*, Ying Nan Zhao, Hai Bo Hou, Xiao Hong Zhang

Keywords:

Adhesive, Corona Protection Varnish, Epoxy/OMMT Nanocomposite, Nonlinear Property

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] YASMIN, LUO JJ, ABOUT JL, et al. Mechanical and Thermal Behavior of Clay/Epoxy Nanocomposites[J]. composites Science and Technology, 2006, 66(14): 2415-2422.

DOI: 10.1016/j.compscitech.2006.03.011

Google Scholar

[2] Peng B, Chen J C, Chen J M, Study on Bond Strength of Epoxy Resin Structure Adhesive Modified by Nanosize Materials[J], Journal of Hunan University，2007(8): 11-15.

Google Scholar

[3] Malamud R., Cheremisov I. Anti-Corona Protection of the High Voltage Stator Windings and Semi-Conductive Materials for Its Realization[C]. Conference Record of the 2000 IEEE International Symposium on Electrical Insulation, Anaheim, 2000: 32-35.

DOI: 10.1109/elinsl.2000.845414

Google Scholar

[4] Sun Y X, Zhang D P, Zheng W, Testing Technique Study of Surface Resistivity of Anti-Corona Material and Parameter Extraction[J], Insulation Material, 2012（6）: 56-59.

Google Scholar

[5] Zhao X X, Shi X F, He X, The Corona Protective Materials and Design of VPI Electric Machines[J], Electric Machines and Control, 2000(12): 251-254.

Google Scholar
