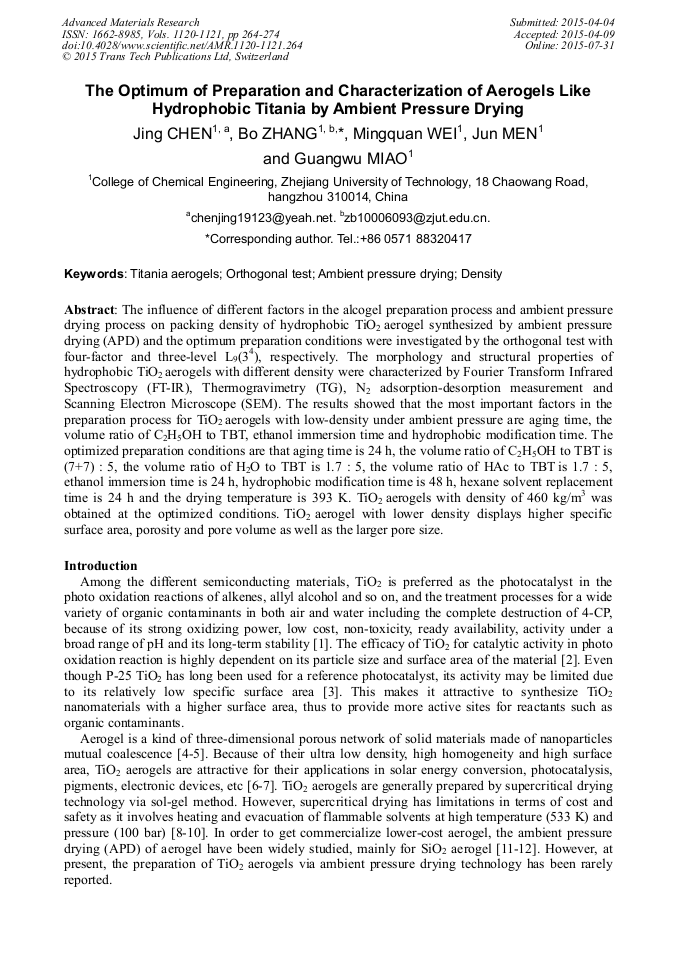

The Optimum of Preparation and Characterization of Aerogels like Hydrophobic Titania by Ambient Pressure Drying

Abstract:

The influence of different factors in the alcogel preparation process and ambient pressure drying process on packing density of hydrophobic TiO₂ aerogel synthesized by ambient pressure drying (APD) and the optimum preparation conditions were investigated by the orthogonal test with four-factor and three-level L₉(3⁴), respectively. The morphology and structural properties of hydrophobic TiO₂ aerogels with different density were characterized by Fourier Transform Infrared Spectroscopy (FT-IR), Thermogravimetry (TG), N₂ adsorption-desorption measurement and Scanning Electron Microscope (SEM). The results showed that the most important factors in the preparation process for TiO₂ aerogels with low-density under ambient pressure are aging time, the volume ratio of C₂H₅OH to TBT, ethanol immersion time and hydrophobic modification time. The optimized preparation conditions are that aging time is 24 h, the volume ratio of C₂H₅OH to TBT is (7+7) : 5, the volume ratio of H₂O to TBT is 1.7 : 5, the volume ratio of HAc to TBT is 1.7 : 5, ethanol immersion time is 24 h, hydrophobic modification time is 48 h, hexane solvent replacement time is 24 h and the drying temperature is 393 K. TiO₂ aerogels with density of 460 kg/m³ was obtained at the optimized conditions. TiO₂ aerogel with lower density displays higher specific surface area, porosity and pore volume as well as the larger pore size.

• Periodical: Advanced Materials Research (Volumes 1120-1121)
• Pages: 264-274
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.264
• Online since: July 2015
• Authors: Jing Chen, Bo Zhang*, Ming Quan Wei, Jun Men, Guang Wu Miao
• Keywords: Ambient Pressure Drying, Density, Orthogonal Test, Titania Aerogels

References

[1] J.P. Ghosh, R.H. Sui, C.H. Langford, G. Achari, C.P. Berlinguette, A comparison of several nanoscale photocatalysts in the degradation of a common pollutant using LEDs and conventional UV light, Water Res. 43 (2009) 4499-4506.

DOI: 10.1016/j.watres.2009.07.027

[2] S.V. Ingale, P.U. Sastry, P.B. Wagh, A.K. Tripathi, R. Rao, R. Tewari, P.T. Rao, R.P. Patel, A.K. Tyagi, S.C. Gupta, Synthesis and micro structural investigations of titaniaesilica nano composite aerogels, Mater. Chem. Phys. 135 (2012) 497-502.

DOI: 10.1016/j.matchemphys.2012.05.014

[3] H. Choi, E. Stathatos, D.D. Dionysiou, Photocatalytic TiO2 films and membranes for the development of efficient wastewater treatment and reuse systems, Desalination 202 (2007) 199–206.

DOI: 10.1016/j.desal.2005.12.055

[4] J.J. Li, J.G. Cao, M. Yang, W.L. Yin, Y.T. Yao, X.D. He, Seeded, growth of silica aerogel by tetraethoxysilane and trimethylchlorosilane co-precursor method, J. Non-Cryst. Solids. 362 (2013) 216-221.

DOI: 10.1016/j.jnoncrysol.2012.11.015

[5] U.K.H. Bangi, H.H. Park, C.S. Park, S. Baek, Improvement in optical and physical properties of TEOS based aerogels using acetonitrile via ambient pressure drying, Ceram. Int. 38 (2012) 6883-6888.

DOI: 10.1016/j.ceramint.2012.07.051

[6] L. Baia, A. Peter, V. Cosoveanu, E. Indrea, M. Baia, J. Popp, V. Danciu, Synthesis and nanostructural characterization of TiO2 aerogels for photovoltaic devices[ J], Thin Solid Films. 511- 512 (2006) 512-516.

DOI: 10.1016/j.tsf.2005.12.024

[7] G. Dagan, M. Tomkiewicz, Titanium dioxide aerogels for photocatalytic decontamination of aquatic environments[ J], J. Phys. Chem. 97 (1993) 12651-12655.

DOI: 10.1021/j100151a001

[8] A.V. Rao, R.R. Kalesh, Comparative studies of the physical and hydrophobic properties of TEOS based silica aerogels using different co-precursors, Sci. Technol. Adv. Mater. 4 (2003) 509-515.

DOI: 10.1016/j.stam.2003.12.010

[9] B. Unlusu, S.G. Sunol, A.K. Sunol, Stress formation during heating in supercritical drying, J. Non-Cryst. Solids. 279 (2001) 110-118.

DOI: 10.1016/s0022-3093(00)00398-7

[10] P.B. Sarawade, D.V. Quang, A Hilonga, S.J.H. Jeon, T. Kim, Synthesis and characterization of micrometer-sized silica aerogel nanoporous beads, Mater. Lett. 81 (2012) 37-40.

DOI: 10.1016/j.matlet.2012.04.110

[11] F. Shi, J.X. Liu, K. Song, Z.Y. Wang, Cost-effective synthesis of silica aerogels from fly ash via ambient pressure drying, J. Non-Cryst. Solids. 356 (2012) 2241-2246.

DOI: 10.1016/j.jnoncrysol.2010.08.005

[12] B. Xu, J.Y. Cai, N. Finn, Z.S. Cai, An improved method for preparing monolithic aerogels based on methyltrimethoxysilane at ambient pressure Part1: Process development and macrostructures of the aerogels, Microporous Mesoporous Mater. 148 (2012).

DOI: 10.1016/j.micromeso.2011.08.012

[13] E. Economopoulos, T. Ioannides, Synthesis of transparent silica aerogels using tetraalkylammonium fluoride catalysts, J. Sol-Gel Sci. Technol. 49 (2009) 347-354.

DOI: 10.1007/s10971-008-1878-x

[14] A.S. Dorcheh, M.H. Abbasi, Silica aerogel; synthesis, properties and characterization, J. Mater. Process. Technol. 199 (2008) 10-26.

[15] H. Omranpour, S. Motahari, Effects of processing conditions on silica aerogel during aging: Role of solvent, time and temperature, J. Non-Cryst. Solids. 379 (2013) 7-11.

DOI: 10.1016/j.jnoncrysol.2013.07.025

[16] J.J. Li, J.G. Cao, L. Huo, X.D. He, One-step synthesis of hydrophobic silica aerogel via in situ surface modification, Mater Lett. 87 (2012) 146-149.

DOI: 10.1016/j.matlet.2012.07.078

[17] S. Haukka, A. Root, The reaction of hexamethyldisilazane and subsequent oxidation of trimethylsilyl groups on silica studied by solid-state NMR and FTIR, J. Phys. chem. 98 (1994) 1695-1703.

DOI: 10.1021/j100057a025

[18] T. Rajagopalana, B. Lahlouha, J.A. Lubguban, N. Biswas, S. Gangopadhyay, J. Sun, D.H. Huang, S.L. Simon, D. Toma, R. Butler, Investigation on hexamethyldisilazane vapor treatment of plasma-damaged nanoporous organosilicate films[J], Appl. Surf. Sci. 252 (2006).

DOI: 10.1016/j.apsusc.2005.08.060

[19] K.Y. Huang, Z.P. He, K.J. Chao, Mesoporous silica films-characterization and reduction of their uptake[J], Thin Solid Films. 495 (2006) 197-204.

DOI: 10.1016/j.tsf.2005.08.263

[20] S.D. Bhagat, Y. H. Kim, C.S. Oh, Y.S. Ahn, J.G. Yeo, Methyltrimethoxysilane based monolithic silica aerogels via ambient pressure drying, Microporous Mesoporous Mater. 100 (2007) 350-355.

DOI: 10.1016/j.micromeso.2006.10.026

[21] N.A.S. Nogueira, E.B.D. Silva, P. M. Jardim, J.M. Sasaki, et al., Synthesis and characterization of NiAl2O4 nanoparticles obtained through gelation, Mater Lett. 61 (2007) 4743-4746.

DOI: 10.1016/j.matlet.2007.03.042

[22] S.D. Bhagat, Y.H. Kim, Y.S. Ahnb, J.G. Yeo, Textural properties of ambient pressure dried water-glass based silica aerogel beads: One day synthesis, Microporous Mesoporous Mater. 96 (2006) 237-244.

DOI: 10.1016/j.micromeso.2006.07.002
