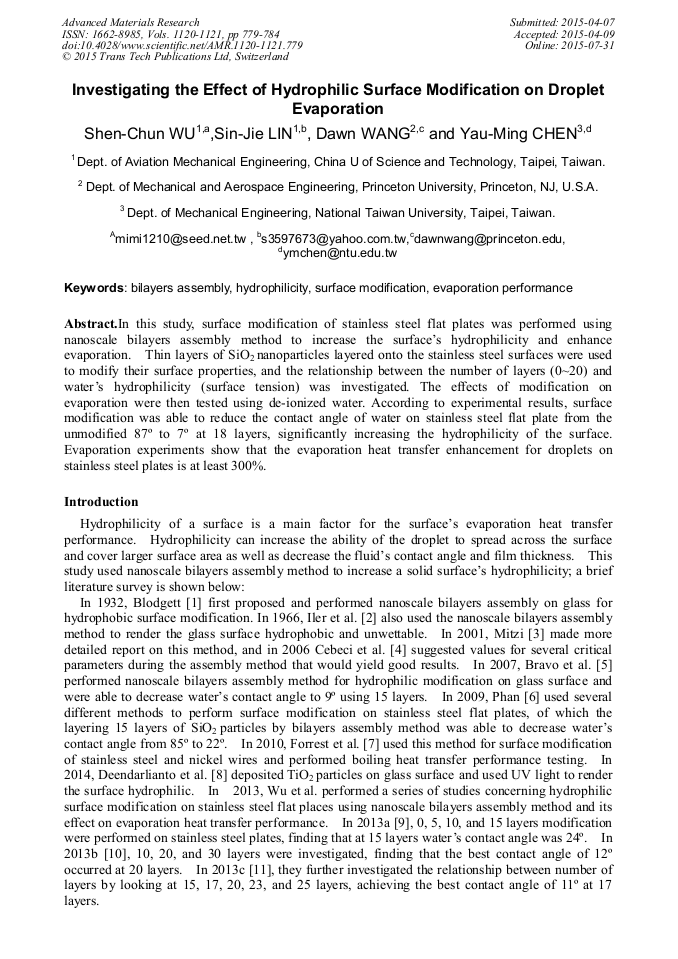

Investigating the Effect of Hydrophilic Surface Modification on Droplet Evaporation

Abstract:

In this study, surface modification of stainless steel flat plates was performed using nanoscale bilayers assembly method to increase the surface’s hydrophilicity and enhance evaporation. Thin layers of SiO₂nanoparticles layered onto the stainless steel surfaces were used to modify their surface properties, and the relationship between the number of layers (0~20) and water’s hydrophilicity (surface tension) was investigated. The effects of modification on evaporation were then tested using de-ionized water. According to experimental results, surface modification was able to reduce the contact angle of water on stainless steel flat plate from the unmodified 87o to 7o at 18 layers, significantly increasing the hydrophilicity of the surface. Evaporation experiments show that the evaporation heat transfer enhancement for droplets on stainless steel plates is at least 300%.Keywords: bilayers assembly, hydrophilicity, surface modification, evaporation performance

You might also be interested in these eBooks

Contemporary Approaches in Material Science and Materials Processing Technologies

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1120-1121)

Pages:

779-784

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.779

Citation:

Cite this paper

Online since:

July 2015

Authors:

Shen Chun Wu*, Sin Jie Lin, Dawn Wang, Yau Ming Chen

Keywords:

Bilayers Assembly, Evaporation Performance, Hydrophilicity, Surface Modification

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Blodgett, K. B., Monomolecular films of fatty acids on glass, Journal of the American Chemical Society , Vol. 56, p.495, (1934).

DOI: 10.1021/ja01317a513

Google Scholar

[2] Iler, R. K., Multilayers of colloidal particles, Journal of Colloid and Interface Science, Vol. 21, p.569, (1966).

DOI: 10.1016/0095-8522(66)90018-3

Google Scholar

[3] Mitzi, D.B., Thin-film deposition of organic-inorganic hybrid materials, Chemistry of Materials, Vol. 13, pp.3283-3298, (2001).

DOI: 10.1021/cm0101677

Google Scholar

[4] Cebeci, F. Cü ., Wu, Z., Zhai, L., Cohen, R. E., Rubner, M. F., Nanoporosity-Driven Superhydrophilicity: A Means to Create Multifuncional Antifogging Coatings, Langmuir, Vol. 22, pp.2856-2862, (2006).

DOI: 10.1021/la053182p

Google Scholar

[5] Bravo, J., Zhai, L., Wu, Z., Cohen R. E., and Rubner, M. F., Transparent Superhydrophobic Films Based on Silica Nanoparticles, Langmuir, Vol. 23, p.7293–7298, (2007).

DOI: 10.1021/la070159q

Google Scholar

[6] Phan, H.T., Caney, N., Marty, P., Colasson, S., Gavillet, J., Surface wettability controlled by nanocoating: the effects on pool boiling heat transfer and nucleation mechanism, International Journal Heat and Mass transfer, Vol. 52, p.5459–5471, (2009).

DOI: 10.1016/j.ijheatmasstransfer.2009.06.032

Google Scholar

[7] Forrest, E., Willianson, E., Buongiorno, J., Hu, L.W., Rubner, M., Cohen, R., Augmentation of nucleate boiling heat transfer and critical heat flux using nanoparticle thin-film coating, International Journal Heat and Mass transfer, Vol. 53, Issues 1-3, pp.58-67, (2010).

DOI: 10.1016/j.ijheatmasstransfer.2009.10.008

Google Scholar

[8] Deendarlianto, Takata, Y., Hidaka, S., Indarto, Widyaparage, A., Kamal, S., Purnomo, Kohno, M., Effect of static contact angle on the droplet dynamics during the evaporation of a water droplet on the hot walls, International Journal of Heat Mass Transfer, vol. 71, pp.691-705, (2014).

DOI: 10.1016/j.ijheatmasstransfer.2013.12.066

Google Scholar

[9] Wu, S.C., C.T. Hsu, W.H. Yang, D. Wang, H. S. Li, Z. Y. Huang, S. J. Su, and Y. M. Chen. Investigating the application of nanoscale bilayers assembly on stainless steel plate to evaporation behavior. , Advanced Materials Research , Vol. 750, pp.2104-2107.

DOI: 10.4028/www.scientific.net/amr.750-752.2104

Google Scholar

[10] Wu, S.C., D. Wang, H. S. Li, S. J. Lin, C. T. Hsu, and Y. M. Chen. Investigating the use of nanoscale bilayers assembly on stainless steel plate to improve evaporation. , Applied Mechanics and Materials , Vol. 395-396 , pp.718-725, 2013b.

DOI: 10.4028/www.scientific.net/amm.395-396.718

Google Scholar

[11] Wu, S.C. D. Wang, S. J. Lin , P . W Ciou, C. Y Chung, S. J Su, Y. M Chen. Investigating the use of nanoscale bilayers assembly on stainless steel plate for surface hydrophilic modification . , Applied Mechanics and Materials , Vols. 401-403, pp.792-795.

DOI: 10.4028/www.scientific.net/amm.401-403.792

Google Scholar
