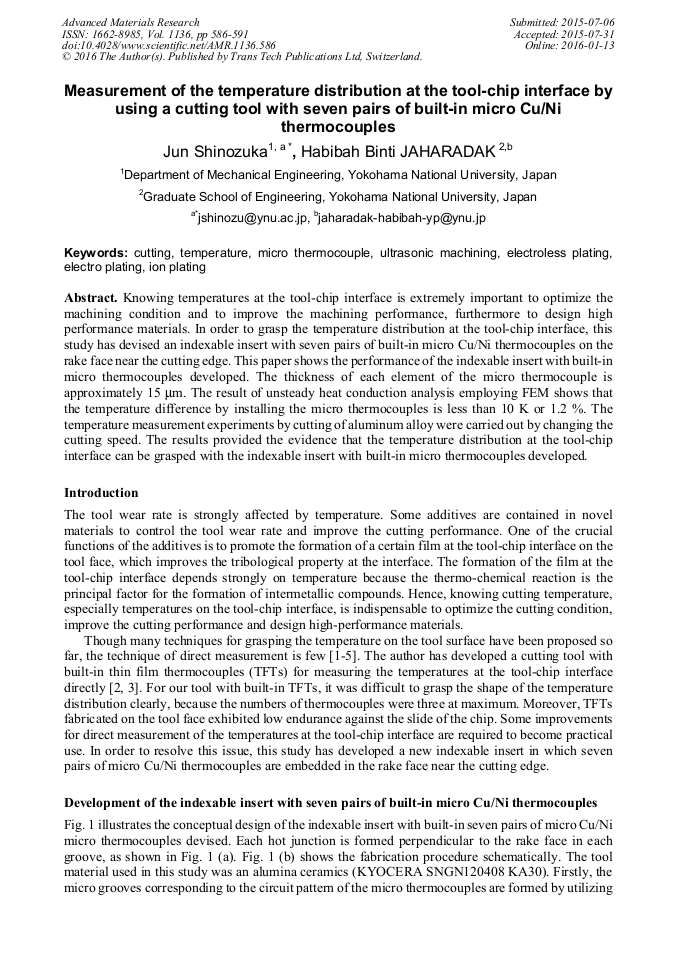

Measurement of the Temperature Distribution at the Tool-Chip Interface by Using a Cutting Tool with Seven Pairs of Built-In Micro Cu/Ni Thermocouples

Abstract:

Knowing temperatures at the tool-chip interface is extremely important to optimize the machining condition and to improve the machining performance, furthermore to design high performance materials. In order to grasp the temperature distribution at the tool-chip interface, this study has devised an indexable insert with seven pairs of built-in micro Cu/Ni thermocouples on the rake face near the cutting edge. This paper shows the performance of the indexable insert with built-in micro thermocouples developed. The thickness of each element of the micro thermocouple is approximately 15 μm. The result of unsteady heat conduction analysis employing FEM shows that the temperature difference by installing the micro thermocouples is less than 10 K or 1.2 %. The temperature measurement experiments by cutting of aluminum alloy were carried out by changing the cutting speed. The results provided the evidence that the temperature distribution at the tool-chip interface can be grasped with the indexable insert with built-in micro thermocouples developed.

• Periodical: Advanced Materials Research (Volume 1136)
• Pages: 586-591
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1136.586
• Online since: January 2016
• Authors: Jun Shinozuka*, Habibah binti Jaharadak
• Keywords: Cutting, Electro Plating, Electroless Plating, Ion Plating, Micro Thermocouple, Temperature, Ultrasonic Machining

References

[1] Frittz Klocke, Michael Rehse, Intelligent Tools through Integrated Micro Systems, Production Engineering, Vol. IV/2 (1997), pp.65-58.

[2] Jun Shinozuka, Ali Basti and Toshiyuki Obikawa, Development of Cutting Tool with Built-in Thin Film Thermocouples for Measuring High Temperature Fields in Metal Cutting Processes, Transaction of the ASME, Journal of Manufacturing Science and Engineering, Vol. 130, June (2008).

DOI: 10.1115/1.2823066

[3] Ali Basti, Toshiyuki Obikawa and Jun Shinozuka, Tools with Built-in Thin Film Thermocouple Sensors for Monitoring Cutting Temperature, International Journal of Machine Tools and Manufacture, Vol. 47 (2007) pp.793-798.

DOI: 10.1016/j.ijmachtools.2006.09.007

[4] W. Tillmann, E. Vogli, J. Herper, Dirk Biermann, Klaus Pantke, Development of temperature sensor thin films to monitor turning processes, Journal of Materials Processing Technology, Vol. 210 (2010) p.819–823.

DOI: 10.1016/j.jmatprotec.2010.01.013

[5] Dirk Werschmoeller, Kornel Ehmann, Xiaochun Li, Tool Embedded Thin Film Microsensors for Monitoring Thermal Phenomena at Tool-Workpiece Interface During Machining, Transactions of the ASME, Journal of Manufacturing Science and Engineering, Vol. 133 (2011).

DOI: 10.1115/1.4003616

[6] Jun Shinozuka, Fabrication of multiple micro-grooves by ultrasonic machining with a tool that laminated thin hard-material and thin soft-material, Advanced Materials Research, 76-78 (2009) pp.577-582.

DOI: 10.4028/www.scientific.net/amr.76-78.577

[7] Yuji Tomoda, Junichi Harashita and Jun Shinozuka, Fabrication of a tool insert in which micro thermocouples are embedded for monitoring cutting temperature, Proceedings of the 6th International Conference on Leading Edge Manufacturing in 21st Century, (2011).

DOI: 10.1299/jsmelem.2011.6._3336-1_

[8] Junichi Harashita, Yuji Tomoda and Jun Shinozuka, Development of a cutting tool with micro built-in thermocouples - Characteristic of the micro Cu/Ni thermocouples fabricated by electroless plating and electro plating -, Key Engineering Materials, Vols. 523-524 (2012).

DOI: 10.4028/www.scientific.net/kem.523-524.815

[9] Network Database System for Thermophysical Property Data on http: /tpds. db. aist. go. jp.
