Experimental Study of the Causes for Shape Error of a Large Workpiece Machined by Surface Grinding

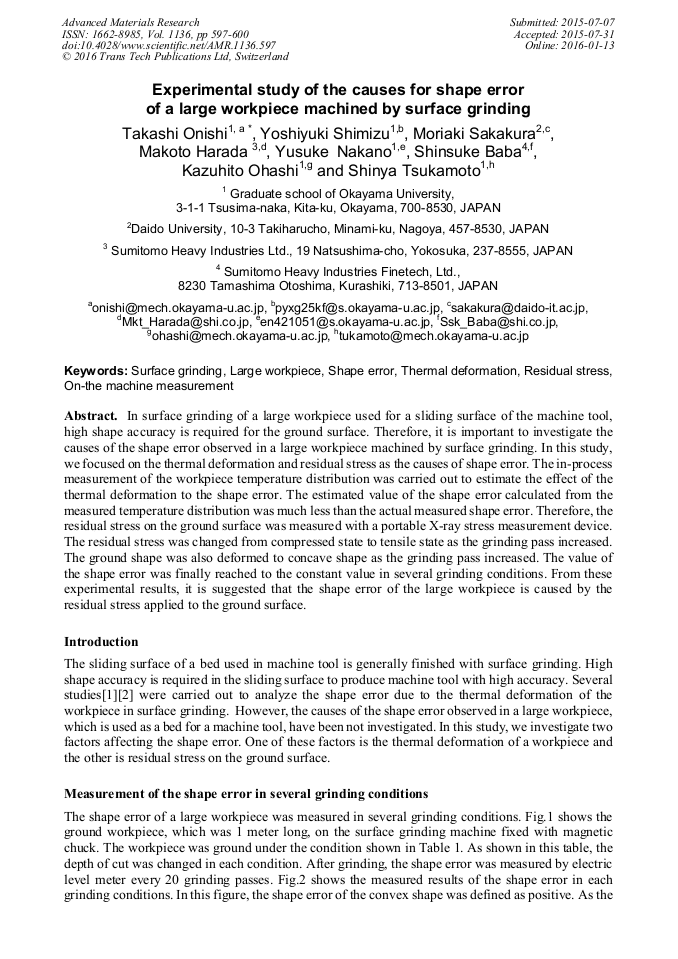

Abstract:

In surface grinding of a large workpiece used for a sliding surface of the machine tool, high shape accuracy is required for the ground surface. Therefore, it is important to investigate the causes of the shape error observed in a large workpiece machined by surface grinding. In this study, we focused on the thermal deformation and residual stress as the causes of shape error. The in-process measurement of the workpiece temperature distribution was carried out to estimate the effect of the thermal deformation to the shape error. The estimated value of the shape error calculated from the measured temperature distribution was much less than the actual measured shape error. Therefore, the residual stress on the ground surface was measured with a portable X-ray stress measurement device. The residual stress was changed from compressed state to tensile state as the grinding pass increased. The ground shape was also deformed to concave shape as the grinding pass increased. The value of the shape error was finally reached to the constant value in several grinding conditions. From these experimental results, it is suggested that the shape error of the large workpiece is caused by the residual stress applied to the ground surface.

• Periodical: Advanced Materials Research (Volume 1136)
• Pages: 597-600
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1136.597
• Online since: January 2016
• Authors: Takashi Onishi, Yoshiyuki Shimizu, Moriaki Sakakura, Makoto Harada, Yusuke Nakano, Shinsuke Baba, Kazuhito Ohashi, Shinya Tsukamoto
• Keywords: Large Workpiece, On-The Machine Measurement, Residual Stress, Shape Error, Surface Grinding, Thermal Deformation

References

[1] Y. SAITO, T. SAITO, N. NISHIWAKI, Y. ITO, Effects of Thermal Deformation on the Accuracy of Surface Grinding , Journal of JSPE, 50, 4(1984)679-684.

[2] T. NISHIHARA, S. OKUYAMA, S. KAWAMURA, S. HANASAKI, Study on the Geometrical Accuracy in Surface Grinding, Thermal Deformation of Workpiece in Traverse Grinding, Journal of JSPE, 59, 7(1993)1145-1150.

DOI: 10.2493/jjspe.59.1145

[3] T. ONISHI, M. SAKAKURA et al., Simulation Analysis and In-Process Measurement of the Workpiece Temperature Distribution in Large Surface Grinding, Proceedings of the IC3MT (2014)131.

[4] T. SHIRAKASHI, T. OBIKAWA, H. SASAHARA, T. WADA, The Analytical Prediction of the Characteristics within Machined Surface Layer (1st Report) , Journal of JSPE, 59, 10(1993)1695-1700.

DOI: 10.2493/jjspe.59.1695
