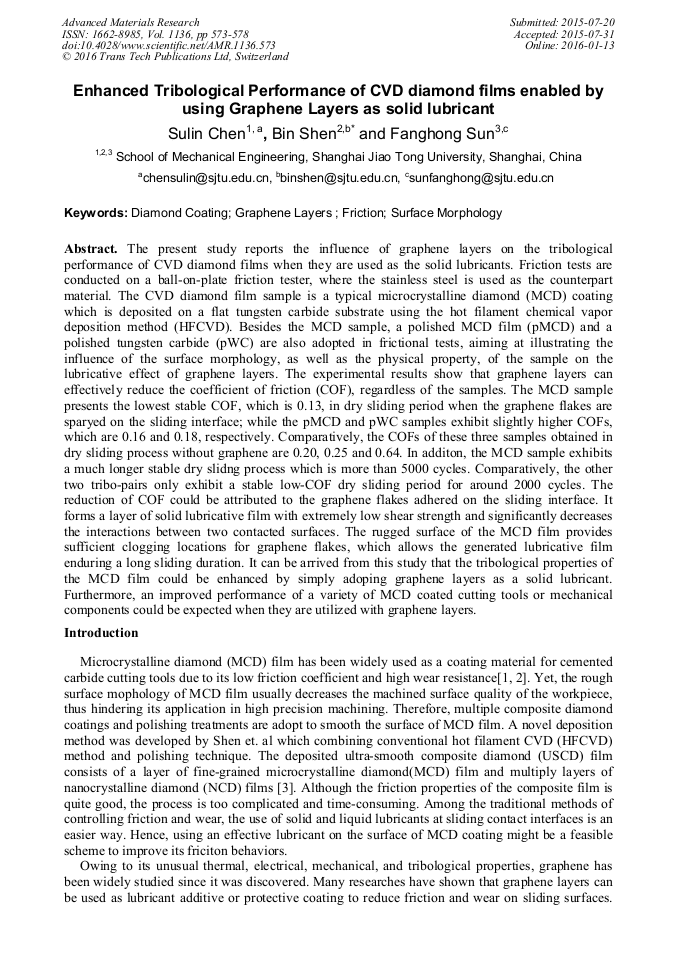

Enhanced Tribological Performance of CVD Diamond Films Enabled by Using Graphene Layers as Solid Lubricant

Abstract:

The present study reports the influence of graphene layers on the tribological performance of CVD diamond films when they are used as the solid lubricants. Friction tests are conducted on a ball-on-plate friction tester, where the stainless steel is used as the counterpart material. The CVD diamond film sample is a typical microcrystalline diamond (MCD) coating which is deposited on a flat tungsten carbide substrate using the hot filament chemical vapor deposition method (HFCVD). Besides the MCD sample, a polished MCD film (pMCD) and a polished tungsten carbide (pWC) are also adopted in frictional tests, aiming at illustrating the influence of the surface morphology, as well as the physical property, of the sample on the lubricative effect of graphene layers. The experimental results show that graphene layers can effectively reduce the coefficient of friction (COF), regardless of the samples. The MCD sample presents the lowest stable COF, which is 0.13, in dry sliding period when the graphene flakes are sparyed on the sliding interface; while the pMCD and pWC samples exhibit slightly higher COFs, which are 0.16 and 0.18, respectively. Comparatively, the COFs of these three samples obtained in dry sliding process without graphene are 0.20, 0.25 and 0.64. In additon, the MCD sample exhibits a much longer stable dry slidng process which is more than 5000 cycles. Comparatively, the other two tribo-pairs only exhibit a stable low-COF dry sliding period for around 2000 cycles. The reduction of COF could be attributed to the graphene flakes adhered on the sliding interface. It forms a layer of solid lubricative film with extremely low shear strength and significantly decreases the interactions between two contacted surfaces. The rugged surface of the MCD film provides sufficient clogging locations for graphene flakes, which allows the generated lubricative film enduring a long sliding duration. It can be arrived from this study that the tribological properties of the MCD film could be enhanced by simply adoping graphene layers as a solid lubricant. Furthermore, an improved performance of a variety of MCD coated cutting tools or mechanical components could be expected when they are utilized with graphene layers.

• Periodical: Advanced Materials Research (Volume 1136)
• Pages: 573-578
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1136.573
• Online since: January 2016
• Authors: Su Lin Chen, Bin Shen*, Fang Hong Sun
• Keywords: Diamond Coating, Friction, Graphene Layers, Surface Morphology

References

[1] Tomé MA, Fernandes AJS, Oliveira FJ, Silva RF, Carrapichano JM. High performance sealing with CVD diamond self-mated rings, Diamond and Related Materials. 2005; 14: 617-621.

DOI: 10.1016/j.diamond.2004.12.053

[2] Heaney PJ, Sumant AV, Torres CD, Carpick RW, Pfefferkorn FE. Diamond coatings for micro end mills: Enabling the dry machining of aluminum at the micro-scale, Diamond and Related Materials. 2008; 17: 223-233.

DOI: 10.1016/j.diamond.2007.12.009

[3] Shen B, Sun F. Deposition and friction properties of ultra-smooth composite diamond films on Co-cemented tungsten carbide substrates, Diamond and Related Materials. 2009; 18: 238-243.

DOI: 10.1016/j.diamond.2008.10.053

[4] Berman D, Erdemir A, Sumant AV. Few layer graphene to reduce wear and friction on sliding steel surfaces, Carbon. 2013; 54: 454-459.

DOI: 10.1016/j.carbon.2012.11.061

[5] Berman D, Erdemir A, Sumant AV. Reduced wear and friction enabled by graphene layers on sliding steel surfaces in dry nitrogen, Carbon. 2013; 59: 167-175.

DOI: 10.1016/j.carbon.2013.03.006

[6] Won M-S, Penkov OV, Kim D-E. Durability and degradation mechanism of graphene coatings deposited on Cu substrates under dry contact sliding, Carbon. 2013; 54: 472-481.

DOI: 10.1016/j.carbon.2012.12.007

[7] Liu Y, Wang X, Pan G, Luo J. A comparative study between graphene oxide and diamond nanoparticles as water-based lubricating additives, Science China Technological Sciences. 2012; 56: 152-157.

DOI: 10.1007/s11431-012-5026-z

[8] Chen SL, Shen B, Sun FH. Tribo-Map of CVD Diamond Film Sliding against Silicon Nitride in Air, Key Engineering Materials. 2013; 589-590: 405-410.

DOI: 10.4028/www.scientific.net/kem.589-590.405
