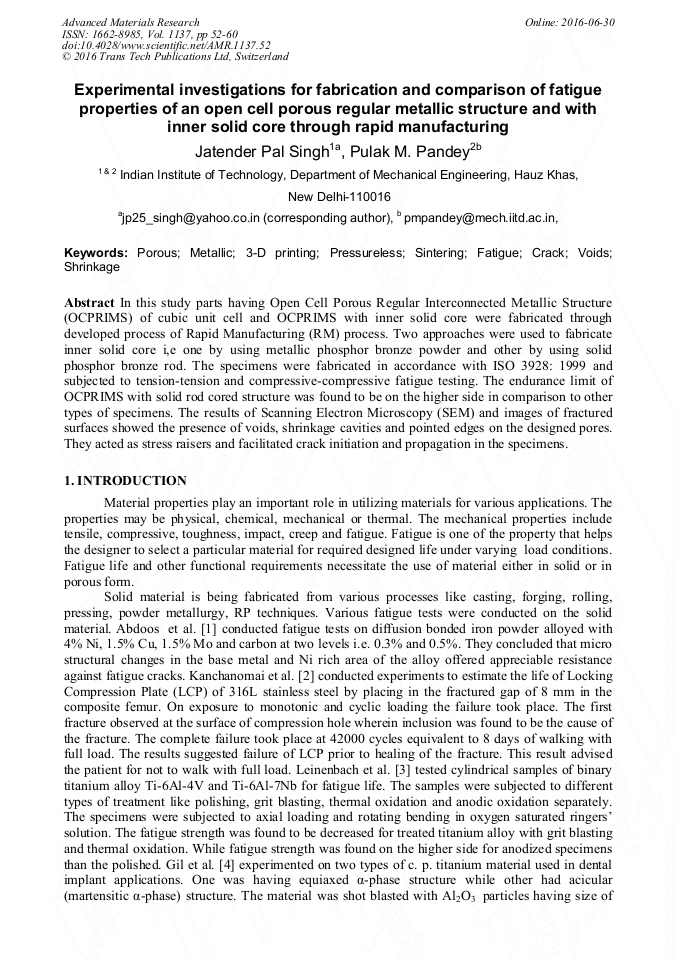

Experimental Investigations for Fabrication and Comparison of Fatigue Properties of an Open Cell Porous Regular Metallic Structure and with Inner Solid Core through Rapid Manufacturing

Abstract:

In this study parts having Open Cell Porous Regular Interconnected Metallic Structure (OCPRIMS) of cubic unit cell and OCPRIMS with inner solid core were fabricated through developed process of Rapid Manufacturing (RM) process. Two approaches were used to fabricate inner solid core i,e one by using metallic phosphor bronze powder and other by using solid phosphor bronze rod. The specimens were fabricated in accordance with ISO 3928: 1999 and subjected to tension-tension and compressive-compressive fatigue testing. The endurance limit of OCPRIMS with solid rod cored structure was found to be on the higher side in comparison to other types of specimens. The results of Scanning Electron Microscopy (SEM) and images of fractured surfaces showed the presence of voids, shrinkage cavities and pointed edges on the designed pores. They acted as stress raisers and facilitated crack initiation and propagation in the specimens.

• Periodical: Advanced Materials Research (Volume 1137)
• Pages: 52-60
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1137.52
• Online since: June 2016
• Authors: Jatender Pal Singh*, Pulak M. Pandey
• Keywords: 3-D Printing, Crack, Fatigue, Metallic, Porous, Pressureless, Shrinkage, Sintering, Voids

References

[1] H. Abdoos, H. Khorsand, A.R. Shahani., Fatigue behavior of diffusion bonded metallurgy steel with heterogeneous microstructure, Materials and Design 30, (2009) 1026-1031.

DOI: 10.1016/j.matdes.2008.06.050

[2] C. Kanchanomai, V. Phiphobmongkol, P. Muanjan, Fatigue failure of an orthopedic implant-A locking compression plate, Engineering Failure Analysis 15, (2008), 521-530.

DOI: 10.1016/j.engfailanal.2007.04.001

[3] C. Leinenbach, D. Ejfler, Fatigue and cyclic deformation behavior of surface-modified titanium alloys in simulated physiological media, Biomaterials 27, (2006), 1200-1208.

DOI: 10.1016/j.biomaterials.2005.08.012

[4] F.J. Gil, J.A. Planell, A. Padros, C. Aparicio, The effect of shot blasting and heat treatment on the fatigue behavior of titanium for dental implant applications. Dental Materials 23, (2007), 486-491.

DOI: 10.1016/j.dental.2006.03.003

[5] B.A. James, R.A. Sire, Fatigue-life assessment and validation techniques for vascular implants. Biomaterials 31, (2010)181-185.

DOI: 10.1016/j.biomaterials.2009.10.028

[6] M.F. Ashby, A.G. Evans, N.A. Fleck, L.J. Gibson, J. W Hutchinson, H.N.G. Wadley (2000) Metal Foam : A Design Guide. Butterworth Heinermamm press.

[7] G. Ryan, A. Pandit, D.P. Apatsidis, Fabrication methods of porous metals for use in orthopedics applications, Biomaterials. 27, (2010) 2651-2670.

DOI: 10.1016/j.biomaterials.2005.12.002

[8] V.K. Balla, S. Bodhak, S. Bose, A. Bandyopadhyay, Low stiffness porous Ti Structure for load bearing implants, Acta Biomaterialia 2, (2007) 997-1006.

DOI: 10.1016/j.actbio.2007.03.008

[9] V.K. Balla, S. Bodhak , S. Bose, A. Bandyopadhyay , Porous tantalum structures for bone implants: Fabrication, mechanical & in vitro biological properties, Acta Biomaterialia 6 (2010) 3349-3359.

DOI: 10.1016/j.actbio.2010.01.046

[10] J. Parthasarathy, B. Starly, S. Raman, A. Christensen , Mechanical evaluation of porous titanium (Ti6Al4V) structures with electron beam melting (EBM). Journal of the Mechanical behavior of biomedical materials 3 (2010) 249-259.

DOI: 10.1016/j.jmbbm.2009.10.006

[11] S.M. Ahmadi, G. Campoli, S.A. Yavari, B. Sajadi, R. Wauthle, J. Schrooten, H. Weinans , .A. , Mechanical behavior of regular open-cell porous biomaterials made of diamond lattice unit cells. Journal of Mechanical behavior of biomedical material. 34 (2014).

DOI: 10.1016/j.jmbbm.2014.02.003

[12] J. Banhart , W. Brinkers Where Fatigue behavior of aluminium foams, Journal of materials science letters. 18, (1999), 617-619.

[13] S. Kashef , A. Asgari , T.B. Hildtch TB, Yan W, Goel VK, Hodgson, PD Fatigue crack growth behavior of titanium foam for medical applications. Materials science and Engineering A. A528, (2010)1602-1607.

DOI: 10.1016/j.msea.2010.11.024

[14] A.M. Harte, Fleck NA, Ashby , Fatigue failure of an open cell and closed cell aluminium alloy foam. Acta matter 47(8), 2511-2524.

DOI: 10.1016/s1359-6454(99)00097-x

[15] ISO 3928: 1999. Sintered metal materials excluding hard metals-Fatigue test pieces.
