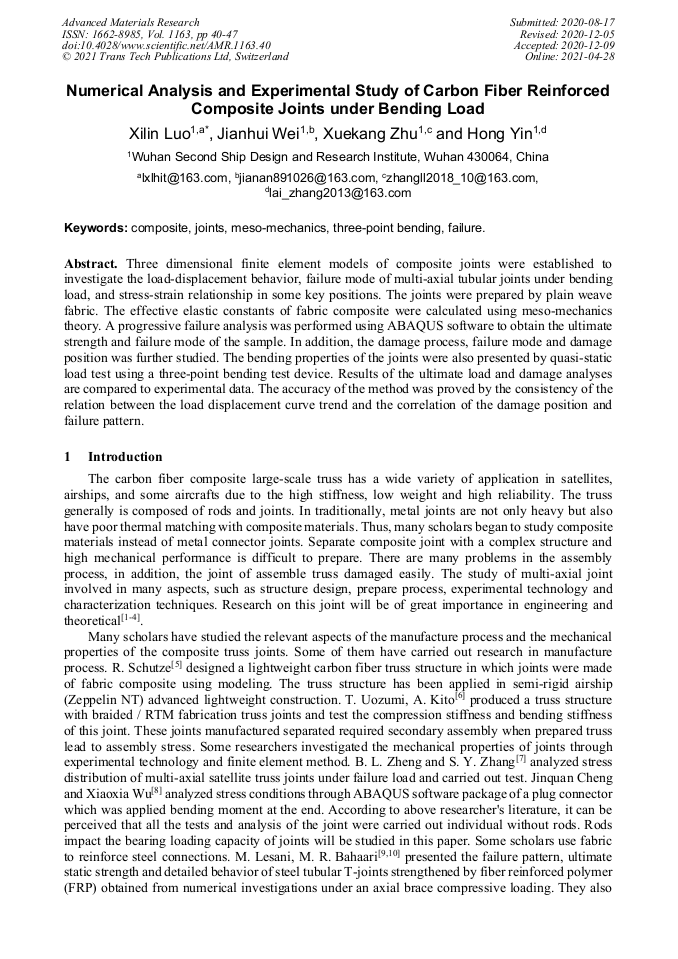

Numerical Analysis and Experimental Study of Carbon Fiber Reinforced Composite Joints under Bending Load

Abstract:

Three dimensional finite element models of composite joints were established to investigate the load-displacement behavior, failure mode of multi-axial tubular joints under bending load, and stress-strain relationship in some key positions. The joints were prepared by plain weave fabric. The effective elastic constants of fabric composite were calculated using meso-mechanics theory. A progressive failure analysis was performed using ABAQUS software to obtain the ultimate strength and failure mode of the sample. In addition, the damage process, failure mode and damage position was further studied. The bending properties of the joints were also presented by quasi-static load test using a three-point bending test device. Results of the ultimate load and damage analyses are compared to experimental data. The accuracy of the method was proved by the consistency of the relation between the load displacement curve trend and the correlation of the damage position and failure pattern.

• Periodical: Advanced Materials Research (Volume 1163)
• Pages: 40-47
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1163.40
• Online since: April 2021
• Authors: Xi Lin Luo*, Jian Hui Wei, Xue Kang Zhu, Hong Yin
• Keywords: Composite, Failure, Joints, Meso-Mechanics, Three-Point Bending

References

[1] Fan J.F., Cheng X.Q., Wang S.W., Guo X., Zhang T. Experimental and numerical investigation of composite bolted π-joint subjected to bending load. Compos. Part B. 78 (2015) 324-330.

DOI: 10.1016/j.compositesb.2015.03.094

[2] Y. Zhang, Z. Zhou, Z. Tan, Experimental and Finite Element Research on the Failure Mechanism of C/C Composite Joint Structures under Out-of-Plane Loading, Materials. 12.18 (2019) 2922-2939.

DOI: 10.3390/ma12182922

[3] Zhang W., Liang X., Li M., et al. Experimental and numerical studies on compaction of carbon fiber composite joint with variable cross-section using thermal expansion process, Polym. Composite. (2019).

DOI: 10.1002/pc.24822

[4] Y. Wu, B. Nan, L. Chen, Mechanical Performance and Parameter Sensitivity Analysis of 3D Braided Composites Joints, Sci. World J. (2014) 1-9.

DOI: 10.1155/2014/476262

[5] R. Schutze, Lightweight carbon fibre rods and truss structures, Mater. Des. 18.4/6 (1997) 231-238.

[6] T. Uozumi, A. Kito, Carbon Fibre-Reinforced Plastic Truss Structures for Satellite Using Braiding/Resin Transfer Moulding Process, Proc. Inst. Mech. Eng., Part L: J. Mater.: Des. Appl. 221(2007) 93-101.

DOI: 10.1243/14644207jmda50

[7] B.L. Zheng, S.Y. Zhang, P.F. He, et al. Experiments and analyses for carbon fiber reinforced composite multi-joints of the satellite antenna truss, Acta Mater. Compositae Sin. 22.6 (2005) 172-177.

[8] J.Q. Cheng, X.X. Wu, Design and Analysis of a Smart Composite Pipe Joint System Integrated with Piezoelectric Layers under Bending, Int. J. Solids Struct.44 (2007) 298–319.

DOI: 10.1016/j.ijsolstr.2006.04.021

[9] M. Lesani, M.R. Bahaari, M.M. Shokrieh, Numerical investigation of FRP-strengthened tubular T-joints under axial compressive loads, Compos. Struct. 100 (2013) 71-78.

DOI: 10.1016/j.compstruct.2012.12.020

[10] M. Lesani, M.R. Bahaari, M.M. Shokrieh, Detail investigation on un-stiffened T/Y tubular joints behavior under axial compressive loads, J. Constr. Steel Res. 80 (2013) 91-99.

DOI: 10.1016/j.jcsr.2012.09.016

[11] A.P. Jirandehi, T.N. Chakherlou. A fatigue crack initiation and growth life estimation method in single-bolted connections[J]. J. Strain Anal. Eng. 54.2 (2019) 79-94.

DOI: 10.1177/0309324719829274
