For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Structure Sensitivity of Sol-Gel Alkali Tantalates, ATaO3 (A= Li, Na and K): Acetone Gas Phase Condensation
p.61
Phase Stabilization of Mesoporous Mn-Promoted ZrO2: Influence of the Precursor
p.68
Promotional Effect of Gadolinia on CuO Catalyst for Reduction of NO by Activated Carbon
p.76
Synthesis and Photocatalytic Performance of Hierarchical Porous Titanium Phosphonate Hybrid Materials
p.87
Role of Nanocrystalline Titania Phases in the Photocatalytic Oxidation of NO at Room Temperature
p.96
Chitin/TiO2 Composite for Photocatalytic Degradation of Phenol
p.105
Catalytic Properties of Ni-Mo Carbide and Nitride Phases Supported on SBA-15 and -16 in the Hydrodesulfurization of DBT
p.111
Oxidative Removal of Dibenzothiophene by H2O2 over Activated Carbon-Supported Phosphotungstic Acid Catalysts
p.126
Adsorptive Removal of Dibenzothiophene in Diesel Fuel on an Adsorbent from Rice Hull Activated by Phosphoric Acid
p.133

Role of Nanocrystalline Titania Phases in the Photocatalytic Oxidation of NO at Room Temperature

Article Preview

Abstract:

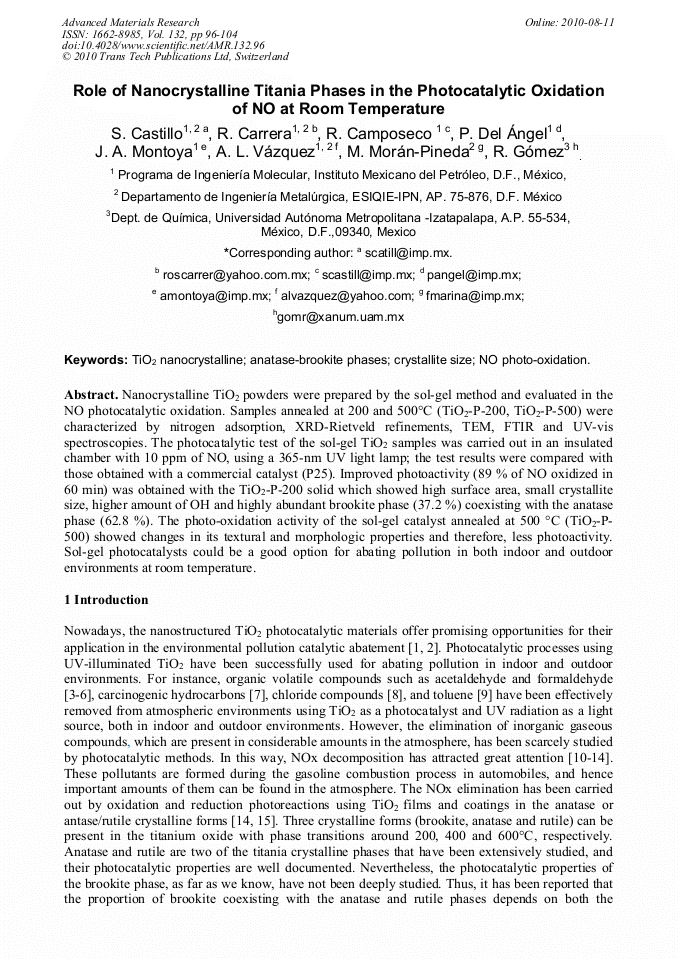

Nanocrystalline TiO2 powders were prepared by the sol-gel method and evaluated in the NO photocatalytic oxidation. Samples annealed at 200 and 500°C (TiO2-P-200, TiO2-P-500) were characterized by nitrogen adsorption, XRD-Rietveld refinements, TEM, FTIR and UV-vis spectroscopies. The photocatalytic test of the sol-gel TiO2 samples was carried out in an insulated chamber with 10 ppm of NO, using a 365-nm UV light lamp; the test results were compared with those obtained with a commercial catalyst (P25). Improved photoactivity (89 % of NO oxidized in 60 min) was obtained with the TiO2-P-200 solid which showed high surface area, small crystallite size, higher amount of OH and highly abundant brookite phase (37.2 %) coexisting with the anatase phase (62.8 %). The photo-oxidation activity of the sol-gel catalyst annealed at 500 °C (TiO2-P-500) showed changes in its textural and morphologic properties and therefore, less photoactivity. Sol-gel photocatalysts could be a good option for abating pollution in both indoor and outdoor environments at room temperature.

You might also be interested in these eBooks
Advances in New Catalytic Materials View Preview

Info:

Periodical:

Advanced Materials Research (Volume 132)

Pages:

96-104

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.132.96

Citation:

Cite this paper

Online since:

August 2010

Authors:

S. Castillo, R. Carrera, R. Camposeco, P. Del Angel, J.A. Montoya, A.L. Vázquez, M. Morán-Pineda, Ricardo Gómez

Keywords:

Anatase-Brookite Phases, Crystallite Size, NO Photo-Oxidation, TiO2 Nanocrystalline

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] N Stock, J Séller, K Vinodgal, P Kamat: Environ. Sci. Techmol. Vol. 34 (2000), p, 1747.

Google Scholar

[2] J Lee, Y Yang: Mater. Chem. Phys. Vol 93 (2005), p.237.

Google Scholar

[3] M Takeuchi, T Kimura, M Hidaka, M Rakhmawaty, M Anpo: J. Catal. Vol. 246 (2007), p.235.

Google Scholar

[4] K Nishijima, B Ohtani, X Yan, T Kamai, T Chiyoya, T Tsubota, N Murakami, T Ohno: Chem, Phys. Vol. 339 (2007), p.64.

DOI: 10.1016/j.chemphys.2007.06.014

Google Scholar

[5] F Shiraishi, S Yamaguchi, Y Ohbuchi: Chem. Eng. Sci. Vol. 58 (2003), p.929.

Google Scholar

[6] F Shiraishi, D Ohkubo, K Toyoda, S Yamaguchi: Chem. Eng. Sci. Vol. 114 (2005), p.159.

Google Scholar

[7] U Diebold: Surf. Sci. Reports Vol. 48 (2001), p.53.

Google Scholar

[8] I Arabatzis, S Antonaraki, T Stergiopoulos, A Hiskia, E Papaconstantinou, M Bernard, P Falaras: J. Photochem. Photobiol. A Vol. 149 (2002), p.237.

DOI: 10.1016/s1010-6030(01)00645-1

Google Scholar

[9] J Zhao, X Yang: Building and Environment Vol. 38 (2003), p.645.

Google Scholar

[10] C Ao, S Lee, C Mak, L Chan: Appl. Catal. B Vol. 42 (2003), p.119.

Google Scholar

[11] S Devahasdin, C Fan, K Li, D Chen: J. Photochem. Photobiol. A Vol. 156 (2003), p.161.

Google Scholar

[12] T Maggos, J Bartzis, M Liakou, C Gobin: J. Hazardous Materials Vol. 146 (2007), p.668.

DOI: 10.1016/j.jhazmat.2007.04.079

Google Scholar

[13] T Lim, S Jeon, S Kim, J Gyenis: J. Photochem. Photobiol. A Vol. 134 (2000), p.209.

Google Scholar

[14] H Ibrahim, H Lasa: Appl. Catal. B Vol. 38 (2002), p.201.

Google Scholar

[15] D Uhlman, G Teowe: J. Sol Gel Sci. Thecnol. Vol. 13 (1998), p.153.

Google Scholar

[16] Y Hu, H Tsai, C Huang: J. Euro. Ceram. Soc. Vol. 23 (2003), p.691.

Google Scholar

[17] I Kuznetsova, V Blaskov, L Znaidi: Mater. Sci. Eng. B Vol. 137 (2007), p.31.

Google Scholar

[18] R Bhave, B Lee: Mater. Sci. Eng. A Vol. 467 (2007), p.146.

Google Scholar

[19] D Bahnemann: Res. Chem. Intermed. Vol. 26 (2000), p.207.

Google Scholar

[20] Rodríguez-Carbajal: J. Phys. B Vol. 192 (1993), p.55.

Google Scholar

[21] X Orlhac, C Fillet, P Deniard, A Dulac, R Brec: Appl. Cryst. Vol. 34 (2001), p.114.

DOI: 10.1107/s0021889800017908

Google Scholar

[22] L Fuentes (1998) Análisis de minerales y el método de Rietveld, Sociedad Mexicana de Cristalografía, A.C., Mexico.

Google Scholar

[23] S Castillo, M Morán-Pineda, V Molina, R Gómez, T López: Appl. Catal. B Vol. 15 (1998), p.203.

Google Scholar

[24] E Sánchez, T López: Mat. Lett. Vol. 25 (1995), p.271.

Google Scholar

[25] K Reddy, S Manorama, A Reddy: Mat. Chem. Phys. Vol. 78 (2002), p.239.

Google Scholar

[26] C Sanchez, J Livage, M Henry, M Babonneau: J. Non-Cryst- Solids Vol. 100 (1988), p.65.

Google Scholar

[27] H Q Wang, Z B Wu, W R Zhao, B H Guan: Chemosfere Vol. 66 (2007), p.185.

Google Scholar

[28] H Zhang, J Banfield: J. Mater. Chem. Vol. 8 (1998), p. (2073).

Google Scholar

[29] H Zhang, J Banfield: J. Phys. Chem. B Vol. 104 (2000), p.3481.

Google Scholar

[30] K Zhu, M Zhang, J Hong, Z Yin: Mater. Sci. Eng. A Vol. 403 (2005), p.87.

Google Scholar

[31] J Ovenstone: J. Mater Sci. Vol. 36 (2001), p.1325.

Google Scholar

[32] C Radhica, B Bhave, I Lee: Mater. Sci. Eng. A Vol. 467 (2007), p.146.

Google Scholar

[33] J A Wang, R Lima-Ballesteros, T López, A Moreno, R Gómez, O Novaro, X Bokhimi: J Phys. Chem. B Vol. 105 (2001), p.9692.

Google Scholar

[34] K Okada, N Yamamoto, Y Kameshima, A Yasumori: J. Am. Ceram. Soc. Vol. 84 (2001), p.1591.

Google Scholar

[35] X Bokhimi, A Morales, O Novaro, T López, E Sánchez, R Gómez: J. Mater. Res. Vol. 10 (1995), p.2788.

Google Scholar

[36] Y Sun, T Egawa, L Zhang, X Yao: Jpn. J. Appl. Phys. 41 (2002), p. L945.

Google Scholar

[37] K M Reddy, C V Gopal Reddy, S V Manorama: J. Solid State Chem. Vol. 158 (2001), p.180.

Google Scholar

[38] T Tora, K Hiroshi, S Ping, K Akihik, O Masahiro: Jpn. J. Appl. Phys. 5B 39 (2000), p.3160.

Google Scholar

[39] L Bras: J. Chem. 90 (1986), p.2555.

Google Scholar

[40] J Rino, N Studart: Phys. Rev. B Vol. 59 (1999), p.6643.

Google Scholar

[41] K Kanaca, J White: J. Phys. Chem. 86 (1982), p.4708.

Google Scholar

[42] M Ampo, Y Ichihashi, M Takeuchi, H Yamashita: Res. Chem. Intermed. Vol. 24 (1998), p.143.

Google Scholar

[43] U Diebold: Surf. Sci. Reports Vol. 48 (2003), p.53.

Google Scholar

[44] I Kuznetsova, V Blaskov, L Znaidi: Mater. Sci. Eng. B Vol. 137 (2007), p.31.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
