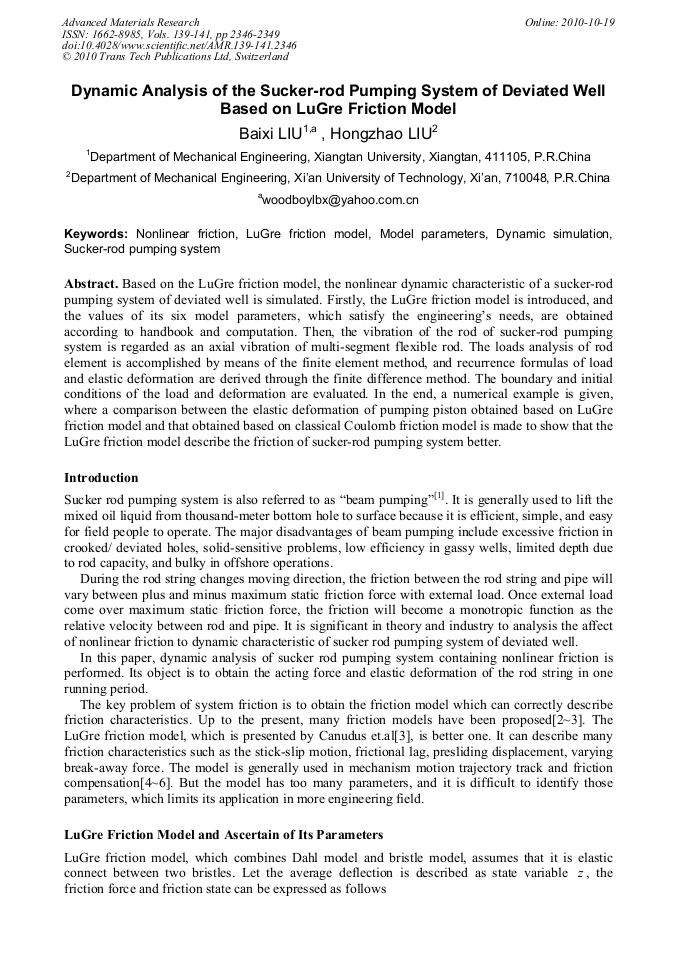

Dynamic Analysis of the Sucker-Rod Pumping System of Deviated Well Based on LuGre Friction Model

Abstract:

Based on the LuGre friction model, the nonlinear dynamic characteristic of a sucker-rod pumping system of deviated well is simulated. Firstly, the LuGre friction model is introduced, and the values of its six model parameters, which satisfy the engineering’s needs, are obtained according to handbook and computation. Then, the vibration of the rod of sucker-rod pumping system is regarded as an axial vibration of multi-segment flexible rod. The loads analysis of rod element is accomplished by means of the finite element method, and recurrence formulas of load and elastic deformation are derived through the finite difference method. The boundary and initial conditions of the load and deformation are evaluated. In the end, a numerical example is given, where a comparison between the elastic deformation of pumping piston obtained based on LuGre friction model and that obtained based on classical Coulomb friction model is made to show that the LuGre friction model describe the friction of sucker-rod pumping system better.

• Periodical: Advanced Materials Research (Volumes 139-141)
• Pages: 2346-2349
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.139-141.2346
• Online since: October 2010
• Authors: Bai Xi Liu, Hong Zhao Liu
• Keywords: Dynamic Simulation, LuGre Friction Model, Model Parameters, Nonlinear Friction, Sucker-Rod Pumping System

References

[1] Y. Peng, W. Yan and S. Wang. A quick recursion arithmetic of calculating pump dynamograph of the sucker-rod pumping system[J]. Drilling and Production Technology, 2001, Vol. 24(6): 45-47.

[2] B. Armstrong-helouvry, P. Dupont, C. Canudas-de-Wit. A survey if models, analysis tools and compensation methods for the control of machines and friction[J]. Automatica, 1994, Vol. 30(7): 1083-1138.

DOI: 10.1016/0005-1098(94)90209-7

[3] C. Canudas-de-Wit, H. Olsson, K. J. Astrom, et al. A new model for control of system with friction[J]. IEEE Transactions on Automatic Control, 1995, Vol. 40(3): 419-425.

DOI: 10.1109/9.376053

[4] R. Guerra, L. Acho and L. Aguilar. Adaptive friction compensation for mechanisms: a new perspective[J]. International Journal of Robotics & Automation, 2007, Vol. 22(2): 155-159.

DOI: 10.2316/journal.206.2007.2.206-2942

[5] N. P. Hoffmann. Linear stability of steady sliding in point contacts with velocity dependent and LuGre type friction[J]. Journal of Sound and Vibration, 2007, Vol. 301(5): 1023-1034.

DOI: 10.1016/j.jsv.2006.10.010

[6] H. Zeng and N. Sepehri. Tracking control of hydraulic actuators using a LuGre friction model compensation[J]. Journal of Dynamic Systems Measurement and Control, Transactions of the ASME, 2008, Vol. 130(1): 116-122.

DOI: 10.1115/1.2807181

[7] B. Liu and H. Liu. Dynamic Prediction of Sucker-rod Pumping System of Directional Well Considering Nonlinear Friction[J]. Acta Petrolei Sinica, 2008, Vol. 29(6): 938-941.
