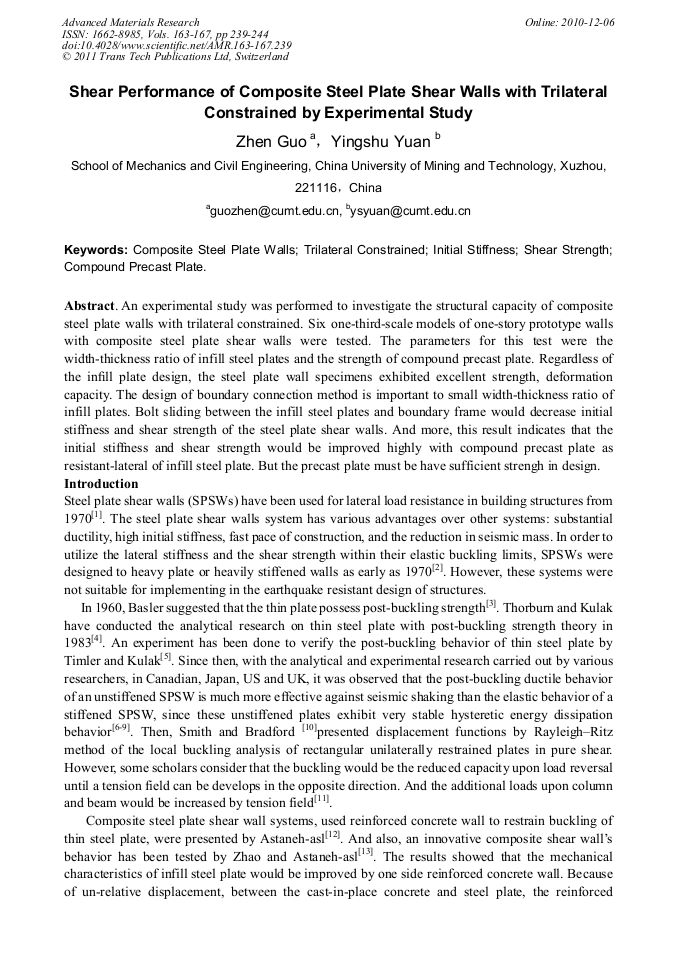

Shear Performance of Composite Steel Plate Shear Walls with Trilateral Constrained by Experimental Study

Abstract:

An experimental study was performed to investigate the structural capacity of composite steel plate walls with trilateral constrained. Six one-third-scale models of one-story prototype walls with composite steel plate shear walls were tested. The parameters for this test were the width-thickness ratio of infill steel plates and the strength of compound precast plate. Regardless of the infill plate design, the steel plate wall specimens exhibited excellent strength, deformation capacity. The design of boundary connection method is important to small width-thickness ratio of infill plates. Bolt sliding between the infill steel plates and boundary frame would decrease initial stiffness and shear strength of the steel plate shear walls. And more, this result indicates that the initial stiffness and shear strength would be improved highly with compound precast plate as resistant-lateral of infill steel plate. But the precast plate must be have sufficient strengh in design.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 239-244
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.239
• Online since: December 2010
• Authors: Zhen Guo, Ying Shu Yuan
• Keywords: Composite Steel Plate Wall, Compound Precast Plate, Initial Stiffness, Shear Strength, Trilateral Constrained

References

[1] Roberts T. M. Seismic resistance of steel plate shear walls[J]. Engineering Structures. 1995, 17(5): 344-351.

DOI: 10.1016/0141-0296(95)00017-2

[2] Berman Jeffrey W., Vian Darren, Bruneau Michel. Steel Plate Shear Walls-From Research to Codification[C]. Proceeding of the ASCE 2005 structures congress. New York: ASCE, (2005).

DOI: 10.1061/40753(171)179

[3] Basler K. Strength of plate girders in shear[J]. ASCE Journal of the Structural Division. 1961, 87(7): 150-180.

[4] Thorburn LJ, Kulak GL, Montgomery CJ. Analysis of steel plate shear walls[R]. Structural Engineering Report No. 107. Department of Civil Engineering, Universtiy of Alberta. Edmonton, Alberta, Canada. (1983).

[5] Timler P. A., Kulak G. L. Experimental study of steel plate shear walls[R]. Dept. of Civil Engineering, Univ. of Alberta, Edmonton, Albta. Canada. (1983).

[6] Elgaaly M. Post-buckling behavior of thin steel plates using computational models[J]. Advances in Engineering Software. 2000, 31(8-9): 511-517.

DOI: 10.1016/s0965-9978(00)00037-5

[7] Elgaaly Mohamed. Thin steel plate shear walls behavior and analysis[J]. Thin-Walled Structures. 1998, 32(1-3): 151-180.

DOI: 10.1016/s0263-8231(98)00031-7

[8] Sabouri-Ghomi S., Gholhaki M. Ductility of thin steel plate shear walls[J]. ASIAN JOURNAL OF CIVIL ENGINEERING (BUILDING AND HOUSING). 2008, 9(2): 153-166.

DOI: 10.1061/41016(314)109

[9] Zhao Qiuhong, Astaneh-Asl A. Experimental and Analytical Studies of a Steel Plate Shear Wall System[C]. Crossing Borders. Vancouver, BC, Canada: ASCE, (2008).

DOI: 10.1061/41016(314)106

[10] Smith S. T., Bradford M. A., Oehlers D. J. Elastic buckling of unilaterally constrained rectangular plates in pure shear[J]. EngineeringStructures. 1999, 21: 443–453.

DOI: 10.1016/s0141-0296(97)00218-6

[11] Alinia M. M., Dastfan M. The effects of surrounding members on post-buckling behaviour of thin steel plate shear walls (TSPSW)[C]. Proceedings of 4th International Conference on Advances in Steel Structures. Shanghai, China: (2005).

DOI: 10.1016/b978-008044637-0/50212-2

[12] Astaneh-Asl A. Seismic Behavior and design of composite steel plate shear walls[R]. Steel TIPS Report, Structural Steel Educational Council, Moraga, CA. (2002).

[13] Zhao Qiuhong, Astaneh-Asl A. Cyclic behavior of traditional and innovative composite shear walls[J]. Journal of Structural Engineering, ASCE. 2004, 130(2): 271-284.

DOI: 10.1061/(asce)0733-9445(2004)130:2(271)

[14] GUO Yanlin, DONG Quanl, i ZHOU Ming. Tests and analysis on hysteretic behavior of buckling-restrained steel plate shear wall [J]. Journal of Building Structures. 2009, 30(01) : 31-47. (in chinese).
