Piezoelectric Behavior Based on Mixing-Doped in Lead Zirconate Titanate Ceramics and Application

Abstract:

In this investigation, we extend our previous works to improve piezoelectric properties of Pb(Zr,Ti)O₃ ceramics. Modified lead zirconate titanate (PZT) piezoceramics with a composition Zr/Ti=53/47 containing a trace of mixing dopants were prepared by conventional ceramic technology sintering powder compacts. Replacement of (Zr, Ti)⁺⁴ by Nb⁺⁵, Pb⁺² by Sb⁺³ and Mn⁺⁴ in PZT perovskite type solid solutions was accomplished by the creation of cation and anion vacancies. Modified ceramics were explored as a function of firing temperature to acquire exceedingly good piezoelectric characterizations. From the analysis results, calcined at 850°C for 2 h, and then sintered at 1280°C for 2 h, PZT piezoceramic showed the larger dielectric constant er 2013, mechanical quality factor Qm 120 and maximum electromechanical coupling factor kp 0.67. Besides, the bulk ceramic grains distribution were found to be uniform. Furthermore, the sample was found to possess piezoelectric properties, the resonance frequency being about 200 KHz suitable for acoustic sensor.

You might also be interested in these eBooks

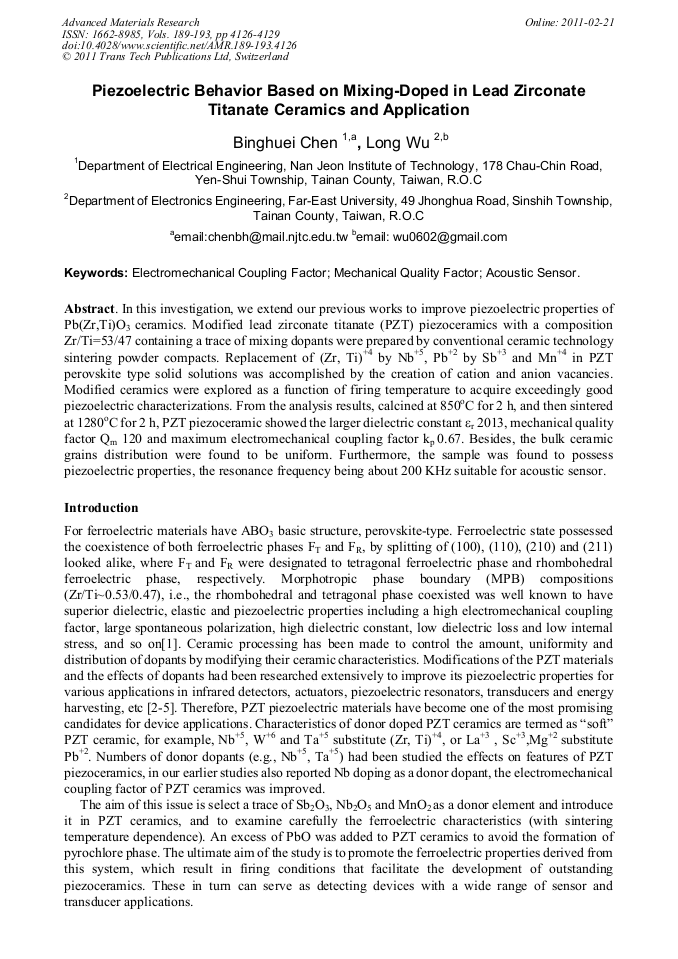

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

4126-4129

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.4126

Citation:

Cite this paper

Online since:

February 2011

Authors:

Bing Huei Chen, Long Wu

Keywords:

Acoustic Sensor, Electromechanical Coupling Factor, Mechanical Quality Factor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.A. Tuttle, J.A. Voigt, D.C. Goodnow, D.L. Lamppa, T.J. Headley, M.O. Eatough, G. Zender, R.D. Nasby and S.M. Rodgers, J. Am. Ceram. Soc. 76 (1993) 1537.

DOI: 10.1111/j.1151-2916.1993.tb03936.x

Google Scholar

[2] D. Dimos, H.N. Alshareef, W.L. Warren and B.A. Tuttle, J. Appl. Phys. 80 (1996) 1682.

Google Scholar

[3] M. Umeda, K. Nakamura and S. Ueha, 1996, Analysis of the transformation of mechanical impact energy to electrical energy using a piezoelectric vibrator, Japanese Journal of Applied Physics, 35(5B), Part1, pp.3267-3273.

DOI: 10.1143/jjap.35.3267

Google Scholar

[4] H. Haertling, Ferroelectrics, 75 (1987) 25.

Google Scholar

[5] G. Poulin, E. Sarraute and F. Costa, 2004, Generation of electric energy for portable device: comparative study of an electromagnetic and a piezoelectric system, Sensors Actuators A, 116, pp.461-471.

DOI: 10.1016/j.sna.2004.05.013

Google Scholar

[6] R. Bechmann, Proc. IRE, 49 (1961) 509.

Google Scholar

[7] R.B. Atkin, R.M. Fulrath, J. Am. Ceram. Soc. 54 (1971) 265.

Google Scholar

[8] A.H. Webster, T.B. Weston and N.F.H. Bright, J. Am. Ceram. Soc. 50 (1967) 490.

Google Scholar
