Detection of the Nanostructures in ZnO Thin Films by Using Optical Methods

Abstract:

The ZnO films deposited by reactive magnetron sputtering are investigated. SEM provides information on the composition of the films and enables us to observe the nanostructures. AFM provides information on the roughness and the texture of the surfaces. Fourier transform, photoluminescence and Raman scattering are used for confirmation of appropriate results. The spectral dependences of ellipsometric parameters Δ and Ψ are determined by ellipsometry and the effective values of optical constants n and k are calculated. As it can be indicated, the nanostructures in ZnO film are formed when reducing base pressure down to 2.5•10-7 mbar and elevating the temperature of the substrate up to 5500C. The amorphous structure is formed in most of other films (crystalline structure is formed at rather special conditions). Films containing considerable portions of impurities (generally carbon impurities) are formed at reduced base pressure. The values of optical constants of some of the films fit the appropriate Dumont and Jellison tabulations satisfactorily.

You might also be interested in these eBooks

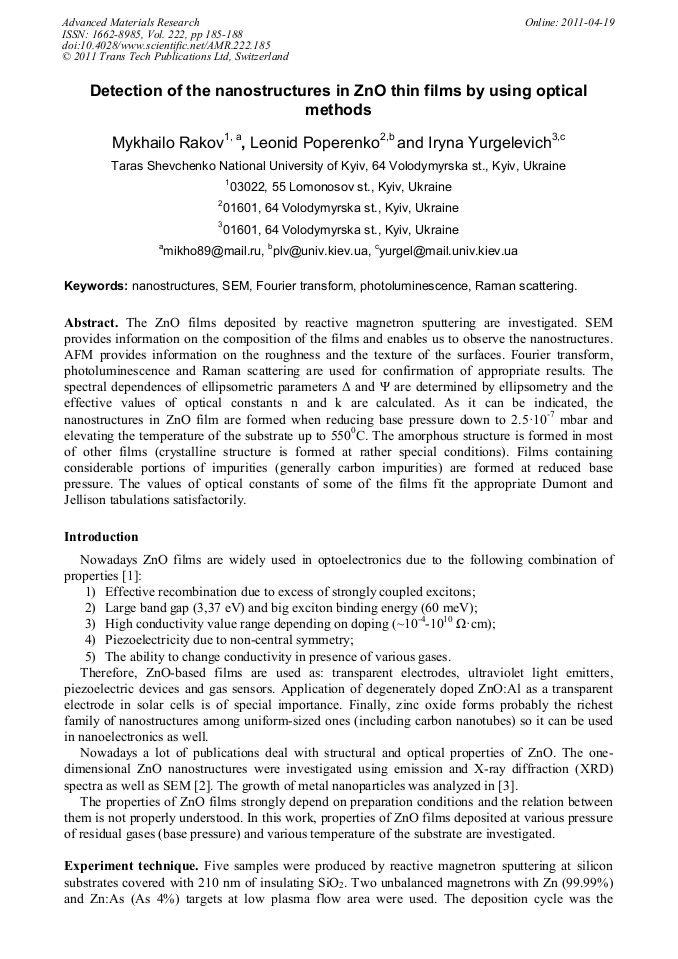

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 222)

Pages:

185-188

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.222.185

Citation:

Cite this paper

Online since:

April 2011

Authors:

Mykhailo Rakov, Leonid V. Poperenko, Iryna V. Yurgelevich

Keywords:

Fourier Transform, Nanostructure, Photoluminescence (PL), Raman Scattering, SEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Klaus Ellmer: Magnetron sputtering of transparent conductive zinc oxide: relation between the sputtering parameters and the electronic properties, Journal of Physics D: Applied Physics 33, USA (2000).

DOI: 10.1088/0022-3727/33/4/201

Google Scholar

[2] U. Ozgur, Ya.I. Alivov, C. Liu, A. Teke, M.A. Reshchikov, S. Dogan, V. Avrutin, S.J. Cho, H. Morkoc: A comprehensive review of ZnO materials and devices, Journal of Applied Physics 98, 041301, USA (2005).

DOI: 10.1063/1.1992666

Google Scholar

[3] T.W.H. Oates: Real time spectroscopic ellipsometry of nanoparticle growth, Applied Physics Letters 88, USA (2006).

Google Scholar

[4] L.V. Poperenko, V.S. Stashchuk, I.A. Shaikevych, V.A. Odarych, in: Diagnostics of the surface by polarized light, chapter 2, Kyiv University Press (2007).

Google Scholar
