Preparation and Properties of Solidified TiC-TiB2 with Hypoeutectic, Eutectic and Hypereutectic Microstructures

Xue Gang Huang; Long Zhang; Zhong Min Zhao; Chun Yin

doi:10.4028/www.scientific.net/AMR.233-235.999

Paper Titles

Phytochemical Screening and Alkaloid Identification of Cabomba furcata
p.971

Novel Brønsted Acidic Ionic Liquids Based on Benzimidazolium Cation: Synthesis and Catalyzed Conjugate Addition of Indoles with α,β-unsaturated Ketones
p.977

Pulse Electrochemical Polishing of 304 Stainless Steel: Interactive Effects of Bath Temperature, Pulse Duty Ratio, Polishing Time, and Current Density on Surface Reflectivity and Morphology
p.985

Kinetics of Camphene Esterification to Isobornyl Acetate
p.990

Preparation and Properties of Solidified TiC-TiB₂ with Hypoeutectic, Eutectic and Hypereutectic Microstructures
p.999

Efficient Production of n-3 Polyunsaturated Fatty Acid-Enriched Feed Oil from Soapstock
p.1005

Effect of Heat Treatment Process on Microstructure and Properties in Low Carbon Si-Mn Q&P Steel
p.1009

Purification and Characterization of Chitinases from Bacillus licheniformis Using Auricularia auricular Colloidal Substance as a Substrate
p.1014

Study on Microbial Adsorption on Material Surface Based on Dynamic-static Method
p.1018

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 233-235Preparation and Properties of Solidified TiC-TiB2...

Preparation and Properties of Solidified TiC-TiB₂ with Hypoeutectic, Eutectic and Hypereutectic Microstructures

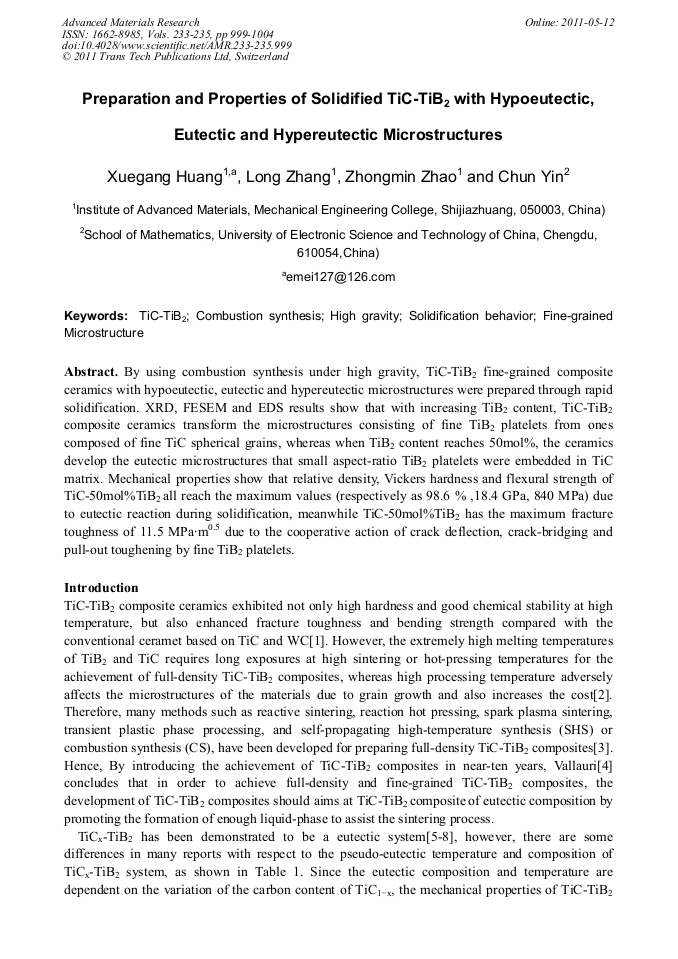

Abstract:

By using combustion synthesis under high gravity, TiC-TiB₂ fine-grained composite ceramics with hypoeutectic, eutectic and hypereutectic microstructures were prepared through rapid solidification. XRD, FESEM and EDS results show that with increasing TiB₂ content, TiC-TiB₂ composite ceramics transform the microstructures consisting of fine TiB₂ platelets from ones composed of fine TiC spherical grains, whereas when TiB₂ content reaches 50mol%, the ceramics develop the eutectic microstructures that small aspect-ratio TiB₂ platelets were embedded in TiC matrix. Mechanical properties show that relative density, Vickers hardness and flexural strength of TiC-50mol%TiB₂all reach the maximum values (respectively as 98.6 % ,18.4 GPa, 840 MPa) due to eutectic reaction during solidification, meanwhile TiC-50mol%TiB₂ has the maximum fracture toughness of 11.5 MPa∙m^0.5 due to the cooperative action of crack deflection, crack-bridging and pull-out toughening by fine TiB₂ platelets.
