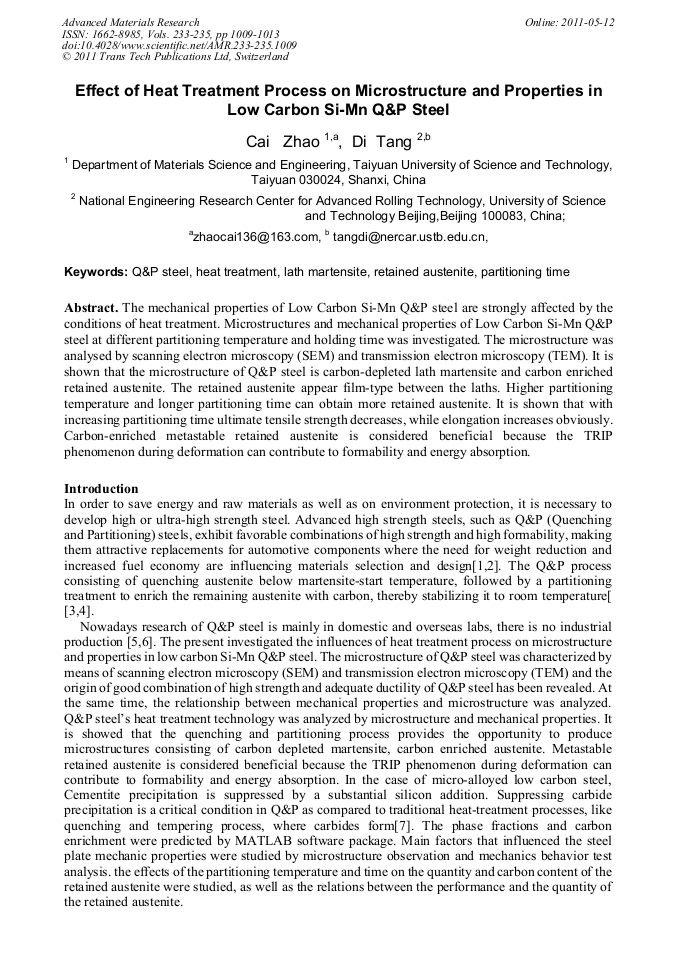

Effect of Heat Treatment Process on Microstructure and Properties in Low Carbon Si-Mn Q&P Steel

Abstract:

The mechanical properties of Low Carbon Si-Mn Q&P steel are strongly affected by the conditions of heat treatment. Microstructures and mechanical properties of Low Carbon Si-Mn Q&P steel at different partitioning temperature and holding time was investigated. The microstructure was analysed by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). It is shown that the microstructure of Q&P steel is carbon-depleted lath martensite and carbon enriched retained austenite. The retained austenite appear film-type between the laths. Higher partitioning temperature and longer partitioning time can obtain more retained austenite. It is shown that with increasing partitioning time ultimate tensile strength decreases, while elongation increases obviously. Carbon-enriched metastable retained austenite is considered beneficial because the TRIP phenomenon during deformation can contribute to formability and energy absorption.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 233-235)

Pages:

1009-1013

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.233-235.1009

Citation:

Cite this paper

Online since:

May 2011

Authors:

Cai Zhao, Di Tang

Keywords:

Heat Treatment, Lath Martensite, Partitioning Time, Q&P Steel, Retained Austenite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D.K. Matlock, V. E Brautigam and J.G. Speer: Mater. Sci. Forum Vol. 1089-1094(2003), p.426

Google Scholar

[2] D K Matlock, V E Bräutigam and J G Speer: Mater. Sci. Forum. Vol. 426-432(2003), p.1089

Google Scholar

[3] J.G. Speer, F.C. Rizzo and D.K Matlock: Materials Research.Vol. 8(2005), p.417

Google Scholar

[4] D.K Matlock, B.C. De Cooman and J.G. Schroth: Acta Materialia. Vol.51 (2003), p.2611

Google Scholar

[5] J.G. Speer, D.V Edmonds and F. C Rizzo: Current Opinion in Solid State and Materials Science. Vol. 8 (2004), p.219

Google Scholar

[6] K. I. Sugimoto, T.Iida andJ Sakaguchi: ISIJ International. Vol. 40(2000), p.902

Google Scholar

[7] E.V. Pereloma, I.B. Timokhina and P.D. Hodgson: Materials Science and Engineering. Vol. 275 (1999), p.448

Google Scholar
