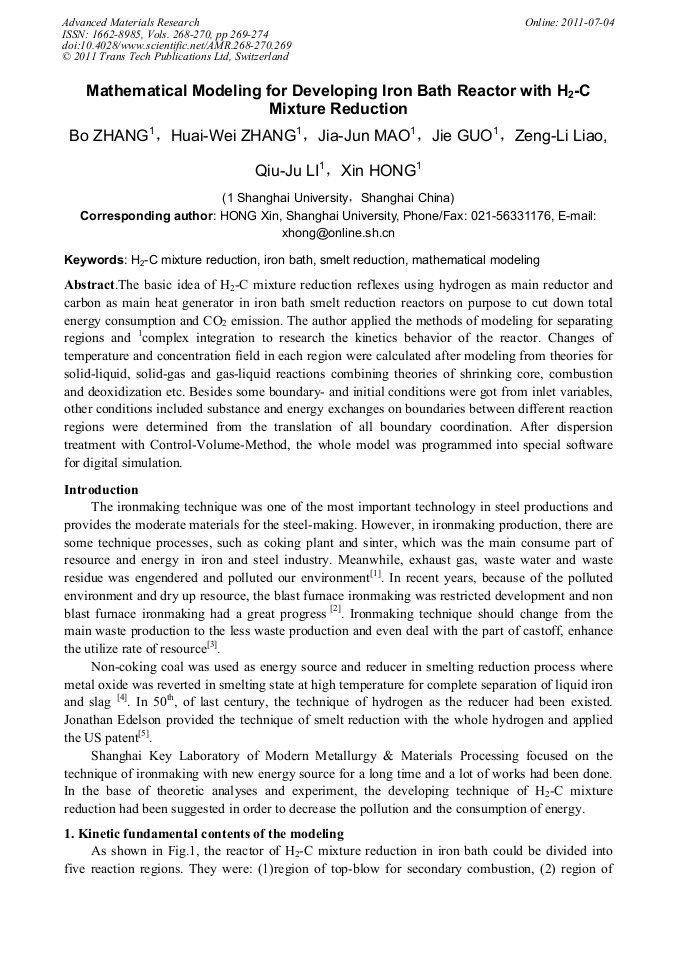

Mathematical Modeling for Developing Iron Bath Reactor with H₂-C Mixture Reduction

Abstract:

The basic idea of H₂-C mixture reduction reflexes using hydrogen as main reductor and carbon as main heat generator in iron bath smelt reduction reactors on purpose to cut down total energy consumption and CO₂ emission. The author applied the methods of modeling for separating regions and [1]complex integration to research the kinetics behavior of the reactor. Changes of temperature and concentration field in each region were calculated after modeling from theories for solid-liquid, solid-gas and gas-liquid reactions combining theories of shrinking core, combustion and deoxidization etc. Besides some boundary- and initial conditions were got from inlet variables, other conditions included substance and energy exchanges on boundaries between different reaction regions were determined from the translation of all boundary coordination. After dispersion treatment with Control-Volume-Method, the whole model was programmed into special software for digital simulation. Corresponding author: HONG Xin, Shanghai University, Phone/Fax: [phone], E-mail: [e-mail]

• Periodical: Advanced Materials Research (Volumes 268-270)
• Pages: 269-274
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.268-270.269
• Online since: July 2011
• Authors: Bo Zhang, Huai Wei Zhang, Jia Jun Mao, Jie Guo, Zeng Li Liao, Qiu Ju Li, Xin Hong
• Keywords: H2-C Mixture Reduction, Iron Bath, Mathematical Modeling, Smelting Reduction

References

[1] J.P. Birat, and J.P. Vizioz. CO2 emissions and the steel industry's available responses to the greenhouse cffect[J] . La Revue de Metallurgie, 1999, (10) : 1203-1215.

[2] Gudenau H. W, Hirsch M , Denecke H, Degel R. Process Technology Problems during the Direct Reduction of Fine Iron Ore in a Fluidized Bed with Hhrogen Rich Gas[J] . Stahl u Eisen, 1997, 117, 117 (4) : 91-99.

[3] Yin Ruiyu. The problem of green produce and iron and steel making green revolution [J]. technology and industry . 20033(9).

[4] Joo S, Kim，H G, Lee I O, FINEX: A New Process for Production of Hot Metal from Fine Ore and Coal[J] . Scand.J. Metall. 1999, 28, 28 : 178-183.

[5] [US Patent 5464464].

[6] WANG Daojing; CHEN Hua; LI Qiuju; HONG Xin. Experimental Studies on Quick Reduction of Fine Iron Ore with Hydrogen at Low Temperatures[J]. The Chinese Journal of Process Engineering, No. 4, (2007).
