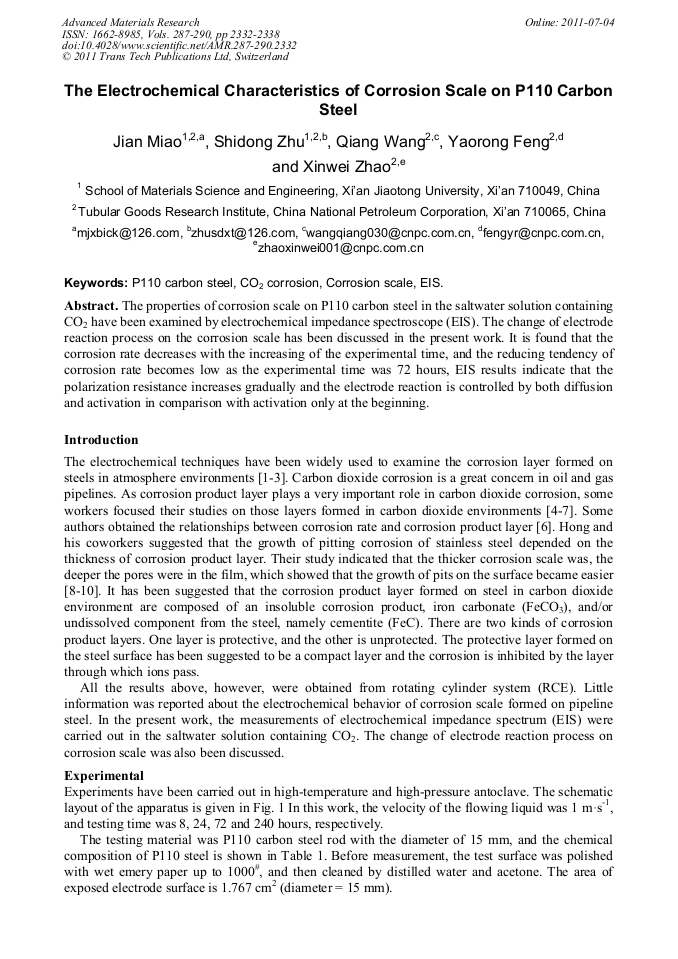

The Electrochemical Characteristics of Corrosion Scale on P110 Carbon Steel

Abstract:

The properties of corrosion scale on P110 carbon steel in the saltwater solution containing CO₂ have been examined by electrochemical impedance spectroscope (EIS). The change of electrode reaction process on the corrosion scale has been discussed in the present work. It is found that the corrosion rate decreases with the increasing of the experimental time, and the reducing tendency of corrosion rate becomes low as the experimental time was 72 hours, EIS results indicate that the polarization resistance increases gradually and the electrode reaction is controlled by both diffusion and activation in comparison with activation only at the beginning.

• Periodical: Advanced Materials Research (Volumes 287-290)
• Pages: 2332-2338
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.287-290.2332
• Online since: July 2011
• Authors: Jian Miao, Shi Dong Zhu, Qiang Wang, Yao Rong Feng, Xin Wei Zhao
• Keywords: CO₂ Corrosion, Corrosion Scale, EIS, P110 Carbon Steel

References

[1] H.C. Kou, D. Landolt, Galvanostatic transient study of anodic film formation on iron in concentrated chloride media, Corros. Sci. 16 (1976) 915-922.

DOI: 10.1016/s0010-938x(76)80011-x

[2] R.D. Grimm, D. Landolt, Salt films formed during mass transport controlled dissolution of iron-chromium alloys in concentrated chloride media, Corros. Sci. 36 (1994) 1847-1868.

DOI: 10.1016/0010-938x(94)90023-x

[3] H.S. Isaaca, J.H. Cho, M.L. Rivers, S.R. Sutton, In situ X-Ray microprobe study of salt layers during anodic dissolution of stainless steel in chloride solution, J Electrochem. Soc. 142 (1995) 1111-1118.

DOI: 10.1149/1.2044138

[4] R.D. Grimm, A. C. West and D. Landolt, AC impedance study of anodically formed salt films on iron in chloride solutions, J Electrochem. Soc. 139 (1992) 1622-1629.

DOI: 10.1149/1.2069467

[5] J.R. Park, D.D. Macdanald, Impedance studies of the growth of porous magnetite films on carbon steel in high temperature aqueous systems, Corros. Sci. 23 (1983) 295-315.

DOI: 10.1016/0010-938x(83)90063-x

[6] L.K. Gatzky, R.H. Hausler, "A novel correlation of tubing corrosion rates and gas production rates", in R.H. Hausler, H.P. Godard (Eds). Advanced in CO2 corrosion, Vol. 1, pp.87-90.

[7] L.G.S. Gray, B.G. Anderson, M.J. Danysh,et al. Mechanism of carbon steel corrosion in brines containing dissolved carbon dioxide at pH4, Corrosion/89, Paper No.464. (Houston, TX: NACE. International, 1989).

[8] M. Stern, The electrochemical behavior, including hydrogen over-voltage, of iron in acid environments, J.Electrochem.Soc. 102 (1955) 609-616.

DOI: 10.1149/1.2429923

[9] G. Schmitt, B. Rothman, "Studies on the Corrosion Mechanism of Unalloyed Steel in oxygen-tree carbon dioxide solutions, part II. kinetics of iron dissolution in: R.H. Hausler, H. P. Giddard (Eds), Advances in CO2 Corrosion, Vol. 1, pp.163-172.

[10] C.N. Cao, J.Q. Zhang, An introduction to electrochemical impedance spectroscopy. Beijing: Science press, 2002.

[11] Srdjan Nesic, Kun-Lin John Lee and Vukan Ruzic, The effect on CO2 corrosion of mild steel, Corrosion/2002, Paper No.02237. (Houston, TX: NACE. International, 2002).

[12] C.N. Cao, Corrosion electrochemistry. Beijing: Chemical industry press 1994.

[13] F.J. Mansfeld, Use of electrochemical impedance spectroscopy for the study of corrosion protection by polymer coatings, Appl. Electrochem. 25 (1995) 187-202.

DOI: 10.1007/bf00262955

[14] I. Frateur, C. Deslouis, M.E. Orazem, B. Tribollet, Modeling of the cast iron/drinking water system by electrochemical impedance spectroscopy, Electrochem. Acta 44 (1999) 4345-4356.

DOI: 10.1016/s0013-4686(99)00150-4

[15] K. Juttner, W.J. Lorenz, M.W. Kendig, F.J. Mansfeld, Electrochemical Impedance Spectroscopy on 3-D Inhomogeneous Surfaces, J. Electrochem. Soc. 135 (1988) 332-339.

DOI: 10.1149/1.2095610

[16] M.C. Li, C.L. Zeng, H.C. Lin, C.N. Cao, Corrosion behavior for 316 stailess steel in dilute hydrochloric acid solutions aerated with hydrogen gas, Acta Metallurgica Sinica 38 (2002) 1287-1291.
