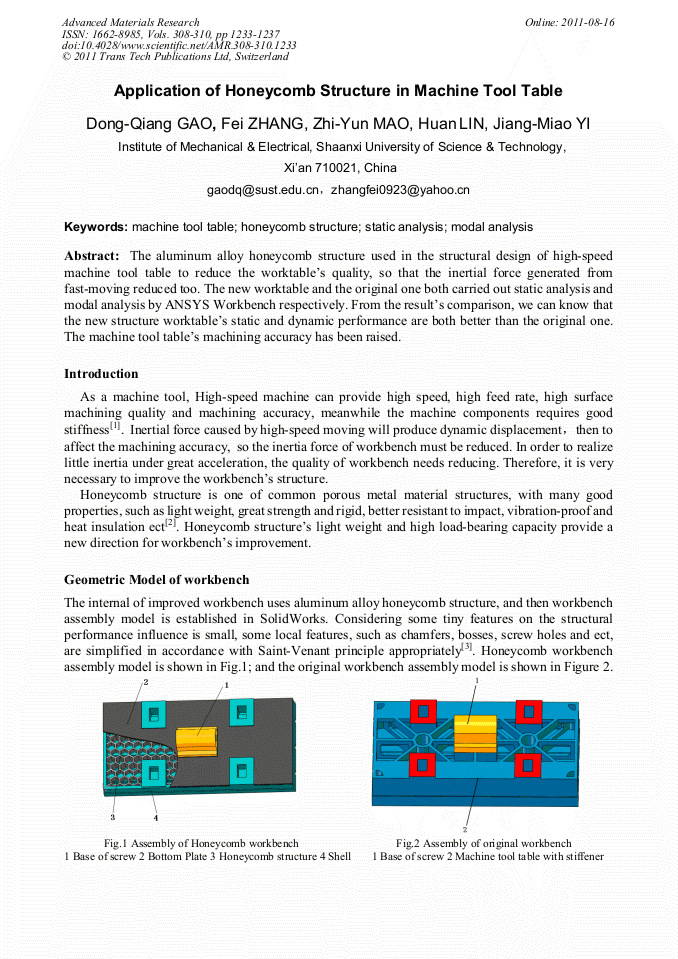

Application of Honeycomb Structure in Machine Tool Table

Abstract:

The aluminum alloy honeycomb structure used in the structural design of high-speed machine tool table to reduce the worktable’s quality, so that the inertial force generated from fast-moving reduced too. The new worktable and the original one both carried out static analysis and modal analysis by ANSYS Workbench respectively. From the result’s comparison, we can know that the new structure worktable’s static and dynamic performance are both better than the original one. The machine tool table’s machining accuracy has been raised.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 308-310)

Pages:

1233-1237

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.308-310.1233

Citation:

Cite this paper

Online since:

August 2011

Authors:

Dong Qiang Gao, Fei Zhang, Zhi Yun Mao, Huan Lin, Jiang Miao Yi

Keywords:

Honeycomb Structure, Machine Tool Table, Modal Analysis, Static Analysis
