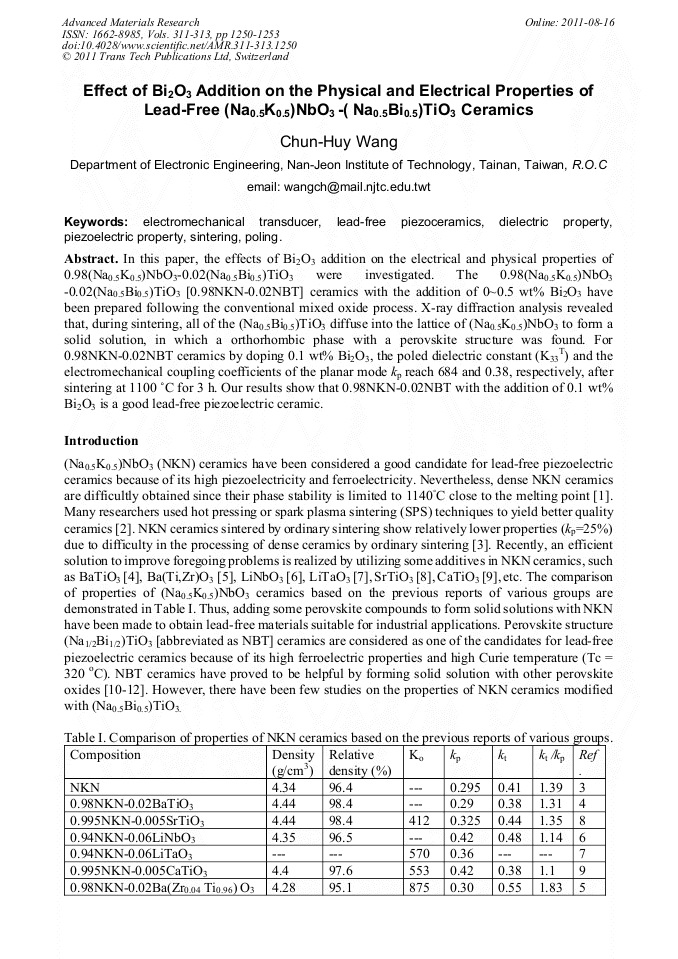

Effect of Bi₂O₃ Addition on the Physical and Electrical Properties of Lead-Free (Na_0.5K_0.5)NbO₃ -( Na_0.5Bi_0.5)TiO₃ Ceramics

Abstract:

In this paper, the effects of Bi₂O₃ addition on the electrical and physical properties of 0.98(Na0.5K0.5)NbO3-0.02(Na0.5Bi0.5)TiO3 were investigated. The 0.98(Na_0.5K_0.5)NbO₃ -0.02(Na_0.5Bi_0.5)TiO₃ [0.98NKN-0.02NBT] ceramics with the addition of 0~0.5 wt% Bi₂O₃ have been prepared following the conventional mixed oxide process. X-ray diffraction analysis revealed that, during sintering, all of the (Na_0.5Bi_0.5)TiO₃ diffuse into the lattice of ((Na_0.5Bi_0.5))NbO₃ to form a solid solution, in which a orthorhombic phase with a perovskite structure was found. For 0.98NKN-0.02NBT ceramics by doping 0.1 wt% Bi₂O₃, the poled dielectric constant (K33^T) and the electromechanical coupling coefficients of the planar mode k_p reach 684 and 0.38, respectively, after sintering at 1100 °C for 3 h. Our results show that 0.98NKN-0.02NBT with the addition of 0.1 wt% Bi₂O₃ is a good lead-free piezoelectric ceramic.

• Periodical: Advanced Materials Research (Volumes 311-313)
• Pages: 1250-1253
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.311-313.1250
• Online since: August 2011
• Authors: Chun Huy Wang
• Keywords: Dielectric Property, Electromechanical Transducer, Lead-Free Piezoelectric, Piezoelectric Properties, Poling, Sintering

References

[1] S. Y. Chu, W. Water, Y.D. Juang, J. T. Liaw, and S. B. Da: Ferroelectrics, Vol. 297 (2003), p.11.

[2] M. Matsubara, T. Yamaguch, and S. Hirano: Jpn. J. Appl. Phys. Vol.44 (2005), p.6136.

[3] M. D. Maeder, D. Damjanovic and N. Setter: J. Electroceram., Vol. 13 (2004), p.385.

[4] Y. Guo, K. Kakimoto, and H. Ohsato: Jpn. J. Appl. Phys. Vol. 43, (2004), p.6662.

[5] C. H. Wang: J. Ceram. Soc. Jpn. Vol. 117, (2009), p.680.

[6] Y. Guo, K. Kakimoto, and H. Ohsato: Appl. Phys. Lett. Vol. 85, (2004), p.4121.

[7] Y. Guo, K. Kakimoto, H. Ohsato:Mater. Lett. Vol. 59, (2005), p.241.

[8] Y. Guo, K. Kakimoto, and H. Ohsato:Solid State Commun., Vol. 129, (2004), p.279.

[9] R. C. Chang, S. Y. Chu, C. S. Hong and Y. P. Wong: J. Eur. Cerm. Soc. Vol. 27, (2007), p.4453.

[10] C. H. Wang: J. Ceram. Soc. Jpn. Vol. 116, (2008), p.632.

[11] Chun-Huy Wang: J. Ceram. Soc. Jpn. Vol.117[5], (2009), p.693.

[12] Chun-Huy Wang: Advanced Materials Research, Vol. 148-149, (2011), p.232.

[13] Anon. IRE: Proc. IRE., Vol. 49 (1961), p.1161.

[14] T. Senda, and R. C. Bradt: J. Am. Ceram. Soc. Vol. 73 [1] (1990), p.106.

[15] K. Okazaki and K. Nagata: J. Am. Ceram. Soc. Vol. 56 [2] (1973), p.82.
