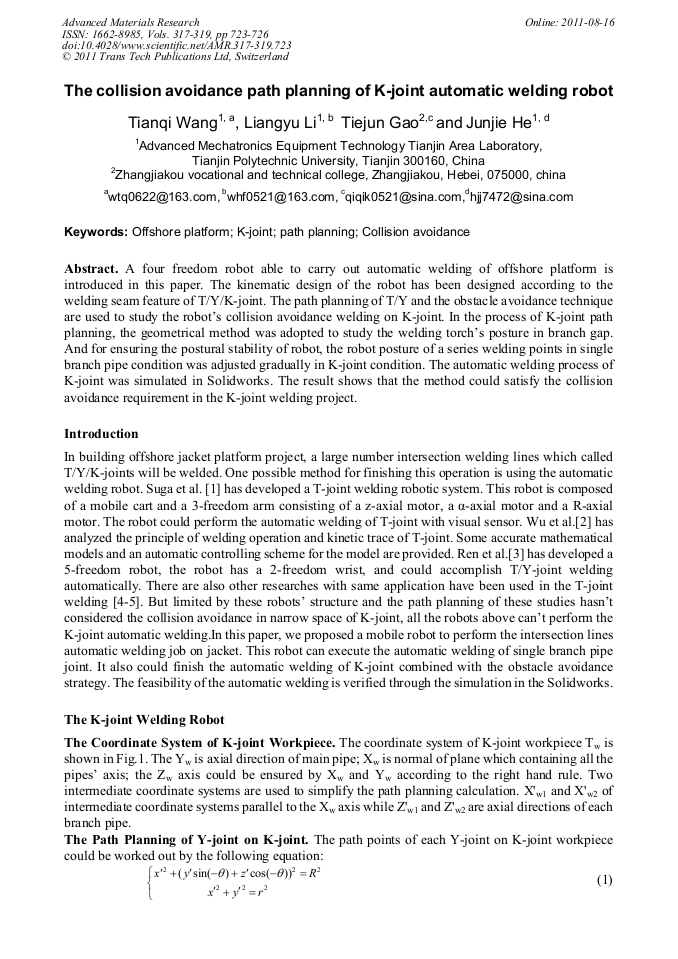

The Collision Avoidance Path Planning of K-Joint Automatic Welding Robot

Abstract:

A four freedom robot able to carry out automatic welding of offshore platform is introduced in this paper. The kinematic design of the robot has been designed according to the welding seam feature of T/Y/K-joint. The path planning of T/Y and the obstacle avoidance technique are used to study the robot’s collision avoidance welding on K-joint. In the process of K-joint path planning, the geometrical method was adopted to study the welding torch’s posture in branch gap. And for ensuring the postural stability of robot, the robot posture of a series welding points in single branch pipe condition was adjusted gradually in K-joint condition. The automatic welding process of K-joint was simulated in Solidworks. The result shows that the method could satisfy the collision avoidance requirement in the K-joint welding project.

• Periodical: Advanced Materials Research (Volumes 317-319)
• Pages: 723-726
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.317-319.723
• Online since: August 2011
• Authors: Tian Qi Wang, Liang Yu Li, Tie Jun Gao, Jun Jie He
• Keywords: Collision Avoidance, K-Joints, Offshore Platform, Path Planning

References

[1] Yasuo Suga, Akifumi Muto, "Automatic tracking of welding line by autonomous mobile robot for welding of plates (Tracking of linear and angled welding lines)" Transactions of the Japan Society of Mechanical Engineers(Part C), 1997,612(63):2918-2924

DOI: 10.1299/kikaic.63.2918

[2] G.S WU, L. ZHANG, H. WU, "Analysis of mathematical model for saddle-seam welding kinetic system" Journal of Shenyang Polytechnic University, 1999,06:495-497.

[3] F.S Ren, S.J. Chen, X.Y. Guan, "YIN Shuyan,Special-purpose welding robot for intersection welding seam" Transactions of the China Welding Institution.2009,06:59-63

[4] Z.H. Zhang, W.J Li, Q. Liu, H. Zhou, "Development of Automatic Arc Welding Machine for Saddle Joint Seam on Large-diameter Cylinders" Transactions of the China Welding Institution.2000,01.68-70

[5] J.P. Tan, J.P. Zhou, C.H. Liang, D.L. Li, "Automatic Control of T-Shaped Seam Based on C8051F020"Pipeline Technique and Equipment,2008,04:42-43
