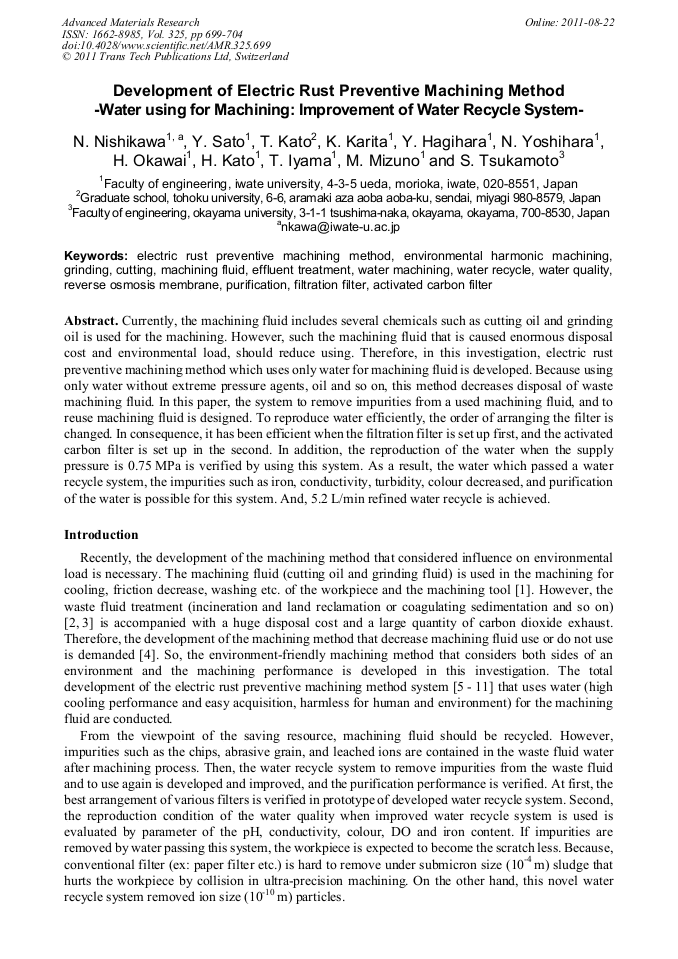

Development of Electric Rust Preventive Machining Method -Water Using for Machining: Improvement of Water Recycle System-

Abstract:

Currently, the machining fluid includes several chemicals such as cutting oil and grinding oil is used for the machining. However, such the machining fluid that is caused enormous disposal cost and environmental load, should reduce using. Therefore, in this investigation, electric rust preventive machining method which uses only water for machining fluid is developed. Because using only water without extreme pressure agents, oil and so on, this method decreases disposal of waste machining fluid. In this paper, the system to remove impurities from a used machining fluid, and to reuse machining fluid is designed. To reproduce water efficiently, the order of arranging the filter is changed. In consequence, it has been efficient when the filtration filter is set up first, and the activated carbon filter is set up in the second. In addition, the reproduction of the water when the supply pressure is 0.75 MPa is verified by using this system. As a result, the water which passed a water recycle system, the impurities such as iron, conductivity, turbidity, colour decreased, and purification of the water is possible for this system. And, 5.2 L/min refined water recycle is achieved.

• Periodical: Advanced Materials Research (Volume 325)
• Pages: 699-704
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.325.699
• Online since: August 2011
• Authors: Naohiro Nishikawa, Yoshimi Sato, T. Kato, K. Karita, Y. Hagihara, Nobuhito Yoshihara, H. Okawai, H. Kato, Toshirou Iyama, Masahiro Mizuno, Shinya Tsukamoto
• Keywords: Activated Carbon Filter, Cutting, Effluent Treatment, Electric Rust Preventive Machining Method, Environmental Harmonic Machining, Filtration Filter, Grinding, Machining Fluid, Purification, Reverse Osmosis Membrane, Water Machining, Water Quality, Water Recycle

References

[1] N. Nakajima,N. Narutaki: Machining Technology (Corona publishing Co. Ltd., Japan 1983), pp.181-185.

[2] S. Hiroi, Y. Yamanaka: Cutting fluid and Grinding fluid (Saiwaishobo Co. Ltd., Japan 1982), pp.244-264.

[3] TECHNICAL RESEARCH INSTITUTE Japan Society for the Promotion of Machine Industry: Material Processing Data File Text Vol: 15 (Grinding) (TECHNICAL RESEARCH INSTITUTE Japan Society for the Promotion of Machine Industry, Japan 2002), pp.32-33.

[4] N. Nishikawa, S. Tsukamoto, K. Ohashi, T. Nakajima, T. Iyama, M. Mizuno, Y. Ota, T. Kubo: Basic Investigation of Environmental Harmonic Machining-Examination of various low pollution machining methods and effectiveness verification of half underwater grinding-, J. Environ. Conserv. Eng., 38, 6 (2009).

DOI: 10.5956/jriet.38.415

[5] S. Tsukamoto, K. Ohashi, N. Nishikawa, M. Sudou, T. Kubo and T. Nakajima: Proposal of Electricity Rust Preventive Machining Method in Cylindrical Grinding-Antirust Effect of Workpiece in Grinding with Water-, J. Jpn. Soc. Precis. Eng., 71, 3 (2005).

DOI: 10.1299/jsmelem.2005.2.653

[6] S. Tsukamoto, N. Nishikawa, K. Okamoto and K. Ohashi: Development of the Electricity Rust Preventive Machining Method in Surface Grinding, Adv. Abras. Technol. VI Key Eng. Mater., Vols. 257-258, (2004) pp.483-488.

DOI: 10.4028/www.scientific.net/kem.257-258.483

[7] N. Nishikawa, K. Ohashi, K. Yoshihara and S. Tsukamoto: Development of electric rust preventive machining method in internal grinding-Proposal on an environment-friendly machining using water instead of grinding fluid-, J. Environ. Conserv. Eng., 35, 6 (2006).

DOI: 10.5956/jriet.35.452

[8] N. Nishikawa, S. Tsukamoto, K. Ohashi, R. Miyake, T. Iyama and M. Mizuno: Development of Electric Rust Prevention Machining Method in End Mill Cutting-Environmental Harmonic Machining Using Water in Cutting Machining-, J. Environ. Conserv. Eng., 37, 4 (2008).

DOI: 10.5956/jriet.37.274

[9] N. Nishikawa, Y. Sato, T. Katou, K. Karita, T. Iyama, M. Mizuno, N. Yoshihara, Y. Hagihara and S. Tsukamoto: Development of electric rust preventive machining method Rust prevention of workpiece and machine body, J. Jpn. Soc. Abras. Technol., 55, 3 (2011).

DOI: 10.4028/www.scientific.net/amr.325.699

[10] N. Nishikawa, K. Ohashi, M. Sudoh, S. Tsukamoto: Development of electric rust preventive storage method in water-Proposal of metal parts storage using water without rust preventive agent or oil-, J. Environ. Conserv. Eng., 35, 5 (2006).

DOI: 10.5956/jriet.35.371

[11] N. Nishikawa, Y. Sato, T. Katou, K. Karita, T. Iyama, M. Mizuno, N. Yoshihara, Y. Hagihara and S. Tsukamoto: Development of electric rust preventive machining method-Proposal of the machining water recycling system-, J. Jpn. Soc. Abras. Technol., 54, 10 (2010).

DOI: 10.4028/www.scientific.net/amr.325.699
