Dynamic Search Structure Failure Path Method Based on Element Birth and Death Technology for Overhead Traveling Crane

Abstract:

For providing basic data to the reliability evaluation of the carrying capacity of the overhead traveling crane’s structure, by using Visual C++6.0 development platform, Pro/Toolkit and the element birth and death technology, the parametric model of the overhead traveling crane’s structure and the automatic analysis of the structure finite element model have been achieved. The results from the analysis obtained maximum element stress from each load step, and then the failure paths of the structural element which undered static load were found, from which the failure order consistented with failure development law of the overhead traveling crane’s structure, this would provide a technical basis to the search of dynamic failure paths which undered dynamic load. Finally, engineering examples which verified the feasibility of this method were brought.

You might also be interested in these eBooks

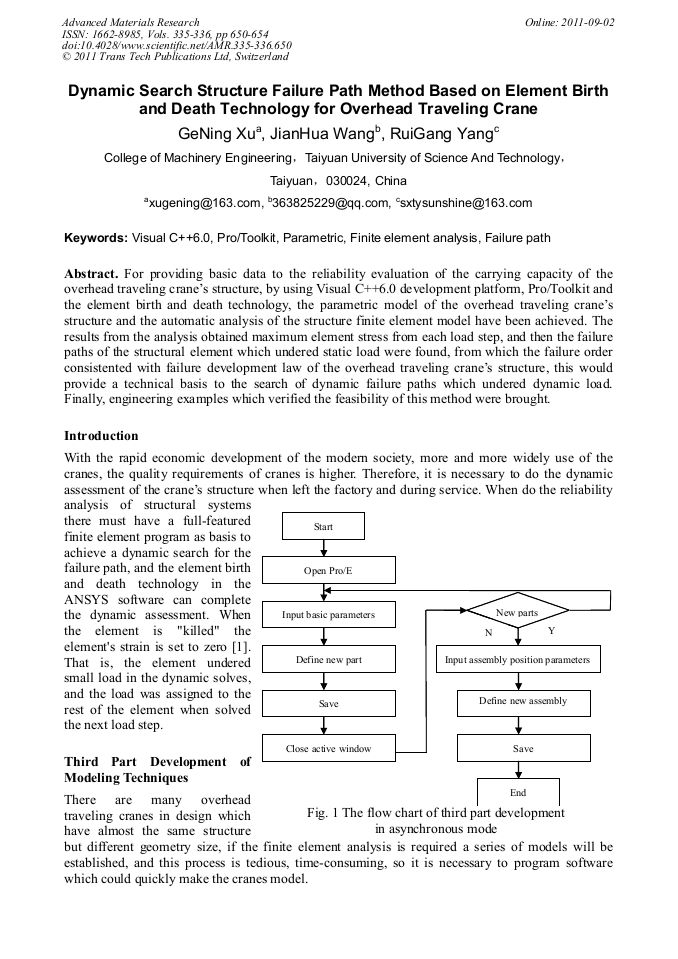

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 335-336)

Pages:

650-654

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.335-336.650

Citation:

Cite this paper

Online since:

September 2011

Authors:

Ge Ning Xu, Jian Hua Wang, Rui Gang Yang

Keywords:

Failure Path, Finite Element Analysis (FEA), Parametric, Pro/Toolkit, Visual C++6.0

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.G. Gong, and G.L. Xie: Parametric programming and operation orders of ANSYS (Machinery industry press, BeiJing 2004-4). (In Chinese)

Google Scholar

[2] The second generation LongZhen studio: Pro/TOOLKIT Wildfire 2.0 Plug-in Design (Publishing house of electronics industry, BeiJing 2005-1). (In Chinese)

Google Scholar

[3] S.G. Li, and J.J. He: Mechanical design and research, Vol. 19(2003) No.3, pp.36-38. (In Chinese)

Google Scholar

[4] T.T. Fu: Parametric interface overhead traveling crane finite element analysis system based on VC++ and ANSYS (MS., Wuhan University of science and technology, China 2008), pp.20-25. (In Chinese)

Google Scholar

[5] D.N. Chen, and H.Z. Sheng: Crane Design Course (The metallurgical industry press, Beijing 1993-10). (In Chinese)

Google Scholar
