Analysis of the Material Removal Rate of Micro-Hole Machining of Ceramic Materials

Abstract:

This study discussed what rotary ultrasonic machining (RUM) and tool geometry parameters combination can obtain bigger material removal rate (MRR) in drilling. The experimental configuration of this study was planned using Taguchi orthogonal array, where the drill diameter, rotation speed, power and feed rate were taken as the experimental factors. A relation model among the MRR and standard deviation of the holes walls and processing parameters and tool geometry was established, so as to achieve maximum MRR of the overall deep holes walls. The experimental results proved that application of the optimized parameters combination in rotary ultrasonic machining of holes processing can obtain bigger and better removal rate of holes walls. The effect of control factors on the holes quality was discussed from the straightness deviation and maximum material removal rate of related factors on the holes when the Taguchi method was used in rotary ultrasonic machining of holes drilling. The results showed that rotation speed, power, and feed rate under bigger level have a larger MRR than that of other level in a fixed drill diameter.

You might also be interested in these eBooks

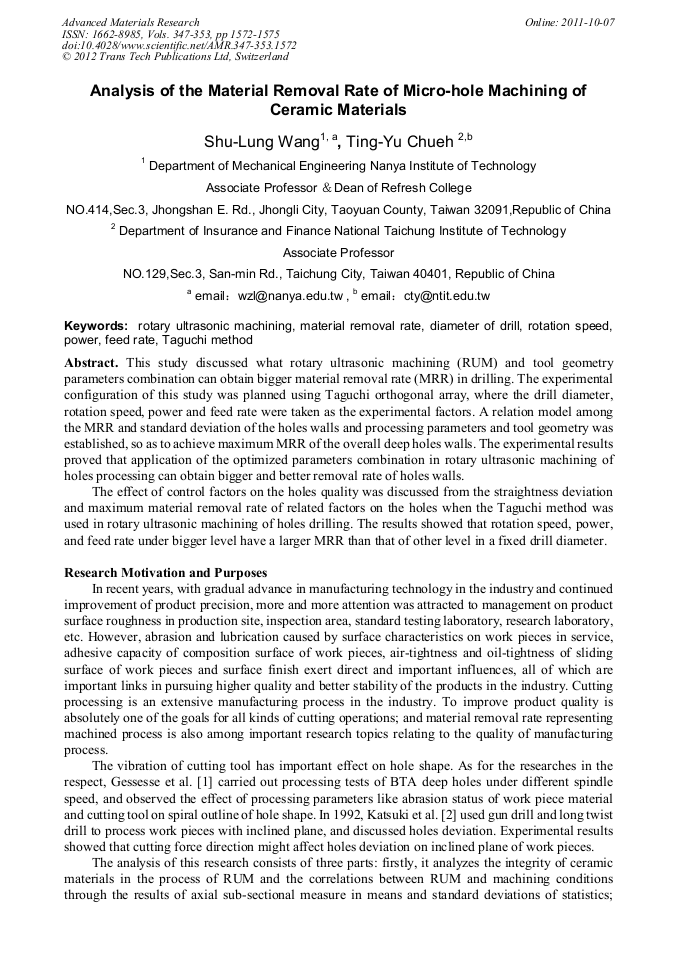

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 347-353)

Pages:

1572-1575

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.347-353.1572

Citation:

Cite this paper

Online since:

October 2011

Authors:

Shu Lung Wang, Ting Yu Chueh

Keywords:

Diameter of Drill, Feed Rate, Material Removal Rate (MRR), Power, Rotary Ultrasonic Machining, Taguchi Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. B. Gessesse, V. N. Latinovic, and M. O. M. Osman, Journal of Engineering for Industry, Vol. 116 161-165, 1994.

Google Scholar

[2] Akio Katsuki, Hiromichi Onikura, Keizo Sakuma, Torin Chen, and Yukitaka Murakami, JSME International Journal Series III, Vol. 35 No. 1160-167, 1992.

Google Scholar

[3] Gilmore R., Ultrasonic machining of ceramics, SME Paper, MS90-346,1990.

Google Scholar

[4] Rozennberg L.D., Kazantsev V.F. et al., Ultrasonic cutting, Consultants Bureau, NewYork,1964.

Google Scholar

[5] Kohls J.B., Ultrasonic manufacturing process: Ultrasonic machining (USM) and ultrasonic impact grinding (USIG).The Carbide and Tool J., 1984, 16 (5), 12-15.

Google Scholar

[6] Haslehurst M., Manufacturing technology (3rd edn.), 1981, pp.270-271.

Google Scholar

[7] Soundararajan, V. and Radhakrishnan V., An experimental investigation on the basic mechanisms involved in ultrasonic machining. Int. J.MTDR, 1986, 26 (3), 307-321.

DOI: 10.1016/0020-7357(86)90008-9

Google Scholar
