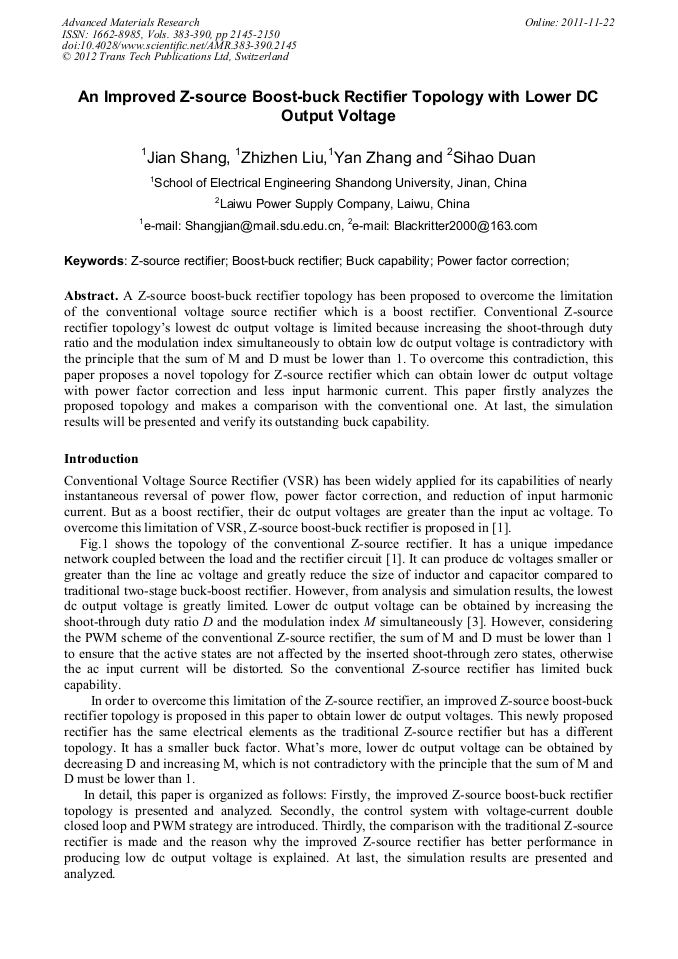

An Improved Z-Source Boost-Buck Rectifier Topology with Lower DC Output Voltage

Abstract:

A Z-source boost-buck rectifier topology has been proposed to overcome the limitation of the conventional voltage source rectifier which is a boost rectifier. Conventional Z-source rectifier topology’s lowest dc output voltage is limited because increasing the shoot-through duty ratio and the modulation index simultaneously to obtain low dc output voltage is contradictory with the principle that the sum of M and D must be lower than 1. To overcome this contradiction, this paper proposes a novel topology for Z-source rectifier which can obtain lower dc output voltage with power factor correction and less input harmonic current. This paper firstly analyzes the proposed topology and makes a comparison with the conventional one. At last, the simulation results will be presented and verify its outstanding buck capability.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 2145-2150
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.2145
• Online since: November 2011
• Authors: Jian Shang, Zhi Zhen Liu, Yan Zhang, Si Hao Duan
• Keywords: Boost-Buck Rectifier, Buck Capability, Power Factor Correction (PFC), Z-Source Rectifier

References

[1] Xinpin Ding, Zhaoming Qian, Yeyuan Xie and Zhengyu Lu, Three Phase Z-Source Rectifier, IEEE 36th Power Electronics Specialists Conference, pp: 494-500, Jun (2005).

DOI: 10.1109/pesc.2005.1581670

[2] F. Z. Peng, Z-source inverter, IEEE Transactions on Industry Applications, Vol. 39(2), pp: 504-510, Mar/Apr (2003).

[3] Xinping Ding, Zhaoming Qian, Yeyuan Xie and F. Z. Peng, A novel ZVS Z-source rectifier, IEEE Applied Power Electronics Conference and Exposition, p.5, Mar (2006).

DOI: 10.1109/pesc.2006.1711884

[4] G. R. Wu, R. Dewan and S. B. Slemon, A PWM AC-to-DC converter with fixed switching frequency, IEEE Transactions on Industry Applications, Vol. 26, pp: 880-885, Sep/Oct (1990).

DOI: 10.1109/28.60060

[5] Jian Sun, On the zero-crossing distortion in single-phase PFC converters, IEEE Transactions on Power Electronics, Vol. 19, pp: 685-692, May (2004).

DOI: 10.1109/tpel.2004.826491

[6] R.W. Maksimovic, D. Yungtaek and Jang Erickson, Nonlinear-carrier control for high-power-factor boost rectifiers, IEEE Transactions on Power Electronics, Vol. 11, pp: 578-584, Jul (1996).

DOI: 10.1109/63.506123

[7] P.C. Loh, D.M. Vilathgamuwa, Y.S. Lai G.T. Chua And Y.W. Li, Pulse-width modulation of Z-source inverters, IEEE Trans. Power Electron. , Vol. 20, pp: 1346-1355, Nov. (2005).

DOI: 10.1109/tpel.2005.857543
