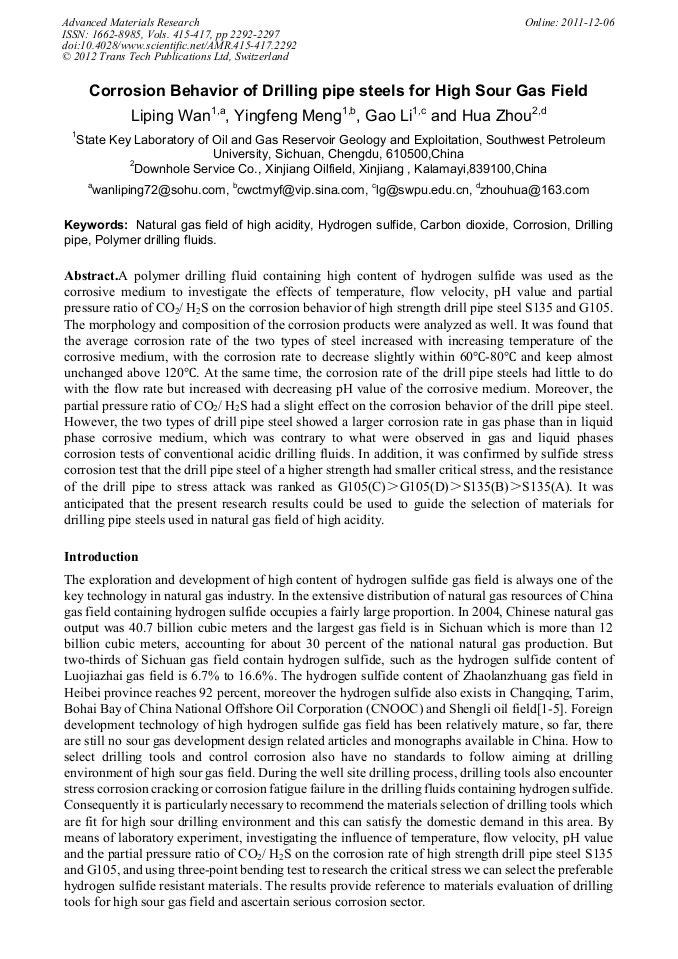

Corrosion Behavior of Drilling Pipe Steels for High Sour Gas Field

Abstract:

A polymer drilling fluid containing high content of hydrogen sulfide was used as the corrosive medium to investigate the effects of temperature, flow velocity, pH value and partial pressure ratio of CO₂/ H₂S on the corrosion behavior of high strength drill pipe steel S135 and G105. The morphology and composition of the corrosion products were analyzed as well. It was found that the average corrosion rate of the two types of steel increased with increasing temperature of the corrosive medium, with the corrosion rate to decrease slightly within 60°C-80°C and keep almost unchanged above 120°C. At the same time, the corrosion rate of the drill pipe steels had little to do with the flow rate but increased with decreasing pH value of the corrosive medium. Moreover, the partial pressure ratio of CO₂/ H₂S had a slight effect on the corrosion behavior of the drill pipe steel. However, the two types of drill pipe steel showed a larger corrosion rate in gas phase than in liquid phase corrosive medium, which was contrary to what were observed in gas and liquid phases corrosion tests of conventional acidic drilling fluids. In addition, it was confirmed by sulfide stress corrosion test that the drill pipe steel of a higher strength had smaller critical stress, and the resistance of the drill pipe to stress attack was ranked as G105(C)＞G105(D)＞S135(B)＞S135(A). It was anticipated that the present research results could be used to guide the selection of materials for drilling pipe steels used in natural gas field of high acidity.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 2292-2297
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.2292
• Online since: December 2011
• Authors: Li Ping Wan, Ying Feng Meng, Gao Li, Hua Zhou
• Keywords: Carbon Dioxide CO₂, Corrosion, Drilling Pipe, Hydrogen Sulfide, Natural Gas Field of High Acidity, Polymer Drilling Fluids

References

[1] Dai Jinxing, Hu J.y and Jia Ch. z: Petro. Exploration and Development vol.31(2004),p.4

[2] Hou Lu, Hu Jun and Tang Jun: ACTA Petrolei Sinica vol.26(2005),p.26

[3] Zhu Guangyou, Dai Jinxing and Zhang Shui Chang: Natural Gas Industry vol.24(2004),p.1

[4] Zhu Guangyou, Dai Jinxing and Zhang Shui Chang: Natural Gas Geoscience vol.15(2004),p.166

[5] Qian Zhi jia, Guo Ping : Sour-Gas Design Considerations(Petroleum Industry Press, Beijing 2003)

[6] Wan Liping, Meng Yingfeng: Chem. Engi. Oil and Gas vol.34(2005),p.299

[7] Alberto Valdes, Raymundo Case: Corrosion vol.54(1985),p.22

[8] Li Jianping, Zhao Guoxian: J.Northeastern University vol.25(2004),p.1069

[9] Liu Zhide, Huang Liming: Natural Gas Ind. vol.24(2004),p.122
