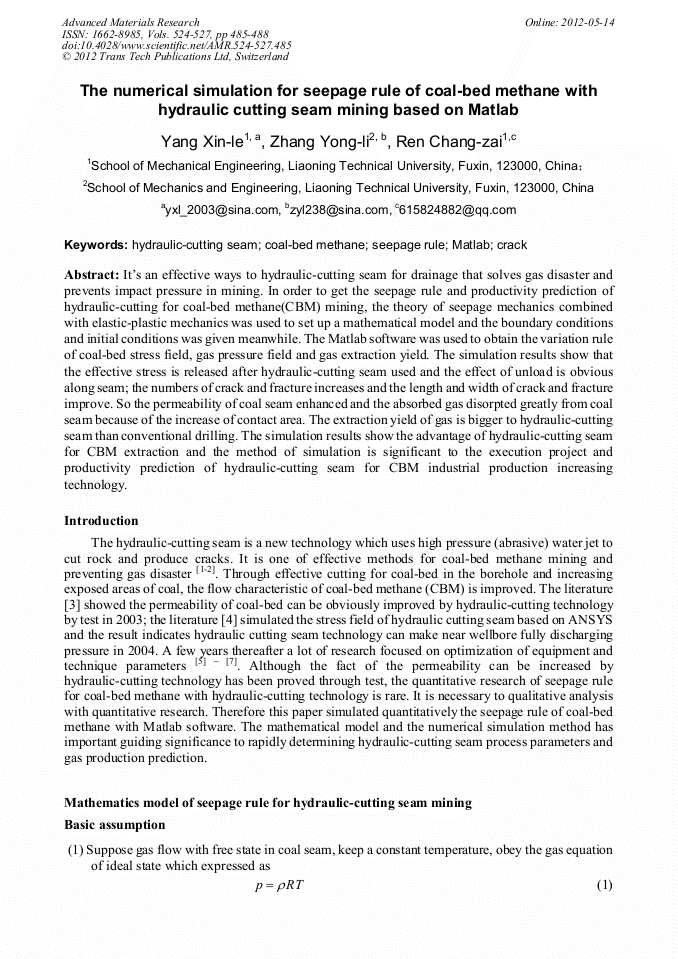

The Numerical Simulation for Seepage Rule of Coal-Bed Methane with Hydraulic Cutting Seam Mining Based on Matlab

Abstract:

It’s an effective ways to hydraulic-cutting seam for drainage that solves gas disaster and prevents impact pressure in mining. In order to get the seepage rule and productivity prediction of hydraulic-cutting for coal-bed methane(CBM) mining, the theory of seepage mechanics combined with elastic-plastic mechanics was used to set up a mathematical model and the boundary conditions and initial conditions was given meanwhile. The Matlab software was used to obtain the variation rule of coal-bed stress field, gas pressure field and gas extraction yield. The simulation results show that the effective stress is released after hydraulic-cutting seam used and the effect of unload is obvious along seam; the numbers of crack and fracture increases and the length and width of crack and fracture improve. So the permeability of coal seam enhanced and the absorbed gas disorpted greatly from coal seam because of the increase of contact area. The extraction yield of gas is bigger to hydraulic-cutting seam than conventional drilling. The simulation results show the advantage of hydraulic-cutting seam for CBM extraction and the method of simulation is significant to the execution project and productivity prediction of hydraulic-cutting seam for CBM industrial production increasing technology.

• Periodical: Advanced Materials Research (Volumes 524-527)
• Pages: 485-488
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.524-527.485
• Online since: May 2012
• Authors: Xin Le Yang, Yong Li Zhang, Chang Zai Ren
• Keywords: Coalbed Methane (CBM), Crack, Hydraulic-Cutting Seam, MATLAB, Seepage Rule

References

[1] ZhouShiNing,LinBoQuan, Coal seam gas occurrence and flow theory[M].Beijing: The coal industry press. (1999)

[2] ZhaoYangSheng,YangDong,HuYaoQing. Study on the effective technology way for mining methane in low permeability coal seam [J], Journal of China Coal Society. Vol.26(5) (2001), pp.455-458

[3] FengZengChao,ZhaoYangSheng,YangDong,etc. Testing study of outsized coal samples cutting and drilling to discharge coal-bed gas [J], Natural Gas Industry. Vol.25(3) (2003), pp.127-129

[4] TangJuPeng,LiChengQuan,PanYiShan. Numeral simulation of stress field for low permeable coal bed gas recovering with hydraulic cutting [J], Natural Gas Industry. Vol.2(10) (2004), pp.93-95

[5] SongJian,LiGenSheng,NiuJiLei,etc. Research of enhancing oil production and water injection with helical hydraulic sand-blasting slotting [J], Natural Gas Industry. Vol.26(12) (2006),pp.133-135

[6] WangDeXi,LuoMin,QiXi,etc. Stress analysis and strength study of hydraulic slotting casing [J], Journal of Daqing Petroleum Institute. Vol.31(2) (2007), pp.51-54

[7] LiDeYu,WuHaiJin,WangChunLi.Numerical investigation of flow characteristics in hydraulic-cutting-seam nozzle [J], Journal of China Coal Society. Vol.35(4) (2010), pp.686-688

[8] ZhaoYangSheng, HuYaoQing, YangDong.Under three dimensional stress adsorption effect of to coal and rock gas seepage rule influence of experiments research[J], Rock mechanics and engineering journal. Vol.18(6) (1999), p.651－653
