Microstructure Characterization of the Reaction Interface between CBN Grain and Titanium-Deposited Film

Wen Feng Ding; Yang Min Liang; Jian He; Li Tang; Jie Yu; Zhi Wu Liu

doi:10.4028/www.scientific.net/AMR.538-541.166

Paper Titles

The Research of Solar Film Reactor Technology Designing
p.150

Thermoelectric Properties of Zn-Sb Thin Films Grown by Ion Beam Sputtering
p.154

Preparation and Photocatalytic Activity of Heteropoly Acids/Polyvinylidene Fluoride Thin Films
p.158

Preparation of Lead Zirconate Titanate Thin Film Using Magnetron Sputtering
p.162

Microstructure Characterization of the Reaction Interface between CBN Grain and Titanium-Deposited Film
p.166

Formation of Two-Layer Heat-Resistant Coatings on TC11 Alloy by Electro-Spark Alloying Method
p.175

Tribological Properties of Ni-Base Alloy Coatings Reinforced by SiC Particles
p.181

The Effect of Thiourea Additive to Elimination of the Iron Dissolved in Flux Solution of Hot Dip Galvanizing Process
p.186

Research of the Nonlinear 3D Surface NC Machining Technology
p.190

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 538-541Microstructure Characterization of the Reaction...

Microstructure Characterization of the Reaction Interface between CBN Grain and Titanium-Deposited Film

Abstract:

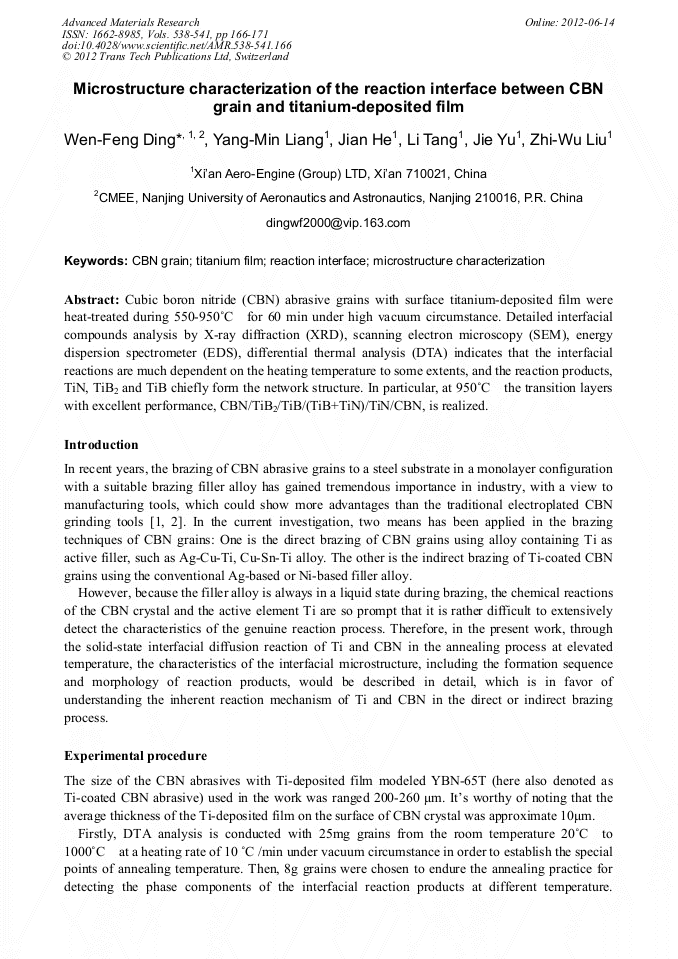

Cubic boron nitride (CBN) abrasive grains with surface titanium-deposited film were heat-treated during 550-950°C for 60 min under high vacuum circumstance. Detailed interfacial compounds analysis by X-ray diffraction (XRD), scanning electron microscopy (SEM), energy dispersion spectrometer (EDS), differential thermal analysis (DTA) indicates that the interfacial reactions are much dependent on the heating temperature to some extents, and the reaction products, TiN, TiB2 and TiB chiefly form the network structure. In particular, at 950°C the transition layers with excellent performance, CBN/TiB2/TiB/(TiB+TiN)/TiN/CBN, is realized.
