Research on CrN-Based Ternary Films Deposited by Magnetron Sputtering

Abstract:

Different Mo content of ternary Cr-Mo-N films were deposited on steel substrates using closed-field unbalanced magnetron sputtering technique using Cr target and Mo target in N2/Ar gaseous mixture. The composition, structure, surface morphology and valence states of ternary CrMoN films were tested by EDS, XRD, SEM and XPS respectively. The experimental results showed that the preferential growth orientation of CrMoN films was changed from CrN (220) to (200) after the addition of Mo element. The diffraction peak shifted leftwards as a function of Mo content, The synthesized CrMoN coatings formed a substitutional solid solution of (Cr,Mo)N where larger Mo atoms replaced Cr in CrN crystal. The mechanical property experiments were carried out on the nanotest 600 hardness-testing device. The hardness of CrMoN films enhanced for the synergistic effect of CrN and MoN hard phases

You might also be interested in these eBooks

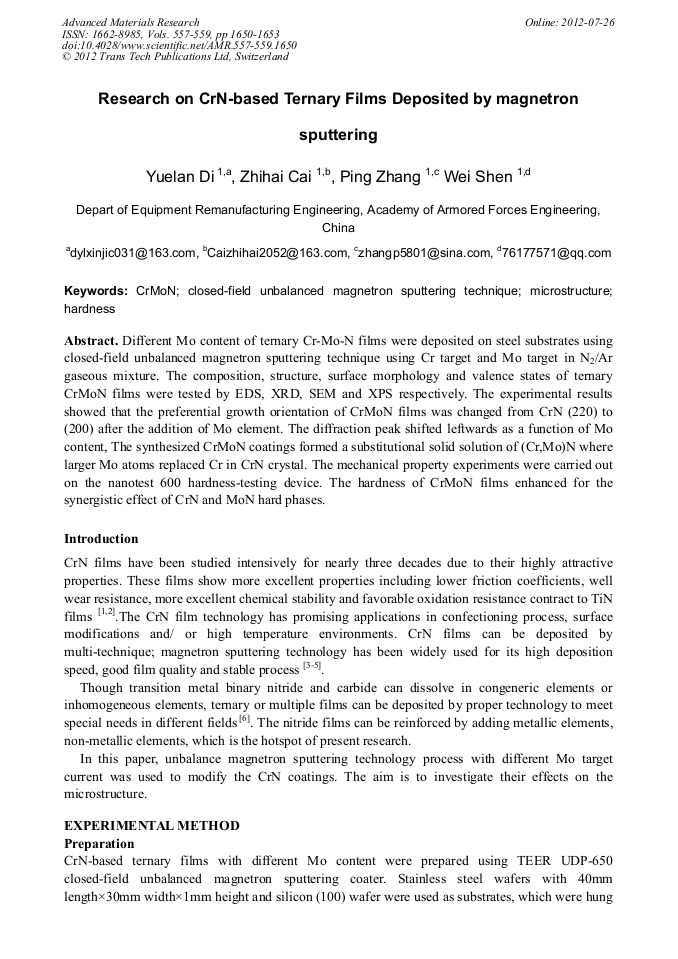

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 557-559)

Pages:

1650-1653

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.557-559.1650

Citation:

Cite this paper

Online since:

July 2012

Authors:

Yue Lan Di, Zhi Hai Cai, Ping Zhang, Wei Shen

Keywords:

Closed-Field Unbalanced Magnetron Sputtering Technique, CrMoN Coatings, Hardness, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Piekoszewski J, Werner Z, Szymczyk W: Vacuum, Vol 63(2001), pp.475-481.

Google Scholar

[2] Korotaev A D, Tyumentsev A V, Pinzhin Yu P et al.:Surface & Coatings Technology, Vol 185(2004),pp.38-42.

Google Scholar

[3] Zhu X P, Lei M K, Ma T C:Nuclear Instruments and Methods in Physics Research,Vol B211 (2003),pp.69-73.

Google Scholar

[4] Zhang Hongtao, Wang Tianmin, Han Baoxi et al: Vacuum, Vol 68(2003), pp.329-332.

Google Scholar

[5] Weng K W, Lin T N, Wang D I:Thin Solid Filrns. Vol 6(2007),pp.162-167.

Google Scholar

[6] Kenji Yamamoto, Susumu Kujime, Kazuki Takahara: Surface&Coatings Technology, Vol 200(2005),pp.1383-1390.

Google Scholar

[7] K.H. Kim, E.Y. Choi, S.G. Hong, et al:Surf. Coat. Technol. Vol 201(2006),pp.4068-4072.

Google Scholar

[8] Moulder J F, Stickle W F, Sobol P E, et al. Minnesota: Perkin-Elmer Corporation,1992.

Google Scholar

[9] SHI Xin-wei, LI Chun-ming, QIU Wang-qi, LIU Zheng-yi: The Chinese Journal of Nonferrous Metals, Vol 16(2006),pp.1228-1232.

Google Scholar

[10] P Hones, R. Sanjines, F. Levy: Vac. Sci. Technol. A, Vol 17(1999), pp.1024-1030.

Google Scholar
