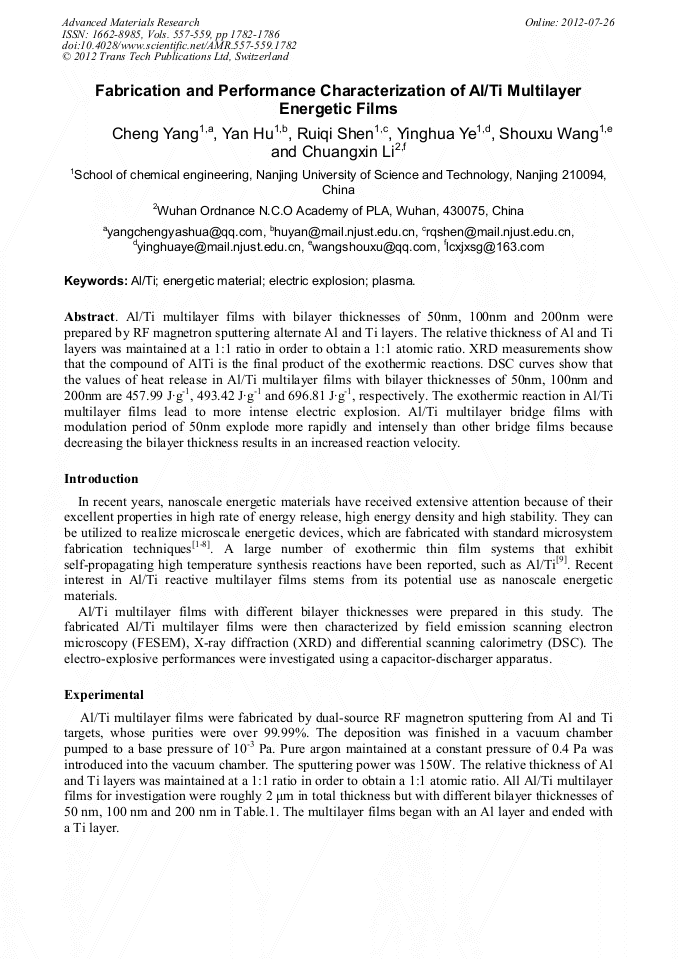

Fabrication and Performance Characterization of Al/Ti Multilayer Energetic Films

Abstract:

Al/Ti multilayer films with bilayer thicknesses of 50nm, 100nm and 200nm were prepared by RF magnetron sputtering alternate Al and Ti layers. The relative thickness of Al and Ti layers was maintained at a 1:1 ratio in order to obtain a 1:1 atomic ratio. XRD measurements show that the compound of AlTi is the final product of the exothermic reactions. DSC curves show that the values of heat release in Al/Ti multilayer films with bilayer thicknesses of 50nm, 100nm and 200nm are 457.99 J∙g^-1, 493.42 J∙g^-1 and 696.81 J∙g^-1, respectively. The exothermic reaction in Al/Ti multilayer films lead to more intense electric explosion. Al/Ti multilayer bridge films with modulation period of 50nm explode more rapidly and intensely than other bridge films because decreasing the bilayer thickness results in an increased reaction velocity.

• Periodical: Advanced Materials Research (Volumes 557-559)
• Pages: 1782-1786
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.557-559.1782
• Online since: July 2012
• Authors: Cheng Yang, Yan Hu, Rui Qi Shen, Ying Hua Ye, Shou Xu Wang, Chuang Xin Li
• Keywords: Al/Ti, Electric Explosion, Energetic Material, Plasma

References

[1] T.A. Baginski, and T.S. Praker, US Patent 6,772,692. (2004)

[2] K.L. Zhang, S.K. Chou, and S.S. Ang: Sens. Acturators A Vol. 122 (2005), p.113

[3] C. Rossi, K. Zhang, D. Esteve, P. Alphonse, and P. Tailhades: J. Microelectromech. Syst. Vol. 16 (2007), p.919

[4] S. Tanaka, and K. Kondo: Sens. Actuators A Vol. 144 (2008), p.361

[5] K. Zhang, C. Rossi, and M. Petrantoni: J. Microelectromech. Syst. Vol. 17 (2008), p.832

[6] K. Zhang, C. Rossi, and P. Alphonse: Appl. Phys. A Vol. 94 (2009), p.957

[7] K. Zhang, Y. Yang, and E.Y.B Pun: Nanotechnology Vol. 21 (2010), p.235602

[8] C.J. Morris, B. Mary, and E. Zakar: Journal of Physics and Chemistry of Solids Vol. 71 (2010), p.84

[9] A.S. Rogachev, A.E. Grigoryan, E.V. Illarionova, I.G. Kanel, A.G. Merzhanov, A.N. Nosyrev, N.V. Sachkova, V.I. Khvesyuk, and P.A. Tsygankov, Combust., Explos. Shock Waves Vol. 40 (2004), p.166

DOI: 10.1023/b:cesw.0000020138.58228.65

[10] A.J. Gavens, D.Van Heerden, A.B. Mann, M.E. Reiss, and T.P. Weihs: Journal of Applied Physics Vol. 87 (2000), p.1255

[11] T. Novoselova, S. Celotto, R. Morgan, and P. Fox: Journal of Alloys and Compounds Vol. 436 (2007), p.69

[12] T. Namazu, H. Takemoto, H. Fujita, Y. Nagai, and S. Inoue, IEEE International Conference on MEMS, Istanbul, Turkey, pp.286-289, 2006.
