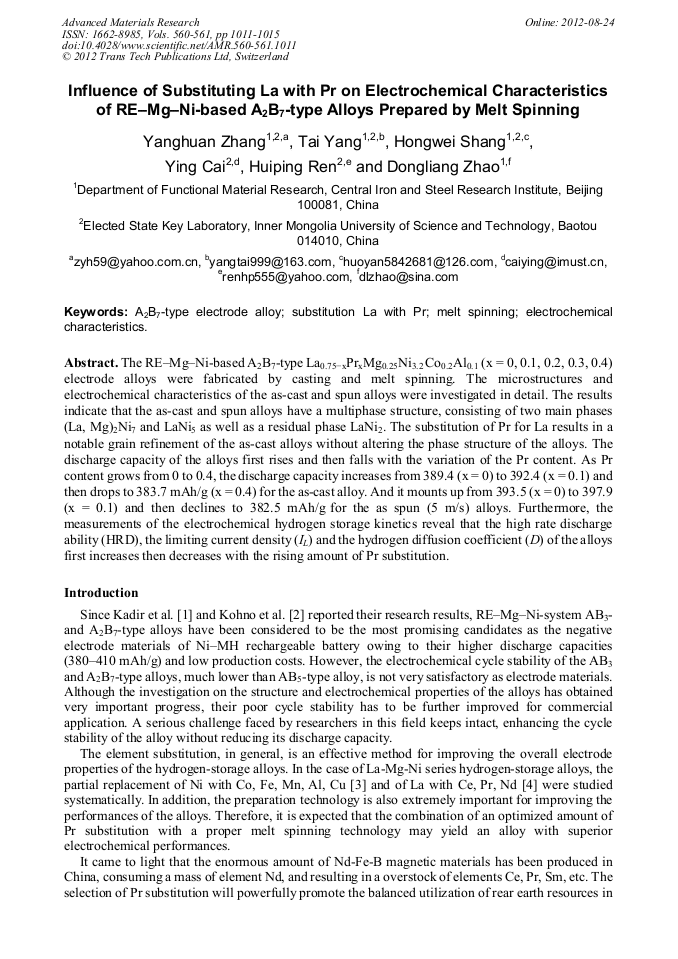

Influence of Substituting La with Pr on Electrochemical Characteristics of RE–Mg–Ni-Based A₂B₇-Type Alloys Prepared by Melt Spinning

Abstract:

The RE–Mg–Ni-based A2B7-type La0.75−xPrxMg0.25Ni3.2 Co0.2Al0.1 (x = 0, 0.1, 0.2, 0.3, 0.4) electrode alloys were fabricated by casting and melt spinning. The microstructures and electrochemical characteristics of the as-cast and spun alloys were investigated in detail. The results indicate that the as-cast and spun alloys have a multiphase structure, consisting of two main phases (La, Mg)2Ni7 and LaNi5 as well as a residual phase LaNi2. The substitution of Pr for La results in a notable grain refinement of the as-cast alloys without altering the phase structure of the alloys. The discharge capacity of the alloys first rises and then falls with the variation of the Pr content. As Pr content grows from 0 to 0.4, the discharge capacity increases from 389.4 (x = 0) to 392.4 (x = 0.1) and then drops to 383.7 mAh/g (x = 0.4) for the as-cast alloy. And it mounts up from 393.5 (x = 0) to 397.9 (x = 0.1) and then declines to 382.5 mAh/g for the as spun (5 m/s) alloys. Furthermore, the measurements of the electrochemical hydrogen storage kinetics reveal that the high rate discharge ability (HRD), the limiting current density (IL) and the hydrogen diffusion coefficient (D) of the alloys first increases then decreases with the rising amount of Pr substitution.

• Periodical: Advanced Materials Research (Volumes 560-561)
• Pages: 1011-1015
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.560-561.1011
• Online since: August 2012
• Authors: Yang Huan Zhang, Tai Yang, Hong Wei Shang, Ying Cai, Hui Ping Ren, Dong Liang Zhao
• Keywords: A₂B₇-Type Electrode Alloy, Electrochemical Characteristics, Melt Spinning, Substitution La with Pr

References

[1] K. Kadir, T. Sakai, and I. Uehara, RMg2Ni9 (R = La, Ce, Pr, Nd, Sm and Gd) built from MgNi2 Laves-type layers alternating with AB5 layers, J. Alloys Compd. 257 (1997) 115-121.

DOI: 10.1016/s0925-8388(96)03132-5

[2] T. Kohno, H. Yoshida, F. Kawashima, T. Inaba, I. Sakai, M. Yamamoto, and M. Kanda, Hydrogen storage properties of new ternary system alloys: La2MgNi9, La5Mg2Ni23, La3MgNi14, J. Alloys Compd. 311 (2000) L5-L7.

DOI: 10.1016/s0925-8388(00)01119-1

[3] Y.F. Liu, H.G. Pan, M.X. Gao, R. Li, and Y.Q. Lei, Effect of Co content on the structural and electrochemical properties of the La0. 7Mg0. 3Ni3. 4-x Mn0. 1Cox hydride alloys II. Electrochemical properties, J. Alloys Compd. 376 (2004) 304-313.

DOI: 10.1016/j.jallcom.2004.01.010

[4] X.Q. Shen, Y.G. Chen, M.D. Tao, C.L. Wu, G. Deng, and Z.Z. Kang, The structure and 233 K electrochemical properties of La0. 8–x NdxMg0. 2Ni3. 1Co0. 25Al0. 15 (x = 0. 0–0. 4) hydrogen storage alloys, Int. J. Hydrogen Energy. 34 (2009) 2661-2669.

[5] H.G. Pan, Q.W. Jin, M.X. Gao, Y.F. Liu, R. Li, and Y.Q. Lei, Effect of the cerium content on the structural and electrochemical properties of the La0. 7−xCexMg0. 3Ni2. 875Mn0. 1Co0. 525 (x = 0–0. 5) hydrogen storage alloys, J. Alloys Compd. 373 (2004).

DOI: 10.1016/j.jallcom.2003.10.041

[6] Y.H. Zhang, B.W. Li, H.P. Ren, S.H. Guo, Y. Qi , and X.L. Wang, Structures and electrochemical cycle stability of La0. 75−xPrxMg0. 25Ni3. 2 Co0. 2Al0. 1 (x = 0–0. 4) alloys prepared by melt spinning, Mater. Chem. Phys. 118 (2009) 129-134.

DOI: 10.1016/j.matchemphys.2009.07.016

[7] Y.F. Liu, H.G. Pan, M.X. Gao, Y.F. Zhu, H.W. Ge, S.Q. Li, and Y.Q. Lei, Investigation on the structure and electronchemical properties of the Rare earth–Mg-based hydrogen storage electrode alloys, Acta Metall. Sinica. 39 (2003) 666-672.

[8] G. Zhong, B.N. Popov, and R.E. White, Electrochemical determination of the diffusion coefficient of hydrogen through an LaNi4. 25Al0. 75 electrode in alkaline aqueous solution, J. Electrochem. Soc. 142 (1995) 2695-2698.

DOI: 10.1149/1.2050076

[9] B.V. Ratnakumar, C. Witham, R.C. Bowman, Jr., A. Hightower, and B. Fultz, Electrochemical studies on LaNi5–xSnx metal hydride alloys, J. Electrochem. Soc. 143 (1996) 2578-2584.

DOI: 10.1149/1.1837050
