Dephosphorization Ability Estimation of Fe_tO-Rich Demanganization Slag during Hot Metal Pre-Treatment

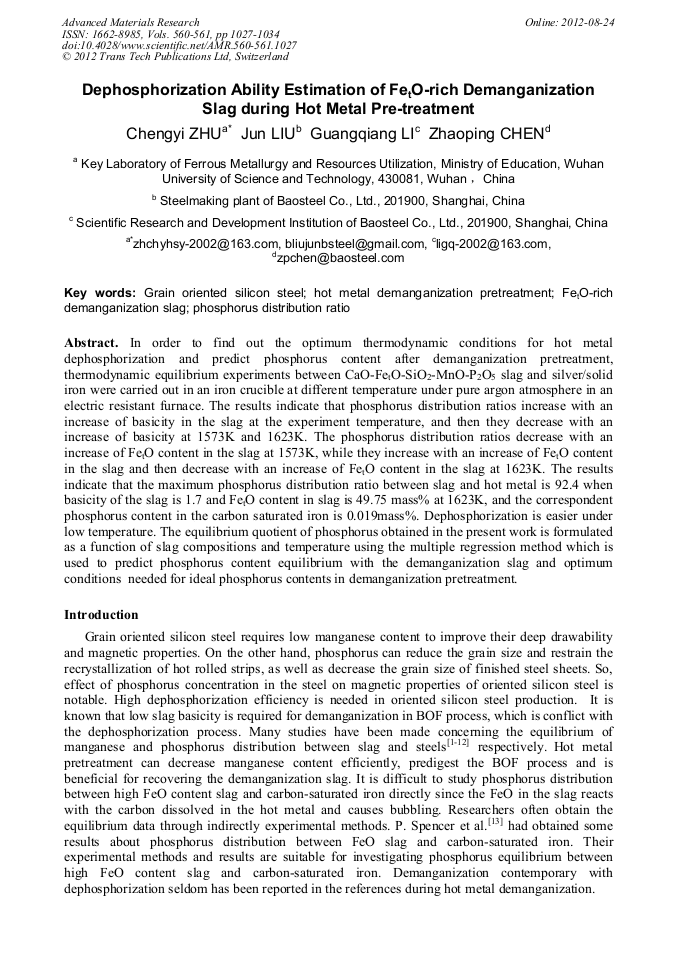

Abstract:

In order to find out the optimum thermodynamic conditions for hot metal dephosphorization and predict phosphorus content after demanganization pretreatment, thermodynamic equilibrium experiments between CaO-FetO-SiO2-MnO-P2O5 slag and silver/solid iron were carried out in an iron crucible at different temperature under pure argon atmosphere in an electric resistant furnace. The results indicate that phosphorus distribution ratios increase with an increase of basicity in the slag at the experiment temperature, and then they decrease with an increase of basicity at 1573K and 1623K. The phosphorus distribution ratios decrease with an increase of FetO content in the slag at 1573K, while they increase with an increase of FetO content in the slag and then decrease with an increase of FetO content in the slag at 1623K. The results indicate that the maximum phosphorus distribution ratio between slag and hot metal is 92.4 when basicity of the slag is 1.7 and FetO content in slag is 49.75 mass% at 1623K, and the correspondent phosphorus content in the carbon saturated iron is 0.019mass%. Dephosphorization is easier under low temperature. The equilibrium quotient of phosphorus obtained in the present work is formulated as a function of slag compositions and temperature using the multiple regression method which is used to predict phosphorus content equilibrium with the demanganization slag and optimum conditions needed for ideal phosphorus contents in demanganization pretreatment.

• Periodical: Advanced Materials Research (Volumes 560-561)
• Pages: 1027-1034
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.560-561.1027
• Online since: August 2012
• Authors: Cheng Yi Zhu, Jun Liu, Guang Qiang Li, Zhao Ping Chen
• Keywords: Fe_tO-Rich Demanganization Slag, Grain Oriented Silicon Steel, Hot Metal Demanganization Pretreatment, Phosphorus Distribution Ratio

References

[1] H. Suito, R. Inoue, M. Takada, Phosphorus distribution between liquid iron and MgO staturated slags of the system CaO-MgO-FexO-SiO2, Trans. ISIJ, 21(1981), 250-259.

DOI: 10.2355/isijinternational1966.21.250

[2] T. B. Winkler, J. Chipman, Equilibrium study of the distribution of phosphorus, Trans. AIME. 67(1946), 111-113.

[3] H. Suito, R. Inoue, Manganese distribution between molten iron and MgO- saturated CaO-MgO-FexO-SiO2 slags, Trans. ISIJ. 24(1984), 257-265.

DOI: 10.2355/isijinternational1966.24.257

[4] E. T. Turkdogan, BOF Steelmaking, R.D. Pehlke, W. F. Porter, R. F. Urban, J. M. Gaines, eds., Iron Steel Soc. AIME, New York, 1975.

[5] E. T. Turkdogan: Physical Chemistry of High Temperature Technology, Academic Press, New York, 1980.

[6] A. T. Morales, R. J. Fruehan, Thermodynamics of MnO, FetO and phosphorus in steelmaking slags with high MnO contents, Metall. and Mater. Trans. B. 28B(1997), 1111-1118.

DOI: 10.1007/s11663-997-0067-6

[7] H. Suito, R. Inoue. Thermodynamic assessment of manganese distribution in hot metal and steel, ISIJ Int.. 35 (1995), 266-271.

DOI: 10.2355/isijinternational.35.266

[8] A. Sobandi, H. G. Katayama and T. Momono.. Oxidation-reduction slags equilibrium of manganese in CaO-MntO-SiO2 . The Iron and Steel Institute of Japan International. 38 (1998): 9-15.

DOI: 10.2355/isijinternational.38.9

[9] S. M. Jung, Equilibria of Manganese and Sulfur between Liquid Iron and CaO-SiO2-FetO-MgO-MnO Slags Saturated with 2CaO·SiO2 and MgO, ISIJ Int.. 43 (2003), 216-223.

DOI: 10.2355/isijinternational.43.216

[10] R. Inoue, H. Suito, Phosphorous Partition between 2CaO·SiO2 Particles and CaO-SiO2-FetO Slag, ISIJ Int.. 46(2006) , 174-179.

DOI: 10.2355/isijinternational.46.174

[11] A. Sobandi, H. G. Katayama and T. Momono. Activities of phosphorus oxide in CaO-MnO-SiO2-P2O5(-MgO,FetO) slag. ISIJ Int.. 38 (1998),781-788.

DOI: 10.2355/isijinternational.38.781

[12] R. S. Simeonov, N. Sano, Manganese equilibrium distribution between carbon-saturated iron melts and lime based slags containing MnO, BaO, and Na2O. Trans. Iron Steel Inst. Jpn.. 25(1985), 1116 -1923.

DOI: 10.2355/isijinternational1966.25.1116

[13] P. Spencer, O. Kubaschewski, Thermodynamic assessment of the iron-phosphorus system, Arch Eisenhuttenwes. 49(1987), 225.

[14] O. Knacke, O. Kubaschewski, K. Heselmann. Thermochemical properties of inorganic substance (2nd Ed.), Springer-verlag, Berlin, 1991, 1503-1507.

[15] K. Yamada, E. Kato, Mass spectrometric determination of activities of phosphorus in liquid Fe-P-Si, Al, Ti, V, Cr, Co, Ni, Nb, and Mo alloys, Tetse-to-Hagane. 65(1979), 273-280(in Japanese)

DOI: 10.2355/tetsutohagane1955.65.2_273

[16] F. Tsukihashi, M. Nakamura, T. Orimoto, et al., Thermodynamics of phosphorus for the CaO-FetO-CaF2-SiO2 and CaO-Al2O3 systems, Tetsu-to-Hagane, 76(1990), 1664-1671(in Japanese)

[17] A. Verme, P. Lundh, Distribution of phosphorus between some CaO-FeO-SiO2-P2O5(10%) slags and C-saturated liquid iron at 1300 centigrade. Scand. J. Metall., 16(1987), 33-41

[18] J. Im, K. Morita, Nobuo Sano, Phosphorus distribution ratios between CaO-SiO2-FetO slags and carbon-saturated iron at 1573K, ISIJ Int.. 36(1996), 517-521

DOI: 10.2355/isijinternational.36.517

[19] C.Y. Zhu, G. Q. Li, Z. P. Chen, et al., Manganese Distribution Equilibrium between CaO-FetO-SiO2-MnO-P2O5-(Al2O3) Slags and Carbon Saturated Iron, ISIJ Int.. 48(2008), 123-129

DOI: 10.2355/isijinternational.48.123

[20] C. Y. Zhu: Study on Thermodynamics and Kinetics of manganese content control in low manganese steelmaking． Wuhan: Wuhan University of Science and Technology, (2010), 37-39 (in Chinese)

[21] S. Ban-Ya, Mathematical expression of slag-metal reaction in steelmaking process by quadratic formalism based on the regular solution model, ISIJ International, 1993, 33 (1): 2-11.

DOI: 10.2355/isijinternational.33.2

[22] Y. Ogawa, M. Yano, M. Matsuo, et al., Phosphorus distribution between CaO-containing slag and metal during hot metal pretreatment in converter, Current Advance in Materials and Processes-ISIJ Int.. 6(1993), 1074
